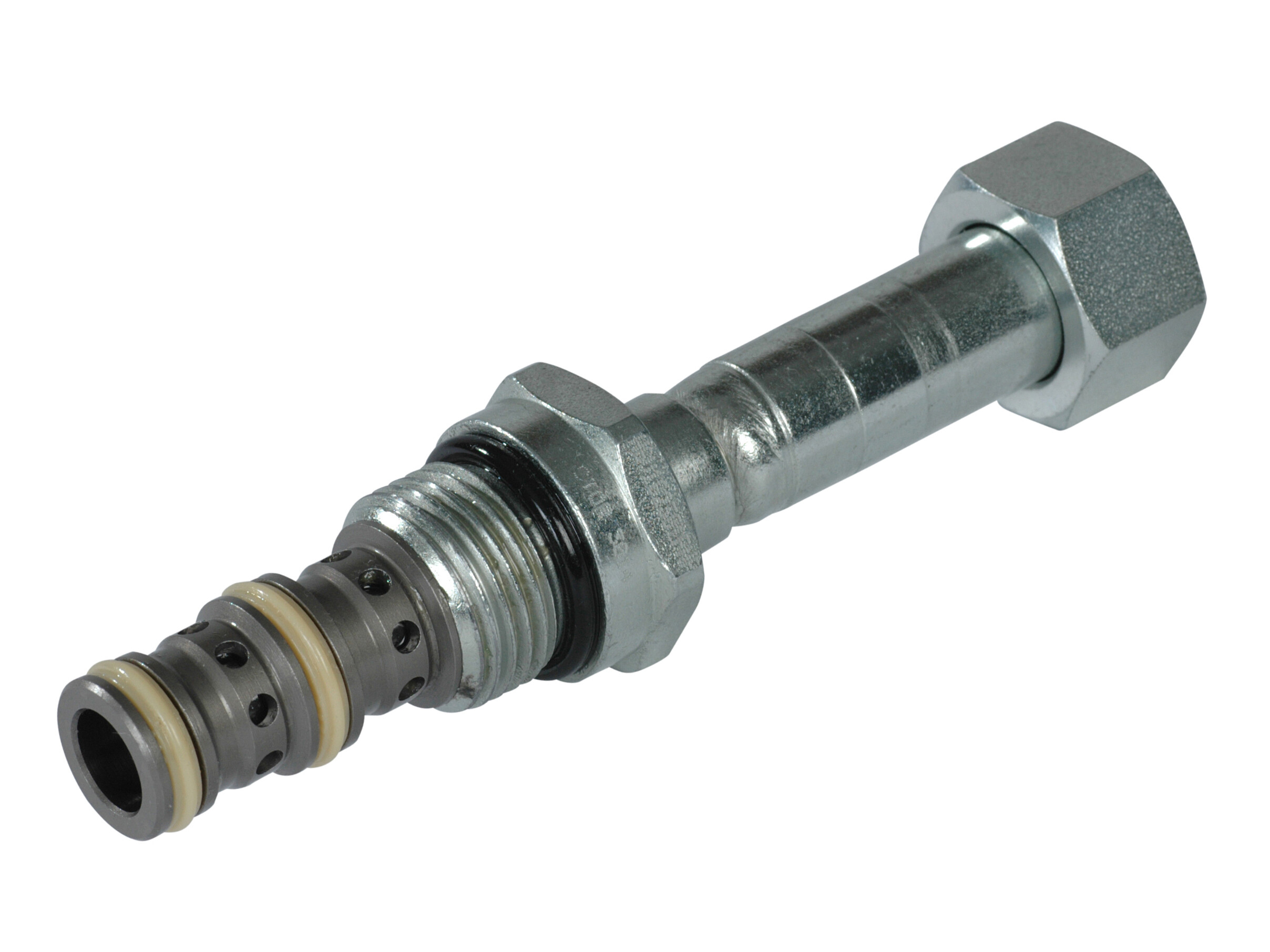

Magn. vent. 3/2 30l/m HSV10-23-01-00-00-PN-P-00

Magn. vent. 3/2 30l/m HSV10-23-01-00-00-PN-P-00

Magn. vent. 3/2 30l/m HSV10-23-01-00-00-PN-P-00

Varenummer:
11146528
Pakke str.:
0 stk
Min. bestillingsenhed er:
1 stk
Spole H16-12D-29W-DE 12VDC 29W
Partnumber: 11039516
Spole H16-24D-29W-DE 24VDC 29W
Partnumber: 11039517
Coil H16-12D-29W-DE-DB
Partnumber: 11039518
Coil H16-24D-29W-DE-DB
Partnumber: 11039519
HOUSING, SDC10-3-SE3B (3/8) SDC10-3-SE3B (3/8)
Partnumber: 922514310
HOUSING, SDC10-3-SE4B (1/2) SDC10-3-SE4B (1/2)
Partnumber: 922514410
Housing SDC10-3--SI3B (3/8)
Partnumber: 922514510
Housing SDC10-3--SI4B (1/2)
Partnumber: 922514610
Activation
Magnetspole
Brand Name
Danfoss
Cavity
SDC10-3
Contamination level max.
20/18/14 - ISO 4406
Filter built-in
Nej
Flowrate nominal LMin
30 lpm
Manual operated
Nej
Model code
HSV10-23-01-00-00-PN-P-00

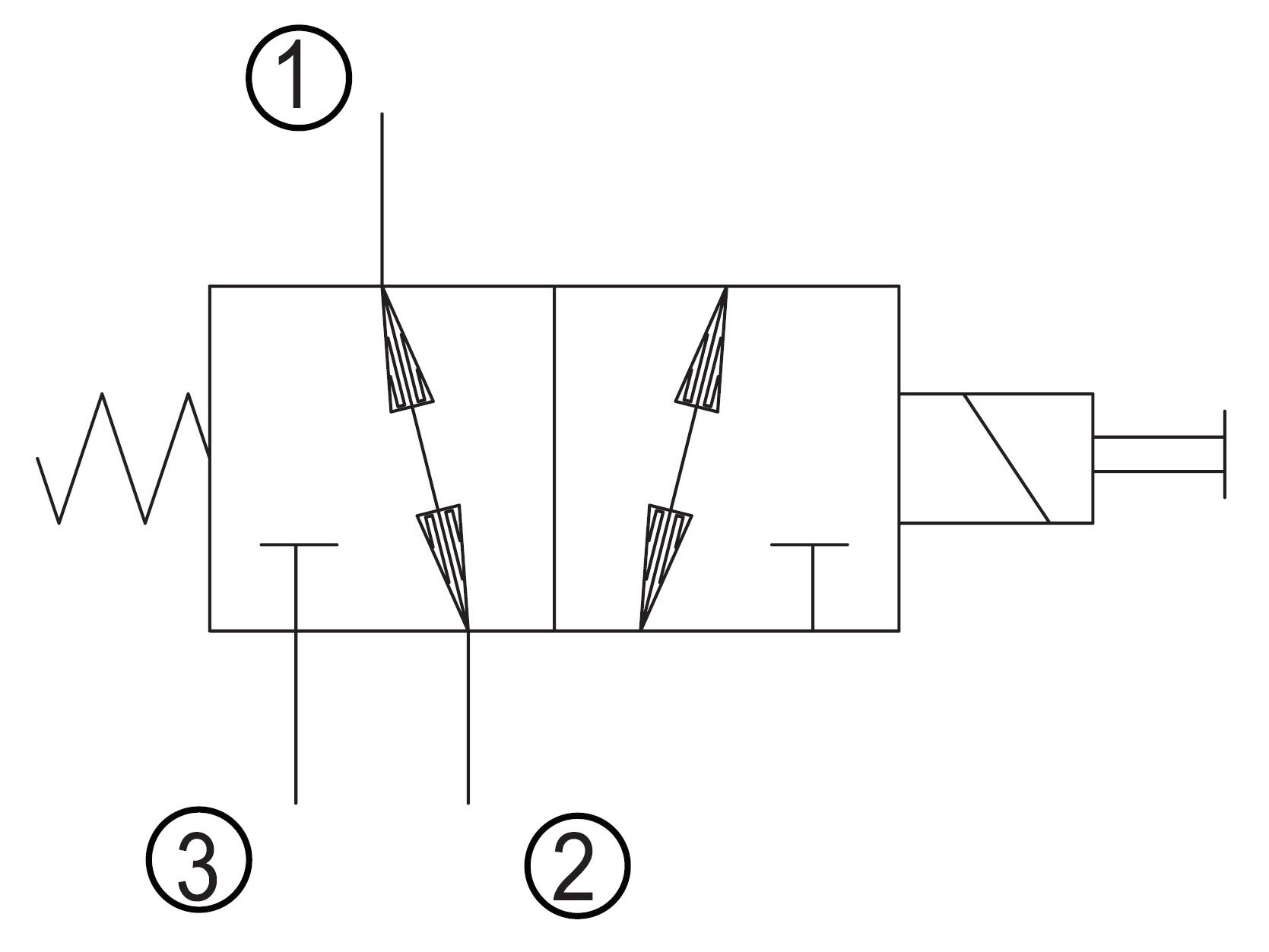

Number of ways/positions
3/2
Oil viscocity recommended
12 - 54 cSt
Pressure max.
350 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
45 - 50 Nm
Package size
0 stk
Barcode
5704334468974
Gross weight
0,17 Kg
Net weight
0,17 Kg
Country of origin
ITA
Intrastat code
84812010

Magn. vent. 3/2 30l/m HSV10-23-01-00-00-PN-P-00

Produkt datablad
