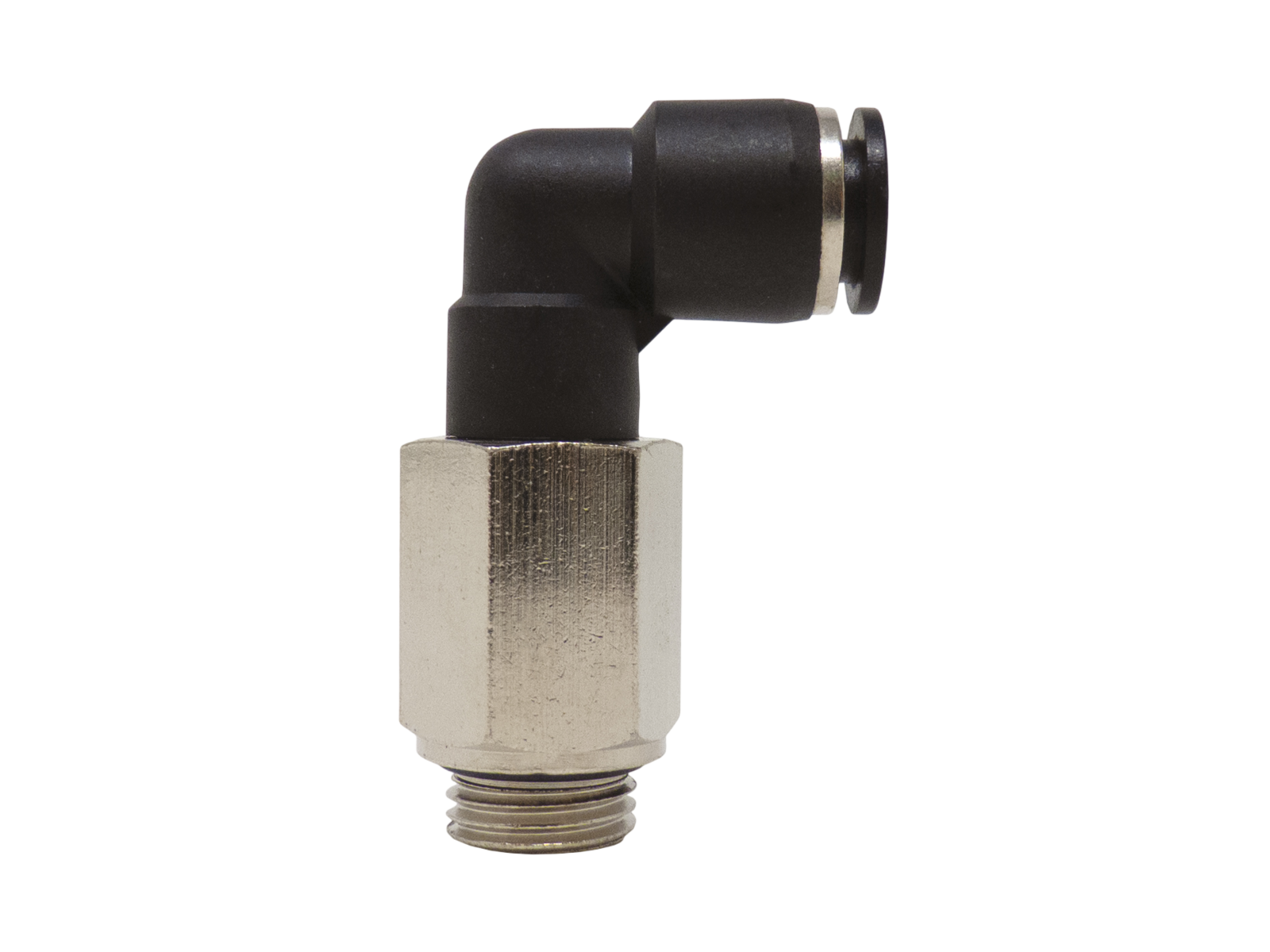

Vridbar vinkel 90 - Ø mm Utv-G

C01540405 - Adapter 90 Vridbar Ø4mm Utv-M5 Lång

C01540618 - Adapter 90 Vridbar Ø6mm Utv-G1/8 Lång

C01540628 - Adapter 90 Vridbar Ø6mm Utv-G1/4 Lång

C01540818 - Adapter 90 Vridbar Ø8mm Utv-G1/8 Lång

C01540828 - Adapter 90 Vridbar Ø8mm Utv-G1/4 Lång

SELECT VARIANT

Partnumber	Description	Pressure max.	Thread	Vacuum max.
C01540405	C01540405 - Adapter 90 Vridbar Ø4mm Utv-M5 Lång	16 bar
C01540618	C01540618 - Adapter 90 Vridbar Ø6mm Utv-G1/8 Lång	16 bar	G 1/8 BSP	-0.9 bar
C01540628	C01540628 - Adapter 90 Vridbar Ø6mm Utv-G1/4 Lång	16 bar	G 1/4 BSP	-0.9 bar
C01540818	C01540818 - Adapter 90 Vridbar Ø8mm Utv-G1/8 Lång	16 bar	G 1/8 BSP	-0.9 bar
C01540828	C01540828 - Adapter 90 Vridbar Ø8mm Utv-G1/4 Lång	16 bar	G 1/4 BSP	-0.9 bar

Angle

Area of use

Tryckluft, Vacuum

Brand Name

Tierre

Material

Mässing, NBR, PBT-plast, POM(Acetal), Rostfritt stål, Zink

Pressure max.

Sealing material

NBR

Temperature max.

+80

Temperature min.

-20

Tube Tollerance

ØD1 ± 0,1
