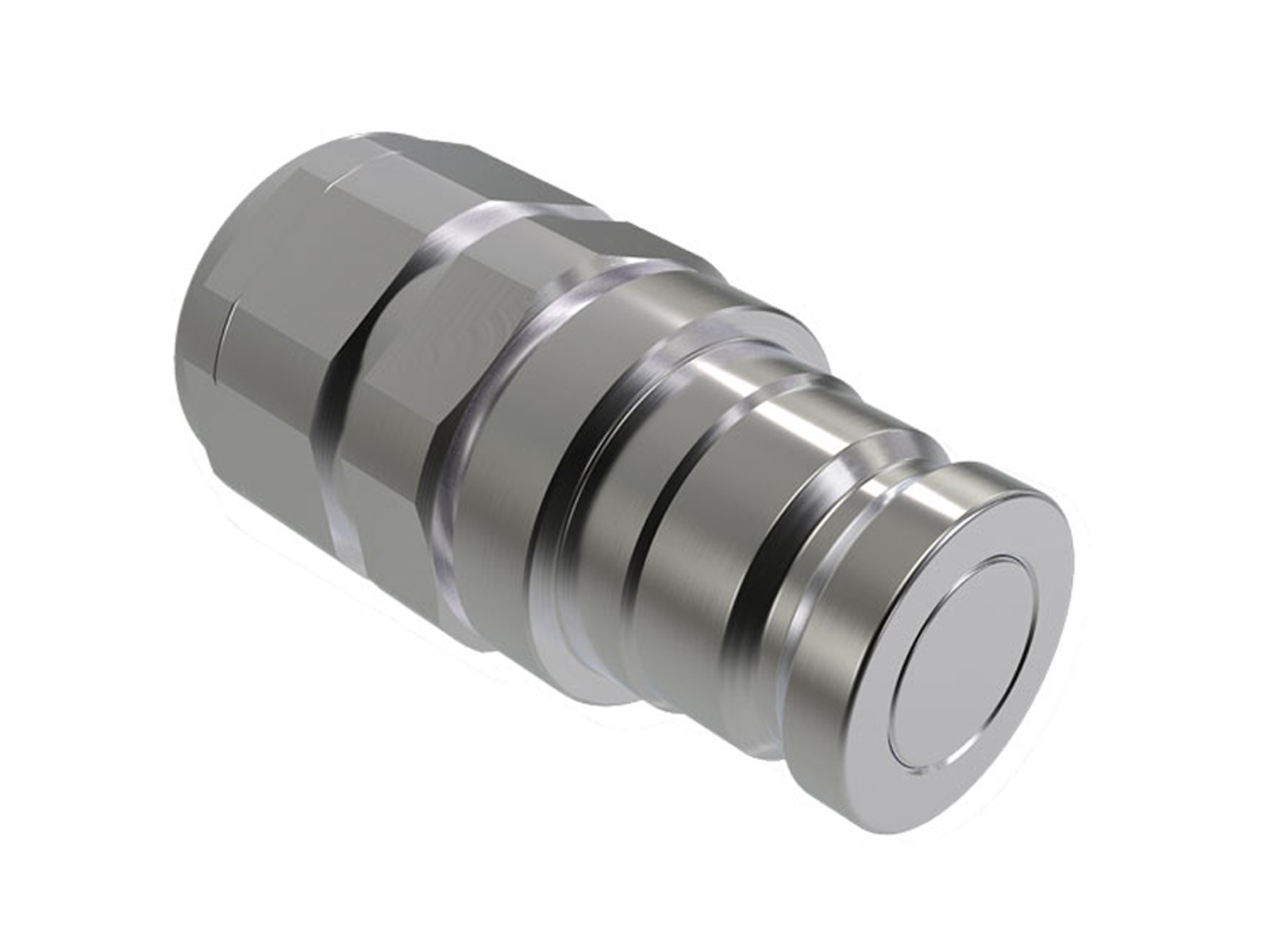

Snabbkoppling Hane OGF

Snabbkoppling Hane DN04 Inv-1/4 NPT typ Snap-tite 71

Snabbkoppling Hane DN06 Inv-3/8 NPT typ Snap-tite 71

Snabbkoppling Hane DN08 Inv-1/2 NPT typ Snap-tite 71

Snabbkoppling Hane DN12 Inv-3/4 NPT typ Snap-tite 71

Snabbkoppling Hane DN16 Inv-1 NPT typ Snap-tite 71

SELECT VARIANT

Partnumber	Description	Flow rate nominal LMin	Pressure max.	Thread inner	Size
OGF0414NPTM	Snabbkoppling Hane DN04 Inv-1/4 NPT typ Snap-tite 71	8 lpm	530 bar	1/4 "NPTF	1/4 "
OGF0638NPTM	Snabbkoppling Hane DN06 Inv-3/8 NPT typ Snap-tite 71	32 lpm	530 bar	3/8 "NPTF	3/8 "
OGF0812NPTM	Snabbkoppling Hane DN08 Inv-1/2 NPT typ Snap-tite 71	70 lpm	530 bar	1/2 "NPTF	1/2 "
OGF1234NPTM	Snabbkoppling Hane DN12 Inv-3/4 NPT typ Snap-tite 71	120 lpm	460 bar	3/4 "NPTF	3/4 "
OGF161NPTM	Snabbkoppling Hane DN16 Inv-1 NPT typ Snap-tite 71	200 lpm	530 bar	1 "NPTF	1 "

Brand Name

Faster

Material

Stål

Pressure eliminator

Nej

Sealing material

FKM/FPM (Viton®), Polyuretan

Surface treatment

MATE 500 (CrIII)

Temperature max.

+100

Temperature min.

-20
