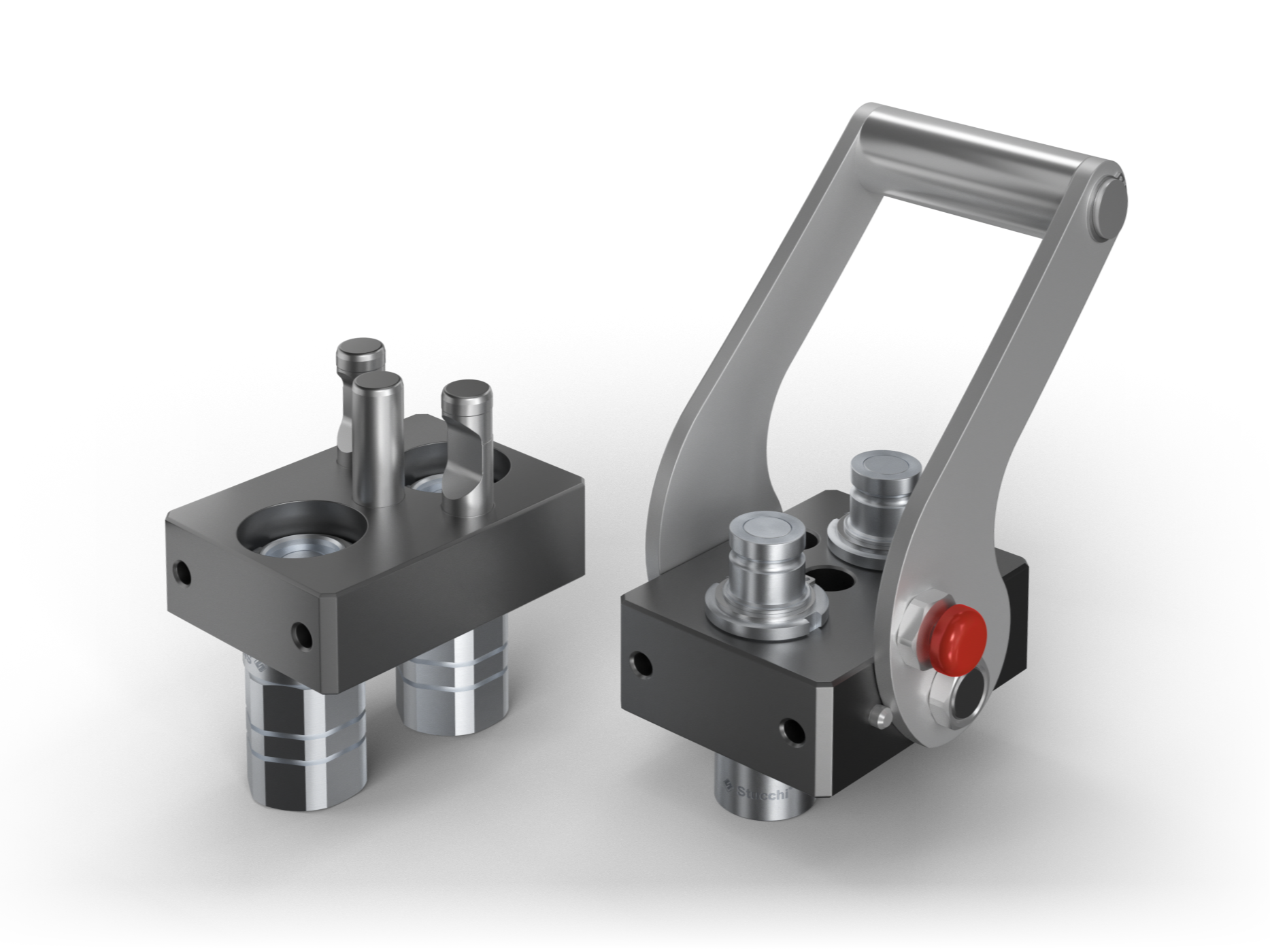

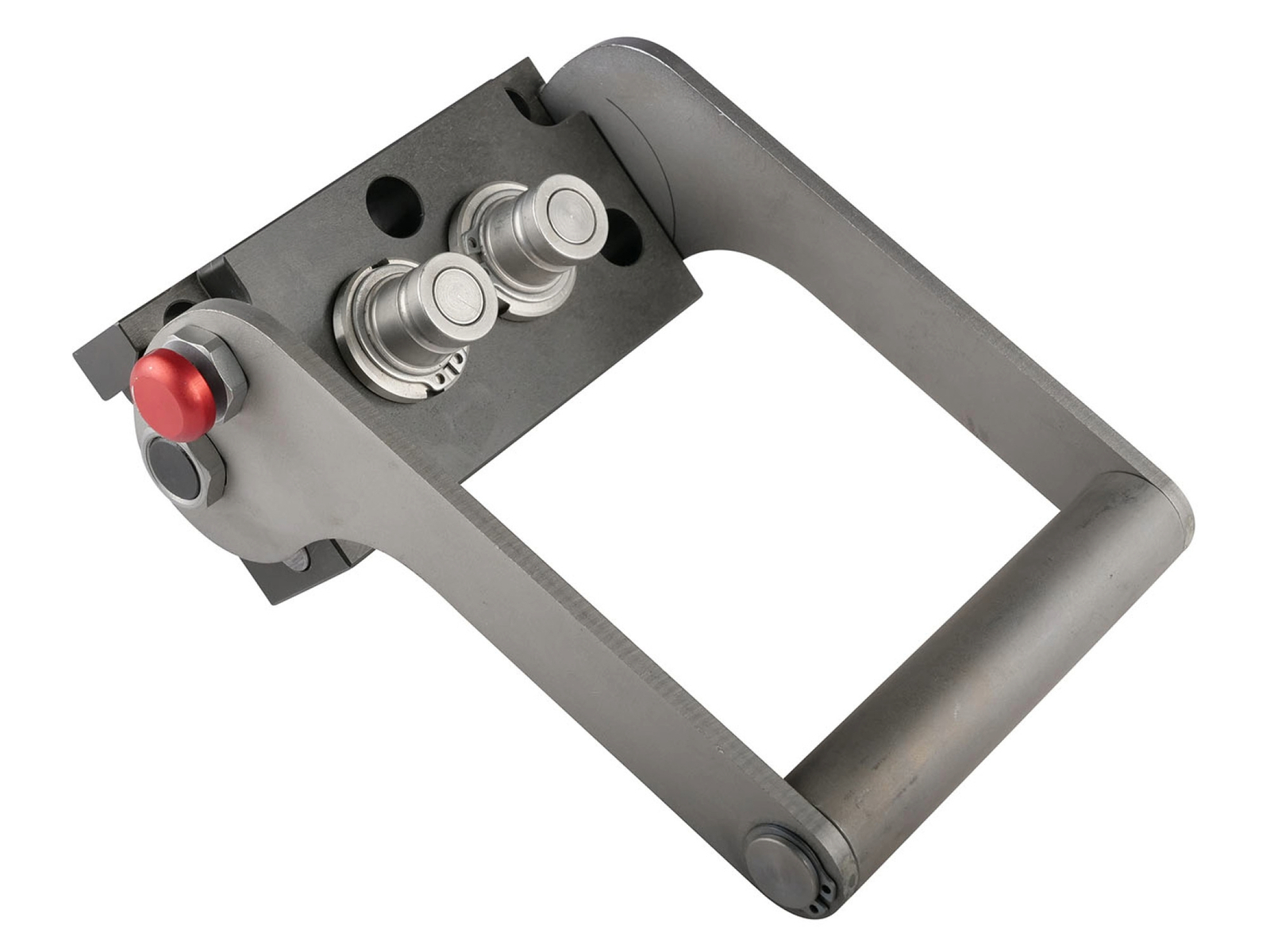

Multikopplingar DP2 FAP9 2x46L/min 350Bar

Multikoppling DP2 2A Komplett 2 FAP9 1/2'' BSP Dammskydd

Multikoppling DP2 2A Hane Fast 2 FAP9 1/2'' BSP

Multikoppling DP2 2A Hona Mobil 2 FAP9 1/2'' BSP

Multikoppling DP2 2A Komplett 2 FAP9 3/8'' BSP Dammskydd

Multikoppling DP2 2A Hane Fast 2 FAP9 3/8'' BSP

Multikoppling DP2 2A Hona Mobil 2 FAP9 3/8'' BSP

SELECT VARIANT

Partnumber	Description	Pressure max.	Flow rate nominal LMin
DP2-2A-1/2	Multikoppling DP2 2A Komplett 2 FAP9 1/2'' BSP Dammskydd	350 bar	46 lpm
DP2-2A-1/2-FIX	Multikoppling DP2 2A Hane Fast 2 FAP9 1/2'' BSP	350 bar	46 lpm
DP2-2A-1/2-MOBIL	Multikoppling DP2 2A Hona Mobil 2 FAP9 1/2'' BSP	350 bar	46 lpm
DP2-2A-3/8	Multikoppling DP2 2A Komplett 2 FAP9 3/8'' BSP Dammskydd	350 bar	46 lpm
DP2-2A-3/8-FIX	Multikoppling DP2 2A Hane Fast 2 FAP9 3/8'' BSP	350 bar	46 lpm
DP2-2A-3/8-MOBIL	Multikoppling DP2 2A Hona Mobil 2 FAP9 3/8'' BSP	350 bar	46 lpm

Area of use

Hydraulolja

Brand Name

Stucchi

Corrosion resistance

720 hours salt spray DIN EN ISO 9227

Flow rate nominal LMin

Number of connectors

Pressure burst min.

1200

Pressure max.

350

Pressurized connection

Tillåten

Sealing material

NBR

Size

3/8

Surface treatment

Zink-Nickel

Temperature max.

+100

Temperature min.

-20
