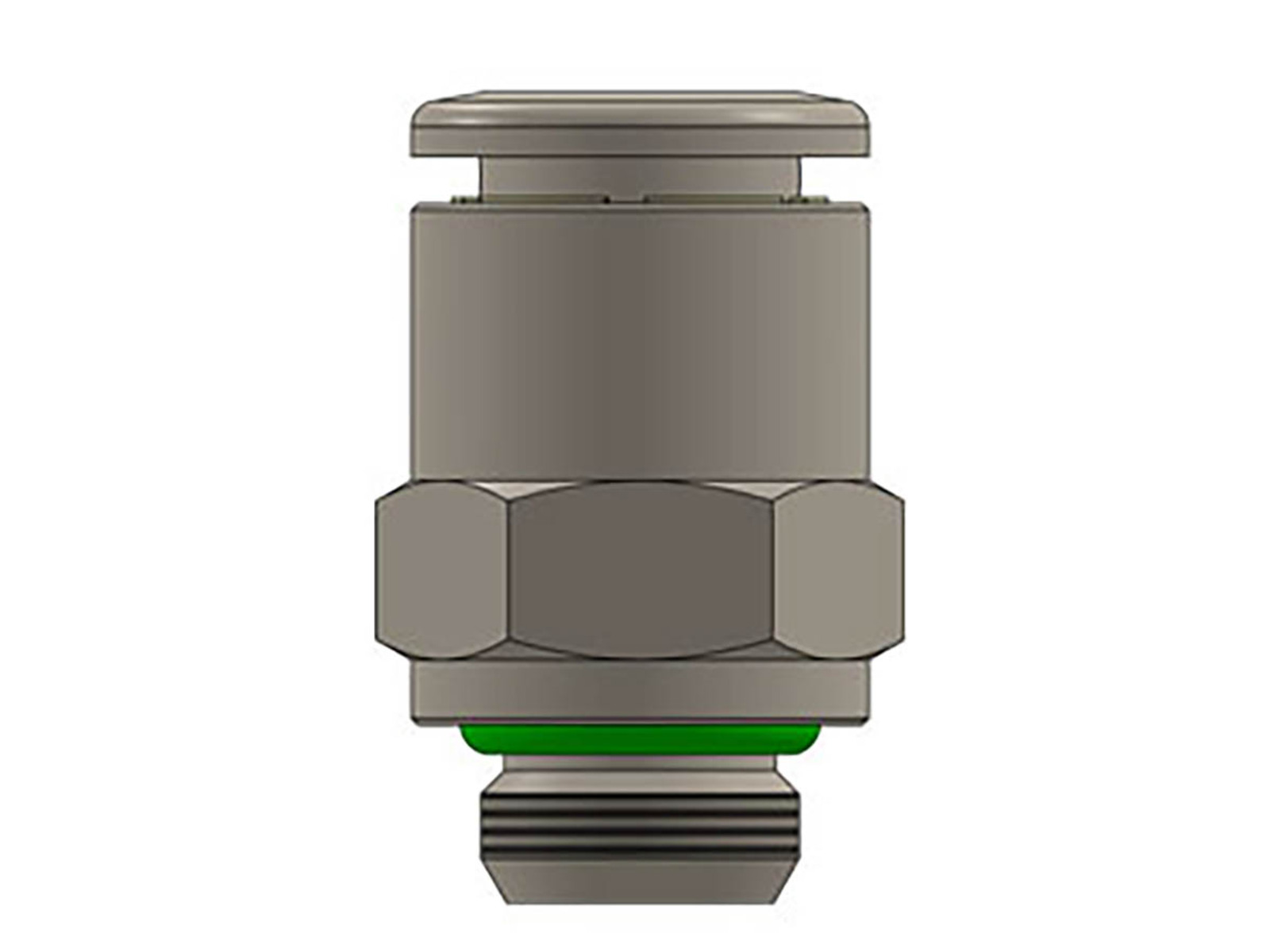

Rak instickskoppling mm rör till BSPP med viton oring

SELECT VARIANT

Partnumber	Description	Thread	Pressure max.
HFRC06G02	Adapter Rak Ø6 mm Utv-G1/4'' FDA Viton	G 1/4 BSP	20 bar
HFRC10G02	Adapter Rak Ø10 mm Utv-G1/4'' FDA Viton	G 1/4 BSP	20 bar
HFRC12G02	Adapter Rak Ø12 mm Utv-G1/4'' FDA Viton	G 1/4 BSP	20 bar
HFRC12G03	Adapter Rak Ø12 mm Utv-G3/8'' FDA Viton	G 3/8 BSP	20 bar

Angle

Area of use

Gas och vätskor kompatibla med ingående material, Livsmedel, Tryckluft, Vacuum

Brand Name

Tierre

Corrosion resistance

96 hours ASS

Material

Mässing, Rostfritt stål

Material quality

CW614L/CW617L

Pressure max.

REACH compliant

RoHs compliant

Sealing material

FKM/FPM (Viton®)

Series

HFR

Standard

Silikonfri

Standard EN

EC 1935/2004, ICIM Food

Standard SAE

NSF/ANSI 169

Temperature max.

+150

Temperature min.

-20

Vacuum max.

-0.999
