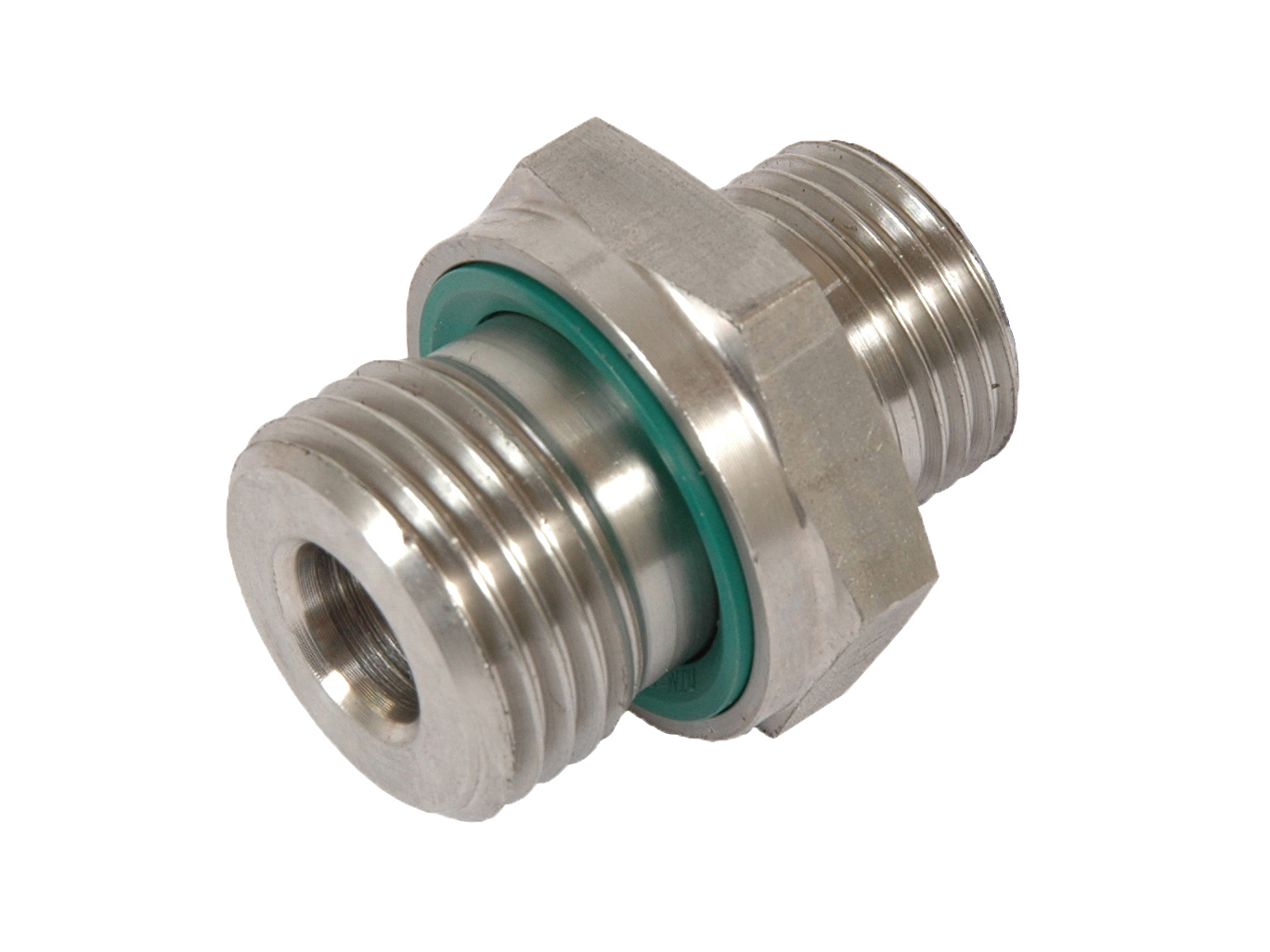

Straight fitting 0° - L-series - DIN male x MM male stud WD seal stainless - A-LMWDX/71 / XGE-LMED-SY

Straight fitting 0° - L-series - DIN male x MM male stud WD seal stainless - A-LMWDX/71 / XGE-LMED-SY

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer metric Pressure max.
XGE06LMED-SY Adapter 06L, M10x1.0 ED, Syrafast 6 mm M10x1, M12x1,5 500 bar
XGE08LMED-SY Adapter 08L M12x1.5 ED Syrafast 8 mm M12x1,5, M14x1,5 500 bar
XGE10LMED-SY Adapter 10L, M14X1.5 ED, Syrafast 10 mm M14x1,5, M16x1,5 315 bar
XGE12LM14ED-SY Adapter 12L-M14x1,5 ED SYRAFAS 12 mm 400 bar
XGE12LM18ED-SY Adapter 12L, M18x1.5 ED, Syrafast 12 mm M18x1,5 400 bar
XGE12LMED-SY Adapter 12L-M16X1.5 ED syrafas 12 mm M16x1,5, M18x1,5 315 bar
XGE15LM22ED-SY Adapter 15L, M22x1.5 ED, Syrafast 15 mm M22x1,5 315 bar
XGE18LMED-SY Adapter 18L, M22x1.5 ED, Syrafast 18 mm M22x1,5, M26x1,5 160 bar
Angle
0
Brand Name
Volz
Material quality
1.4571 / AISI316Ti
Sealing material
FKM/FPM (Viton®)
Series
L
Temperature max.
+200
