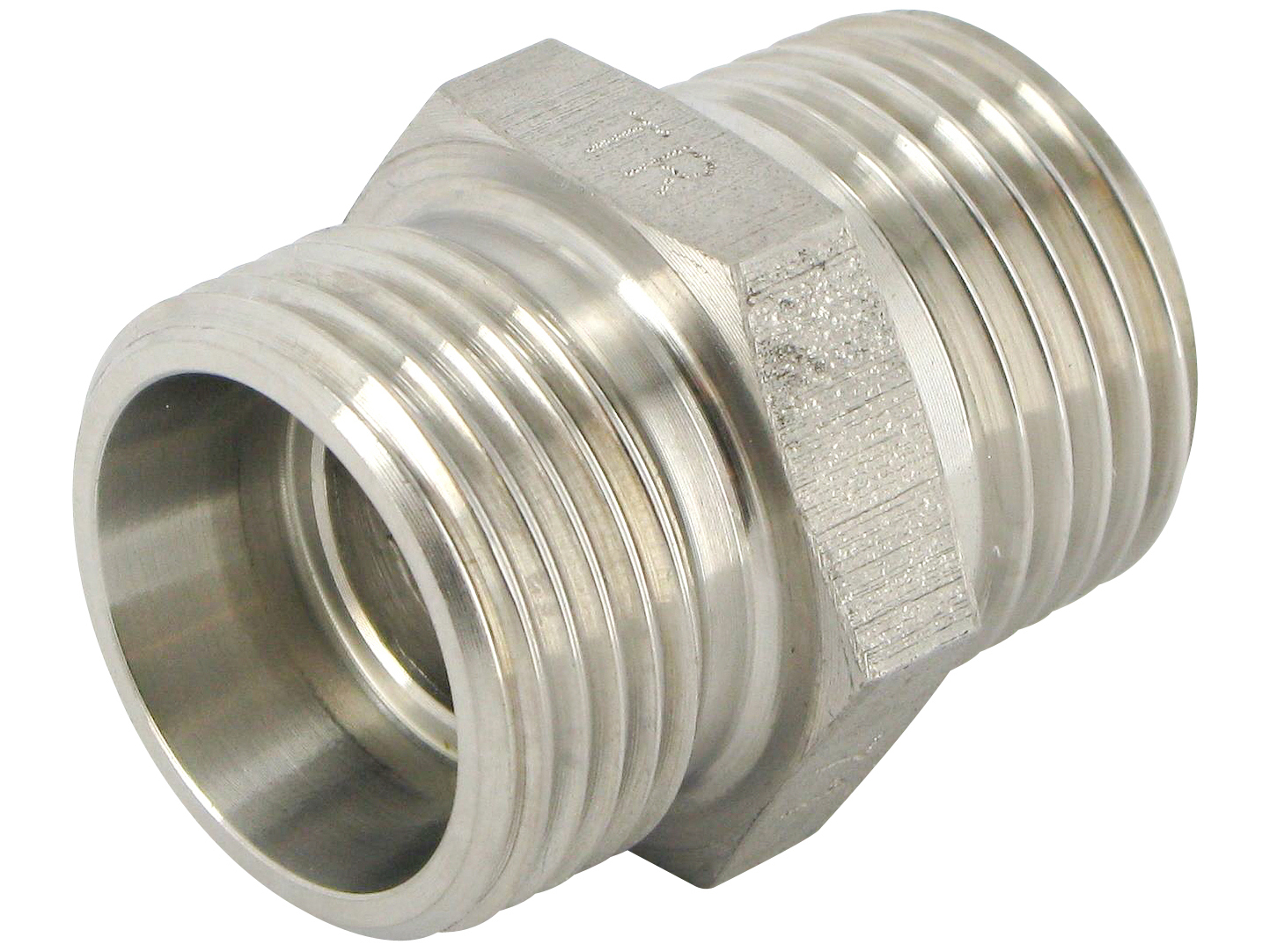

    • Straight fitting 0° - L-series - DIN male x BSPT male stud stainless - A-RLX/71 / XGE-LR-SY

    Straight fitting 0° - L-series - DIN male x BSPT male stud stainless - A-RLX/71 / XGE-LR-SY

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Diameter rör Gänga utv. Tryck max.
    XGE06LKR38-SY Adapter 06L, Utv-R 3/8'', Syrafast 6 mm R 3/8 BSPT 315 bar
    XGE08LKR12-SY Adapter 08L, Utv-R1/2'', Syrafast 8 mm R 1/2 BSPT 315 bar
    XGE08LKR14-SY Adapter 08L, Utv-R1/4'', Syrafast 8 mm R 1/4 BSPT 315 bar
    XGE10LKR12-SY Adapter 10L, Utv-R1/2'' UF, Syrafast 10 mm R 1/2 BSPT 315 bar
    XGE10LKR38-SY Adapter 10L, Utv-R3/8'', Syrafast 10 mm R 3/8 BSPT 315 bar
    XGE12LKR14-SY Adapter 12L, Utv-R1/4'', Syrafast 12 mm R 1/4 BSPT 315 bar
    XGE12LKR34-SY Adapter 12L, Utv-R3/4'', Syrafast 12 mm R 3/4 BSPT 315 bar
    XGE15LKR-SY Adapter 15L, Utv-R1/2'', Syrafast 15 mm R 1/2 BSPT 315 bar
    XGE22LKR-SY Adapter 22L R 3/4'' Syrafast 22 mm R 3/4 BSPT 160 bar
    XGE28LKR-SY Adapter 28L, Utv-R1'', Syrafast 28 mm R 1 BSPT 160 bar
    XGE42LKR-SY Adapter 42L, Utv-R1.1/2'', Syrafast 42 mm R 1.1/2 BSPT 160 bar
    Materialkvalitet
    1.4571 / AISI316Ti
    Märke namn
    Volz
    REACH compliant
    Ja
    RoHs compliant
    Ja
    Serie
    L
    Säkerhetsfaktor
    4
    Temperatur max.
    +400
    Temperatur min.
    -55
    Tillverkningsmaterial
    Syrafast stål
    Vinkel
    0
