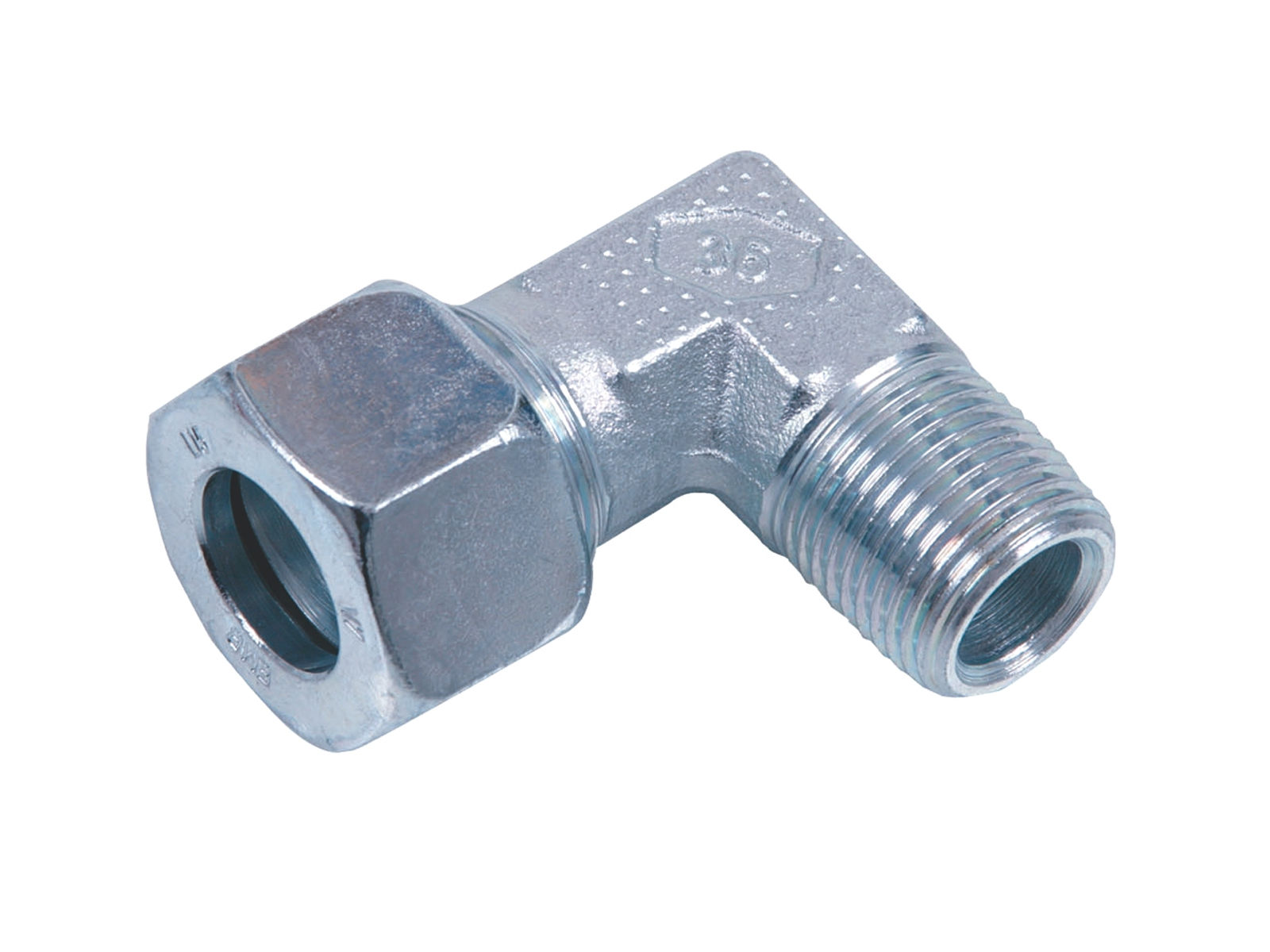

Elbow fitting 90° - LL-series - MM male 24° x BSPT male - B-RLL / WE-LLKR

Skärringskoppling 90, 4LL, Utv-R 1/8''

Skärringskoppling 90 5LL Utv-R 1/8''

Skärringskoppling 90, 6LL, Utv-R 1/8'' UF

Skärringskoppling 90. 6LL Utv-R1/8" Med Fettnippel och huv.

Skärringskoppling 90, 8LL, Utv-R 1/8''

Skärringskoppling 90, 12LL, Utv-R 1/4''

Skärringskoppling 90, 5LL, Utv-R 1/8''

SELECT VARIANT

Partnumber	Description	Diameter pipe	Thread outer	Thread outer metric	Pressure max.
WE04LLKR	Skärringskoppling 90, 4LL, Utv-R 1/8''	4 mm	R 1/8 BSPT	M8x1	100 bar
WE05LLKR	Skärringskoppling 90 5LL Utv-R 1/8''	5 mm	R 1/8 BSPT	M10x1	100 bar
WE06LLKR	Skärringskoppling 90, 6LL, Utv-R 1/8'' UF	6 mm	R 1/8 BSPT	M10x1	100 bar
WE06LLKR-H1	Skärringskoppling 90. 6LL Utv-R1/8" Med Fettnippel och huv.				100 bar
WE08LLKR	Skärringskoppling 90, 8LL, Utv-R 1/8''	8 mm	R 1/8 BSPT	M12x1	100 bar
WE12LLKR	Skärringskoppling 90, 12LL, Utv-R 1/4''	12 mm	R 1/4 BSPT	M16x1	100 bar
XWE05LLKR	Skärringskoppling 90, 5LL, Utv-R 1/8''	5 mm	R 1/8 BSPT		100 bar

Angle

Material

Stål

Pressure max.

100

Safety factor

Series

Temperature max.

+120

Temperature min.

-40
