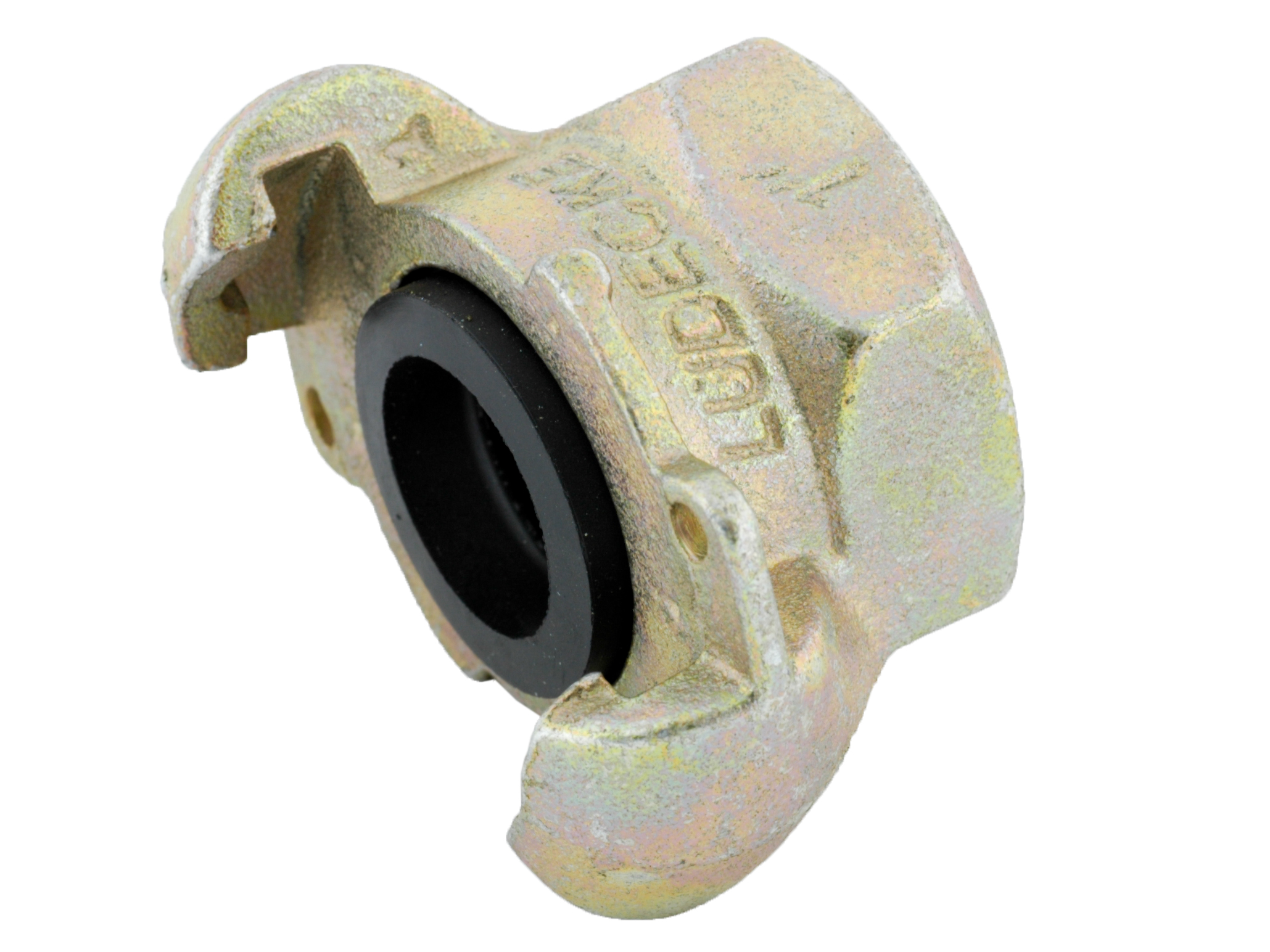

Klokoppling Inv-G, Sprinthål, DIN3489, DIN11024

Klokoppling Inv-G, Sprinthål, DIN3489, DIN11024

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Spigot distance Thread
200GHS-1 200GHS-1 - Klokoppling Inv-G, Sprinthål, DIN3489, DIN11024 10 bar 42 mm G 1 BSP
200GHS-1/2 200GHS-1/2 - Klokoppling Inv-G, Sprinthål, DIN3489, DIN11024 10 bar 42 mm G 1/2 BSP
200GHS-3/4 200GHS-3/4 - Klokoppling Inv-G, Sprinthål, DIN3489, DIN11024 10 bar 42 mm G 3/4 BSP
Brand Name
MCC
Material
Gjutjärn
Pressure max.
10
Sealing material
NBR
Spigot distance
42
Standard DIN
DIN 3489
Surface treatment
Förzinkad, Gul passiverad
Temperature max.
+95
Temperature min.
-40
Thread ISO standard
ISO 228
Width
63
