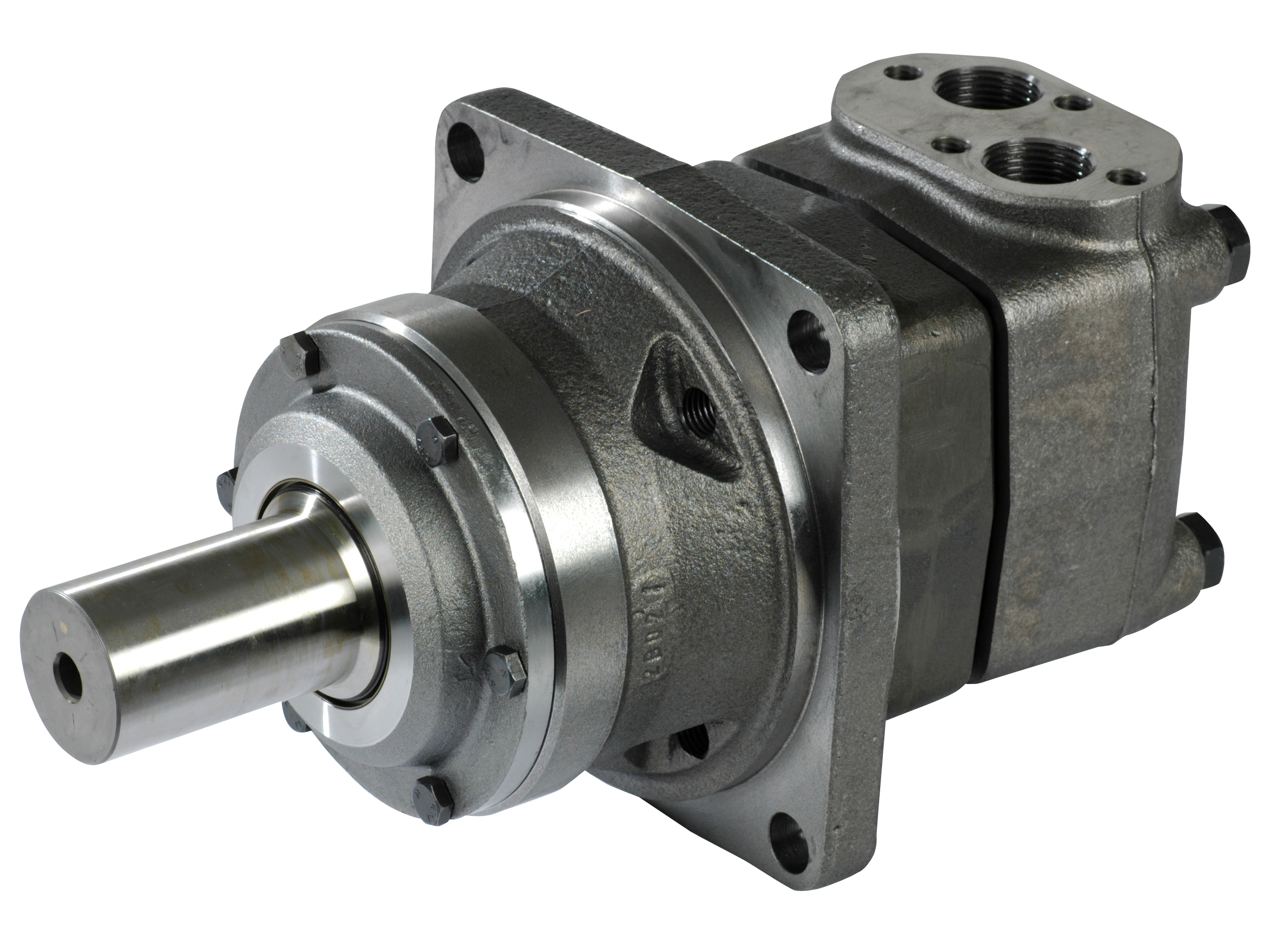

Orbital motors Danfoss OMVW cylindrical shaft

OMVW 315 HYDRAULIC MOTOR

OMVW 400 HYDRAULIC MOTOR

OMVW 500 HYDRAULIC MOTOR

OMVW 630 HYDRAULIC MOTOR

OMVW 800 HYDRAULIC MOTOR

VÆLG VARIANT

Varenummer	Beskrivelse	Displacement	Shaft diameter	Shaft type	Continuous power max.
151B3115	OMVW 315 HYDRAULIC MOTOR	314.5 cm3	50 mm	Cylindrisk	42.5 kW
151B3116	OMVW 400 HYDRAULIC MOTOR	400.9 cm3	50 mm	Cylindrisk	53.5 kW
151B3117	OMVW 500 HYDRAULIC MOTOR	499.6 cm3	50 mm	Cylindrisk	53.5 kW
151B3118	OMVW 630 HYDRAULIC MOTOR	629.1 cm3	50 mm	Cylindrisk	48 kW
151B3119	OMVW 800 HYDRAULIC MOTOR	801.8 cm3	50 mm	Cylindrisk	42.5 kW

Brand Name

Danfoss

Contamination level max.

22/20/16 - ISO 4406

Drainport

G 1/4

Holes circle

224

Mounting flange

Wheel 180

Number of mounting holes

Oil viscocity recommended

20 - 75

Port position

Sida

Recess

180,0

Shaft diameter

Shaft keyway

14,0

Shaft type

Cylindrisk

Temperature ambient max.

+90

Temperature ambient min.

-30

Working ports

G 1
