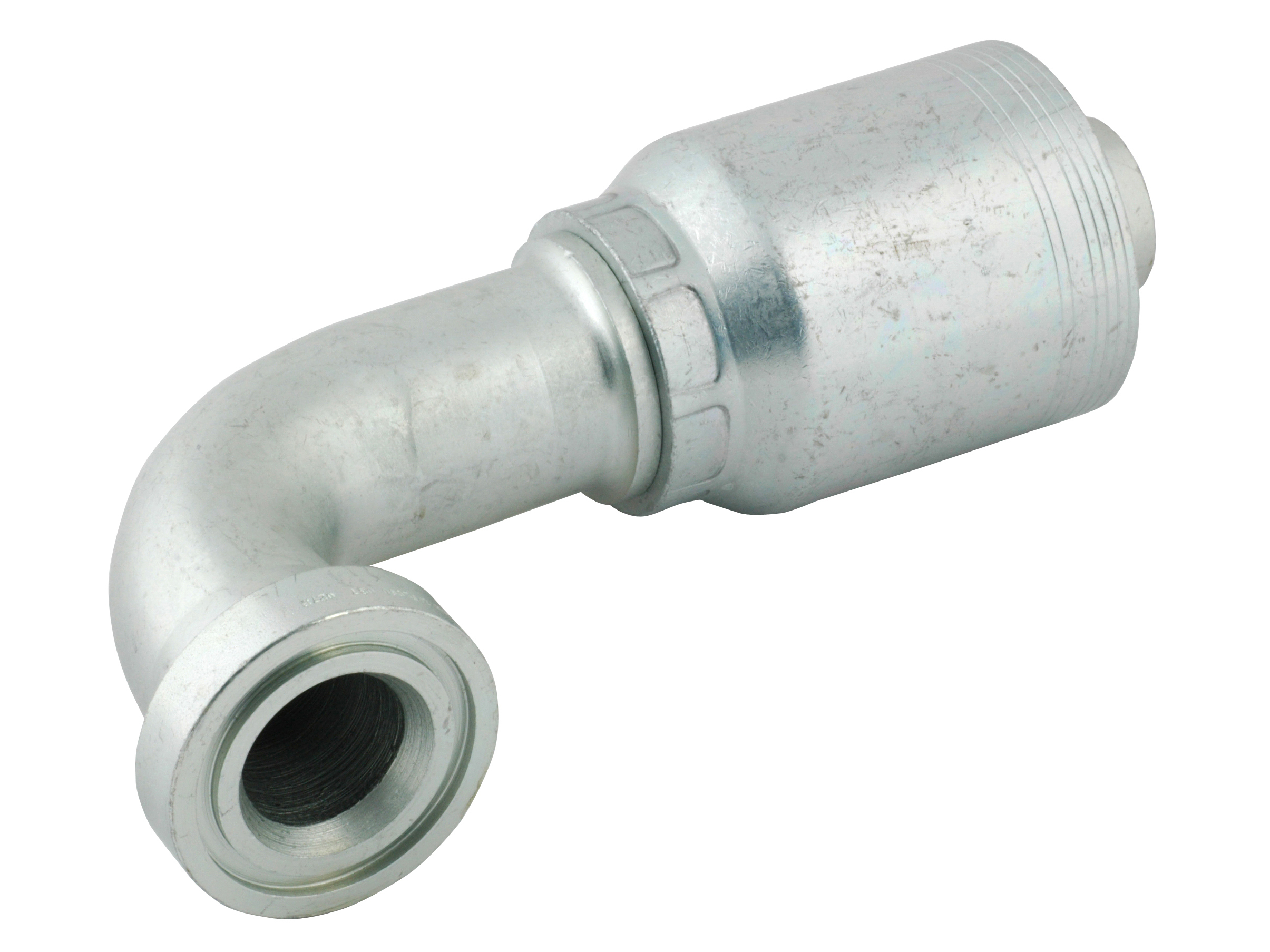

Fläns koppling SAE Caterpillar® - 90° - (FLC90 - FLC90)

Fläns koppling SAE Caterpillar® - 90° - (FLC90 - FLC90)

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Material Hose size Angle Hose coupling type
24GSM24FLC90-087 Presskoppling GSM 90B, Ø 1 1/2'', SAE 1 1/2'', Caterpillar Stål 1.1/2 " 90 ° Med hylsa
32GSM32FLC90-130 Presskoppling GSM 90B, Ø 2'', SAE 2'', Caterpillar Stål 2 " 90 ° Med hylsa
Angle
90
Brand Name
Gates
Corrosion resistance
500 hours salt spray ASTM B-117
Dimension A
264.5
Dimension B
150.5
Dimension E
130
Dimension K
79.5
Flange SAE/DIN
6000 PSI
Hose coupling type
Med hylsa
Material
Stål
Pressure max.
420
REACH compliant
Ja
RoHs compliant
Ja
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
TuffCoat™
