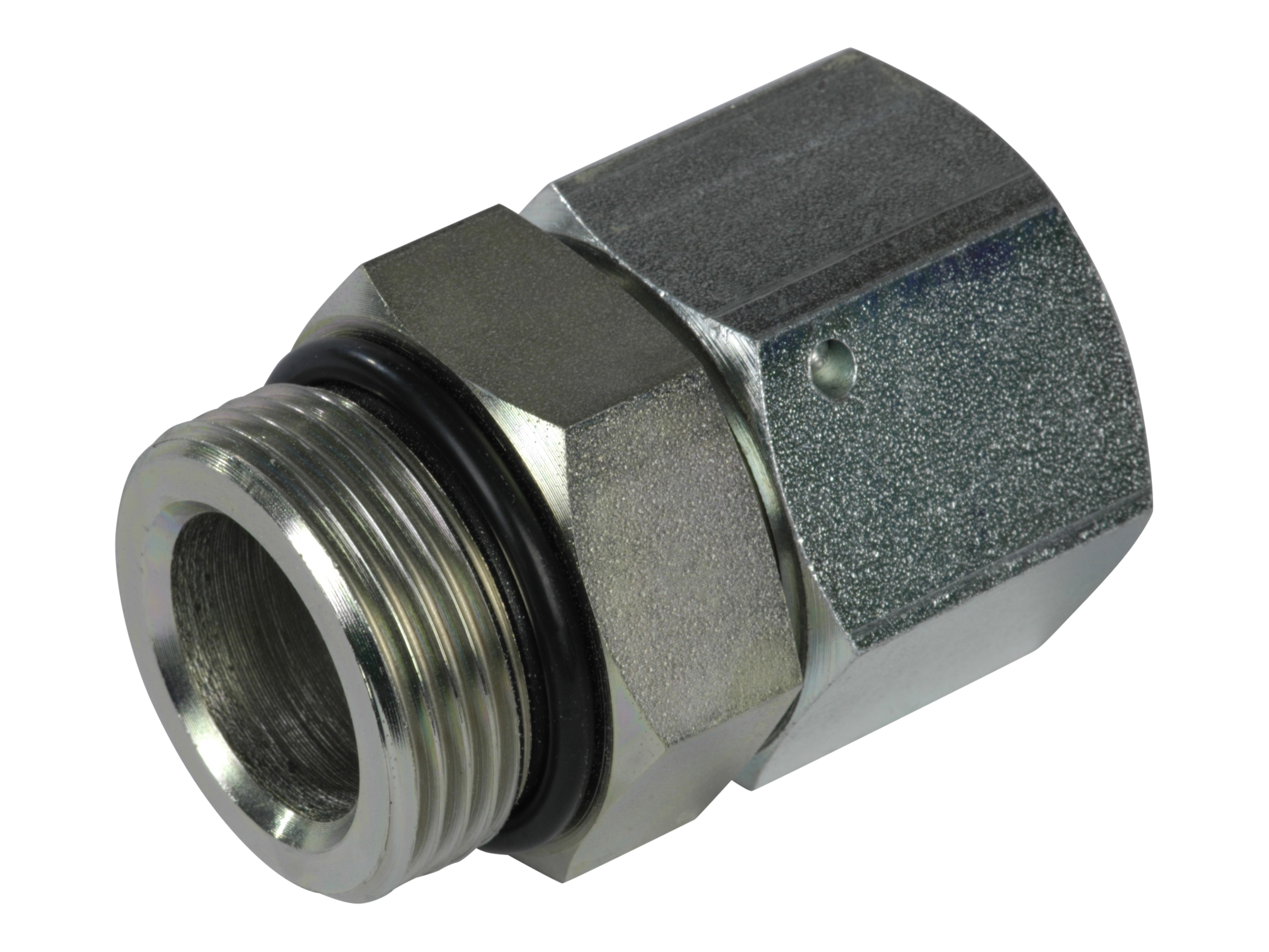

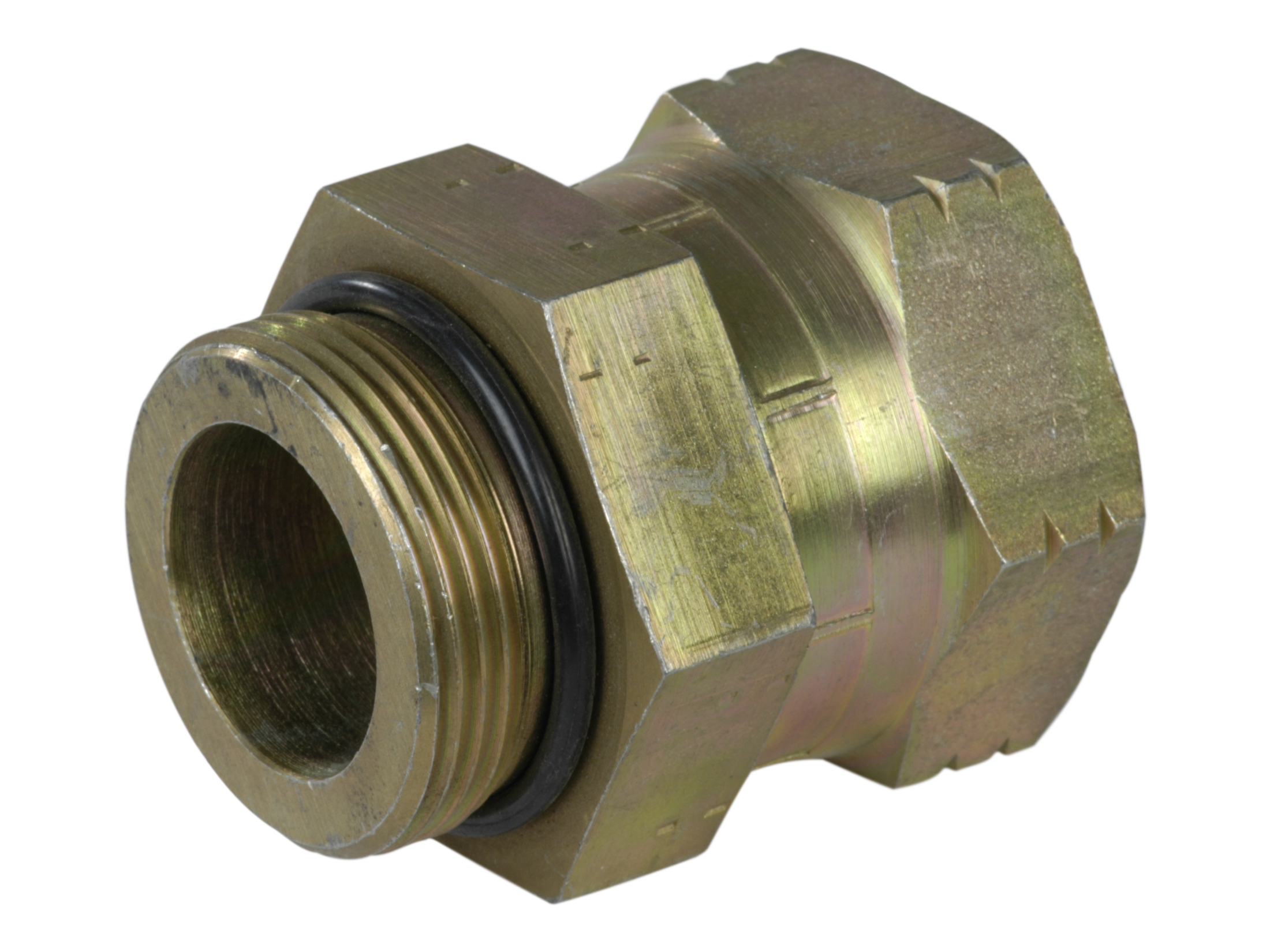

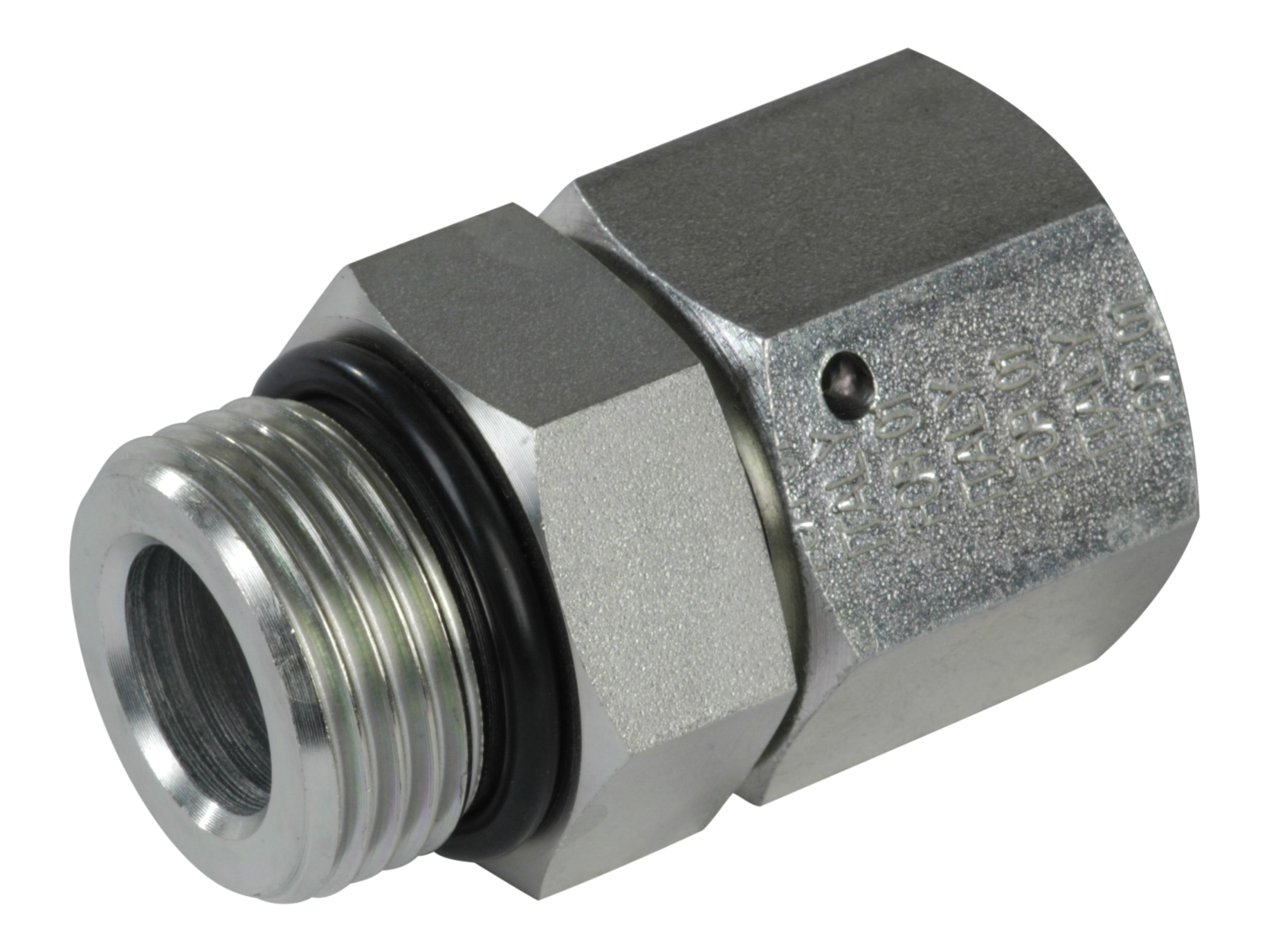

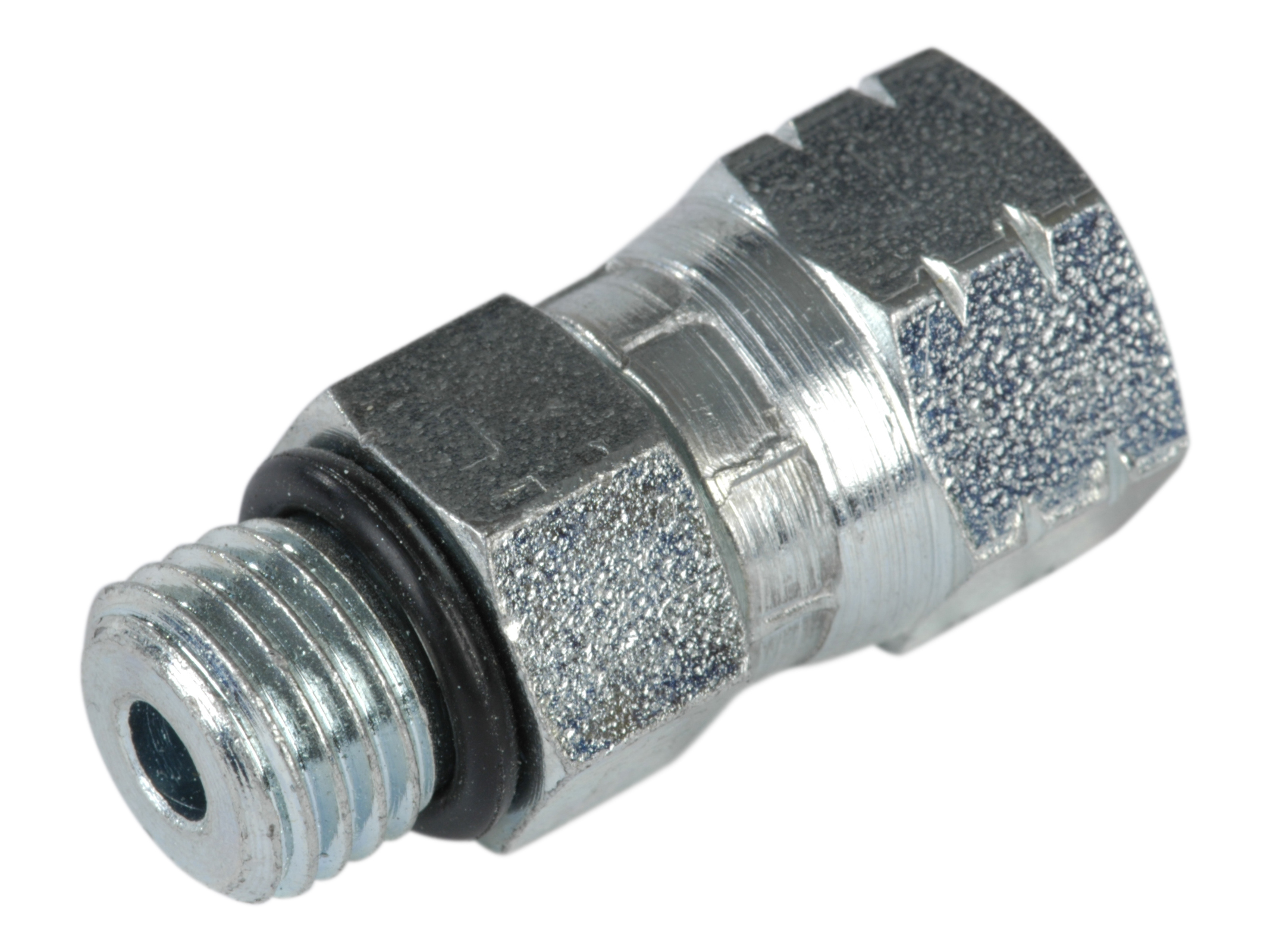

Adapter BSP male x BSP female ED seal - RI-WD - FG / JEVGEU

Adapter BSP male x BSP female ED seal - RI-WD - FG / JEVGEU

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter rör Gänga inv. Gänga utv. Tryck max.
JEVGEU-04-04 JEVGEU-04-04 - Adapter Rak, Inv-JIC, Utv-UNF 6 mm 7/16-20 JIC 7/16-20 UNF
JEVGEU-05-05 JEVGEU-05-05 - Adapter Rak, Inv-JIC, Utv-UNF 8 mm 1/2-20 JIC 1/2-20 UNF
JEVGEU-06-06 JEVGEU-06-06 - Adapter Rak, Inv-JIC, Utv-UNF 10 mm 9/16-18 JIC 9/16-18 UNF
JEVGEU-08-08 JEVGEU-08-08 - Adapter Rak, Inv-JIC, Utv-UNF 12 mm 3/4-16 JIC 3/4-16 UNF
JEVGEU-10-08 JEVGEU-10-08 - Adapter Rak, Inv-JIC, Utv-UNF 16 mm 7/8-14 JIC 3/4-16 UNF
JEVGEU-10-10 JEVGEU-10-10 - Adapter Rak, Inv-JIC, Utv-UNF 16 mm 7/8-14 JIC 7/8-14 UNF 350 bar
JEVGEU-12-12 JEVGEU-12-12 - Adapter Rak, Inv-JIC, Utv-UNF 20 mm 1.1/16-12 JIC 1.1/16-12 UNF 300 bar
JEVGEU-16-16 JEVGEU-16-16 - Adapter Rak, Inv-JIC, Utv-UNF 25 mm 1.5/16-12 JIC 1.5/16-12 UNF 290 bar
JEVGEU-20-20 JEVGEU-20-20 - Adapter Rak, Inv-JIC, Utv-UNF 32 mm 1.5/8-12 JIC 1.5/8-12 UNF 170 bar
