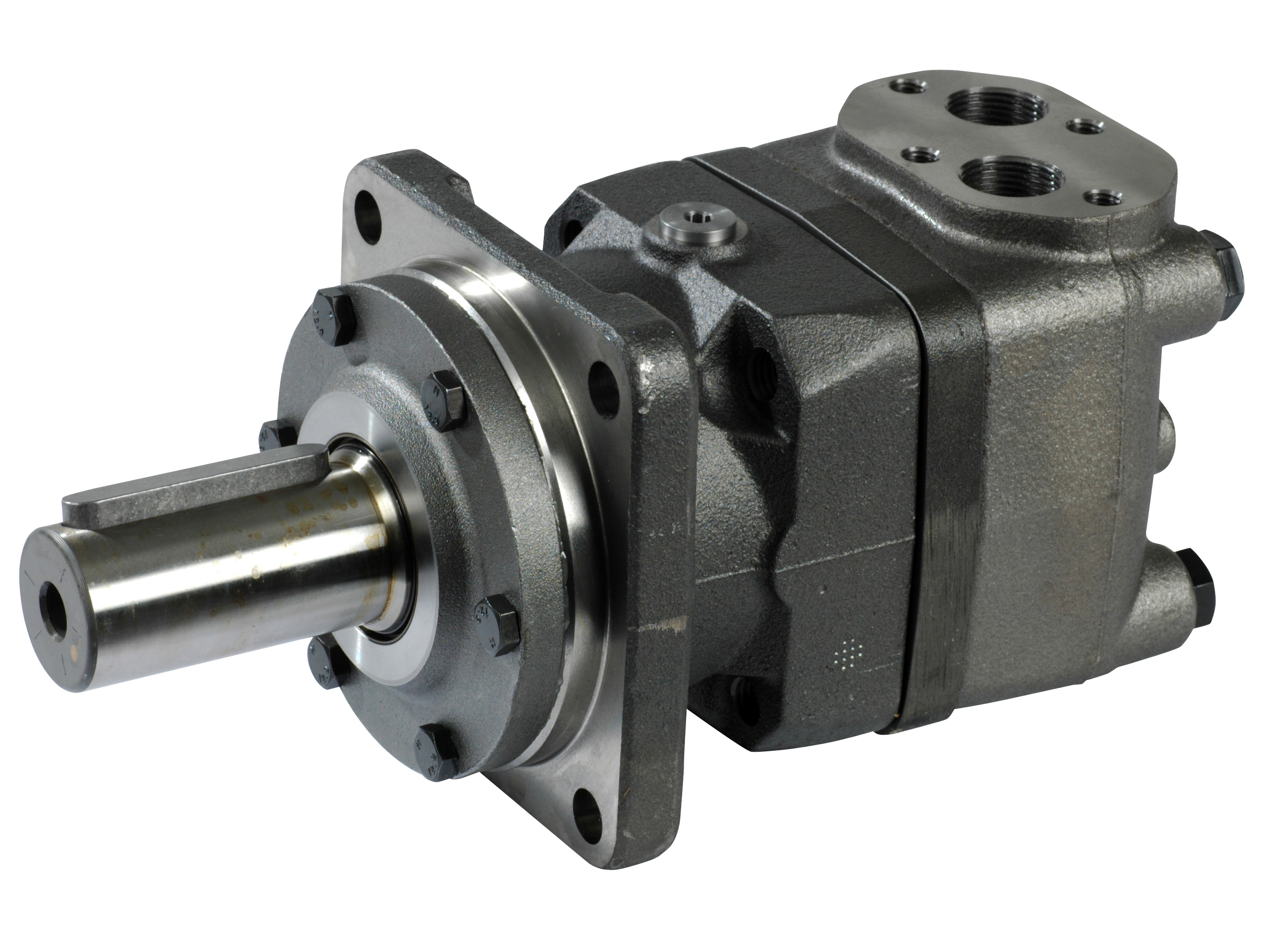

Orbital motors Danfoss OMT cylindrical shaft

Orbital motors Danfoss OMT cylindrical shaft

Vælg variant
VÆLG VARIANT
VÆLG VARIANT
Varenummer Beskrivelse Shaft diameter Shaft type Displacement Continuous rotation max.
151B3000 OMT 160 HYDRAULIC MOTOR 40 mm Cylindrisk 161.1 cm3 625 rpm
151B3001 OMT 200 HYDRAULIC MOTOR 40 mm Cylindrisk 201.4 cm3 625 rpm
151B3002 OMT 250 HYDRAULIC MOTOR 40 mm Cylindrisk 251.8 cm3 500 rpm
151B3003 OMT 315 HYDRAULIC MOTOR 40 mm Cylindrisk 326.3 cm3 380 rpm
151B3004 OMT 400 HYDRAULIC MOTOR 40 mm Cylindrisk 410.9 cm3 305 rpm
151B3005 OMT 500 HYDRAULIC MOTOR 40 mm Cylindrisk 523.6 cm3 240 rpm
Brand Name
Danfoss
Contamination level max.
22/20/16 - ISO 4406
Dimension L3
82
Drainport
G 1/4
Holes circle
160
Mounting flange
Square 125
Number of mounting holes
4
Oil viscocity recommended
20 - 75
Port position
Sida
Recess
125,0
Shaft diameter
40
Shaft keyway
12,0
Shaft type
Cylindrisk
Temperature ambient max.
+90
Temperature ambient min.
-30
Working ports
G 3/4
