Danfoss MVB valve system

VÄLJ VARIANT
Artikelnummer Beskrivning Tryck max. Flödeshastighet nominell LMin Port P Arbetsportar

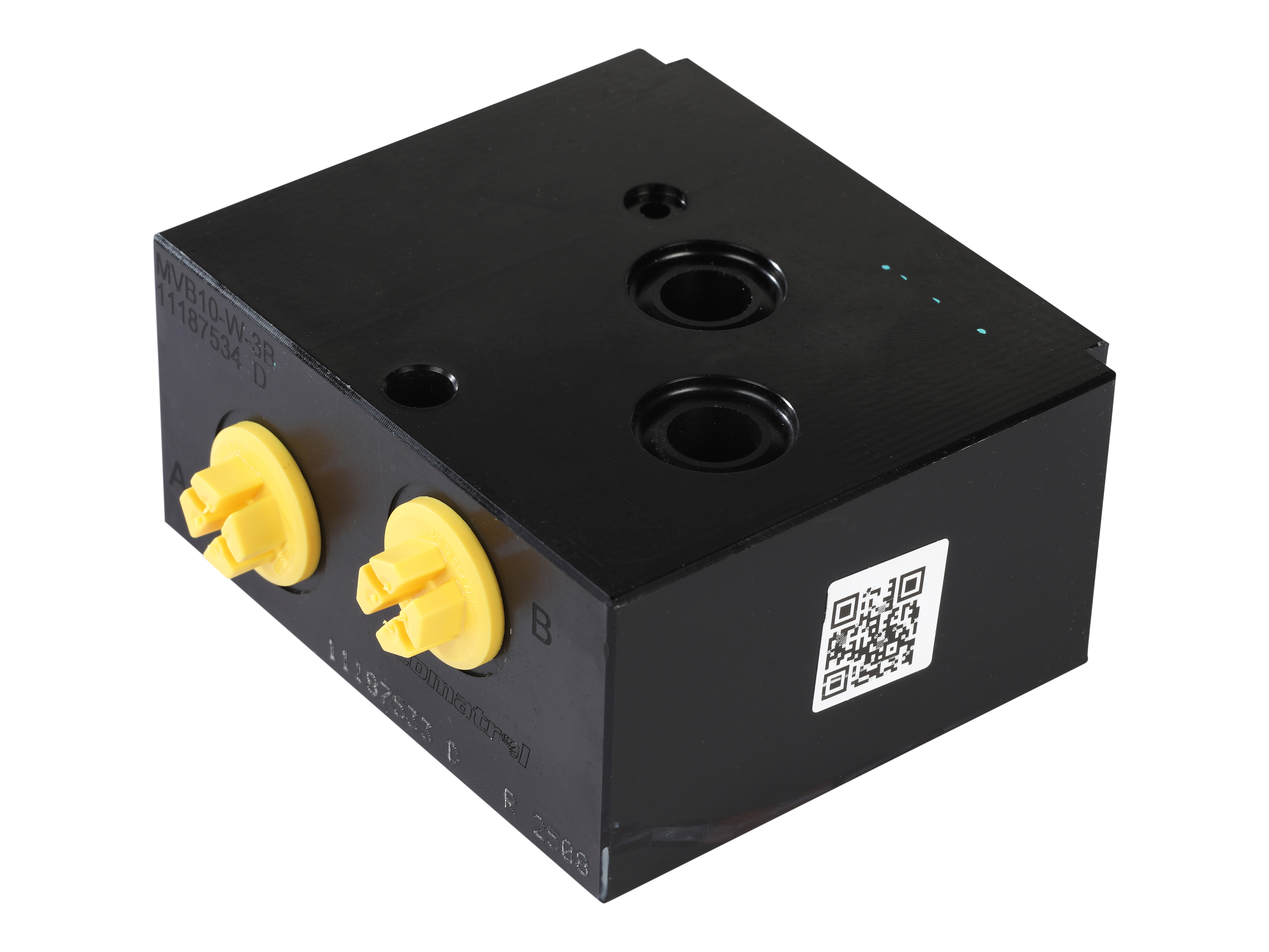

11187533 MVB10-W-3B sektion utan tryckkompensator 210 bar 22 lpm G 3/8 BSP
11187535 MVB10-W-C-3B sektion med tryckkompensator 210 bar 22 lpm G 3/8 BSP
11187916 MVB10-IF PVG16 & PVG32 interface section 210 bar 22 lpm

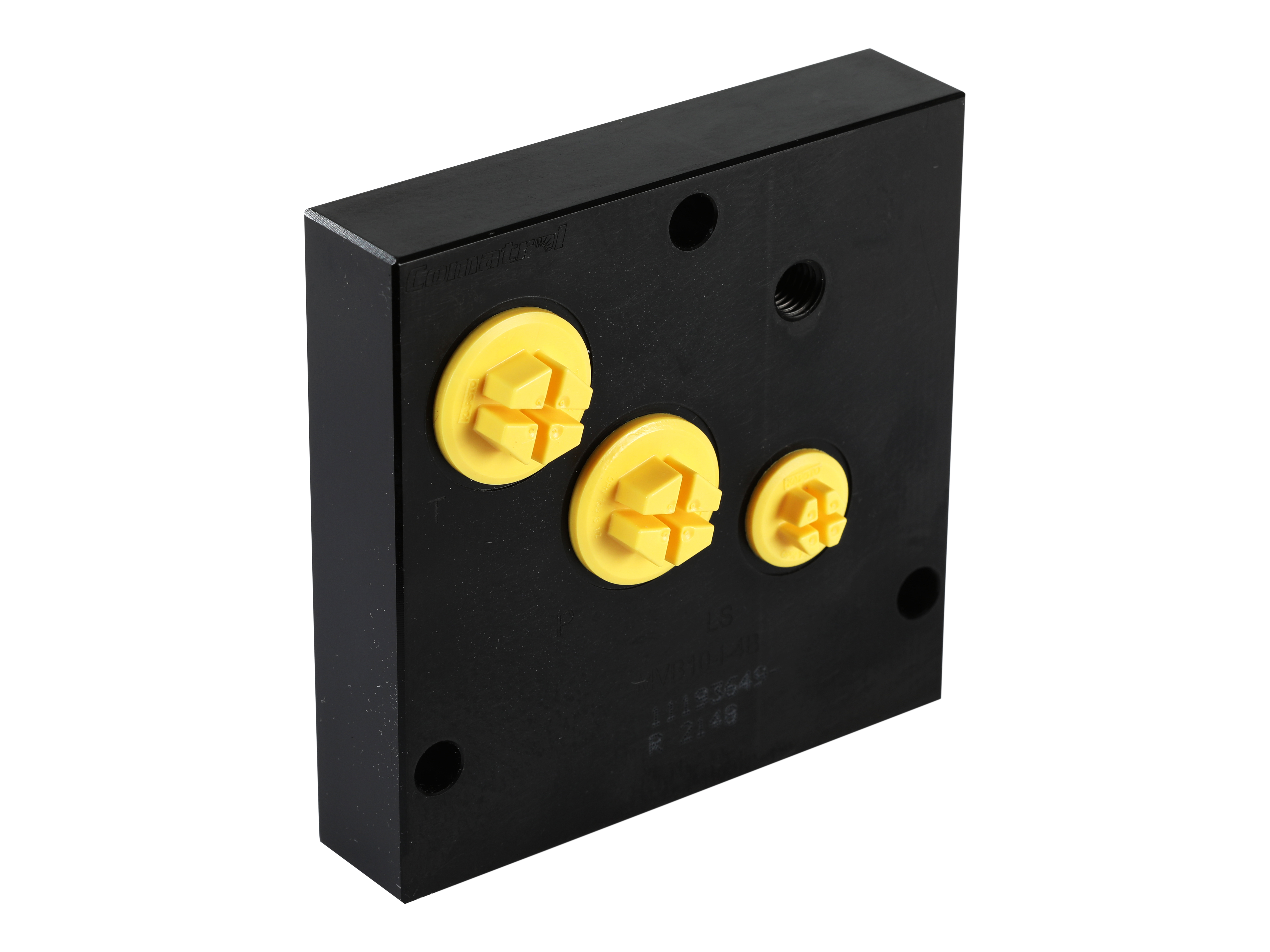

11187937 MVB10-E änd sektion 210 bar 22 lpm G 1/2 BSP
11188879 MVB10-W-LH-3B sektion utan tryckkompensator för OC or P.O 210 bar 22 lpm G 3/8 BSP

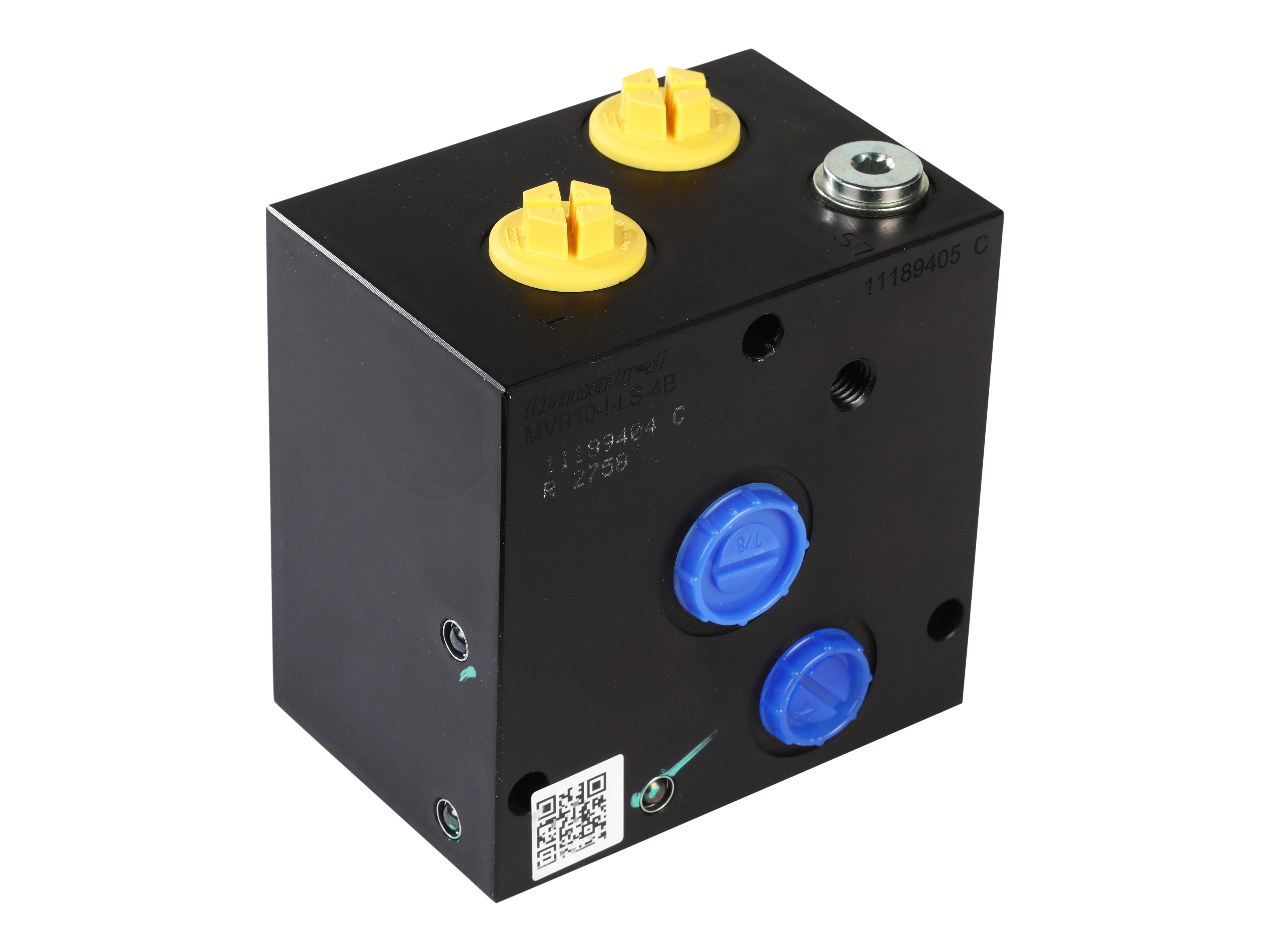

11189404 MVB10-I-LS-4B inloppssektion för OC or CC 210 bar 22 lpm G 1/2 BSP
11193649 MVB10-I-4B inloppssektion för LS 210 bar 22 lpm G 1/2 BSP
11196245 MVB10-W-C-LH-3B sektion med tryckkompensator för OC or P. 210 bar 22 lpm G 3/8 BSP
Flödeshastighet nominell LMin
22

Föroreningsgrad max.
18/17/13 - ISO 4406

Märke namn
Danfoss

Oljeviskositet rekommanderad
12 - 54

Temperatur max.
+100

Temperatur min.
-40

Tryck max.
210
