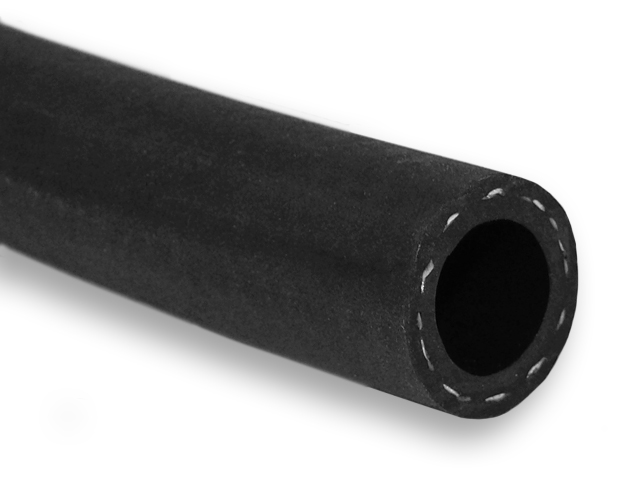

Kylarslang, DIN73411:A, HEAT/EHW021

Kylarslang 8x15 DIN73411 -40gr - +125gr EPDM 4 Bar BP12

Kylarslang 10x17 DIN73411 -40gr - +125gr EPDM 4 Bar BP12

Kylarslang 12x19 DIN73411 -40gr - +125gr EPDM 4 Bar BP12

Kylarslang 16x23 DIN73411 -40gr - +125gr EPDM 4 Bar BP12

Kylarslang 19x27 DIN73411 -40gr - +125gr EPDM 4 Bar BP12

Kylarslang 22/30 DIN73411 -40gr - +125gr EPDM 4 Bar BP12

Kylarslang 25x34 DIN73411 -40gr - +125gr EPDM 4 Bar BP12

VÆLG VARIANT

Varenummer	Beskrivelse	Pressure max.	Diameter inner	Temperature min.	Temperature max.
HEAT-08	Kylarslang 8x15 DIN73411 -40gr - +125gr EPDM 4 Bar BP12	6 bar	8 mm	-40 °C	+120 °C
HEAT-10	Kylarslang 10x17 DIN73411 -40gr - +125gr EPDM 4 Bar BP12	6 bar	10 mm	-40 °C	+120 °C
HEAT-13	Kylarslang 12x19 DIN73411 -40gr - +125gr EPDM 4 Bar BP12	6 bar	12 mm	-40 °C	+120 °C
HEAT-16	Kylarslang 16x23 DIN73411 -40gr - +125gr EPDM 4 Bar BP12	6 bar	15 mm	-40 °C	+120 °C
HEAT-19	Kylarslang 19x27 DIN73411 -40gr - +125gr EPDM 4 Bar BP12		19 mm	-40 °C	+125 °C
HEAT-22	Kylarslang 22/30 DIN73411 -40gr - +125gr EPDM 4 Bar BP12	4 bar	22 mm	-40 °C	+120 °C
HEAT-25	Kylarslang 25x34 DIN73411 -40gr - +125gr EPDM 4 Bar BP12	4 bar	25 mm	-40 °C	+120 °C

Area of use

AdBlue® (UREA), Glykol, Neutrala gaser och vätskor, Spolarvätska, Vatten

Brand Name

Hydraspecma

Cover

EPDM

Length per roll

Material

EPDM

Pressure burst min.

Standard DIN

DIN 73411:A

Temperature min.

-40
