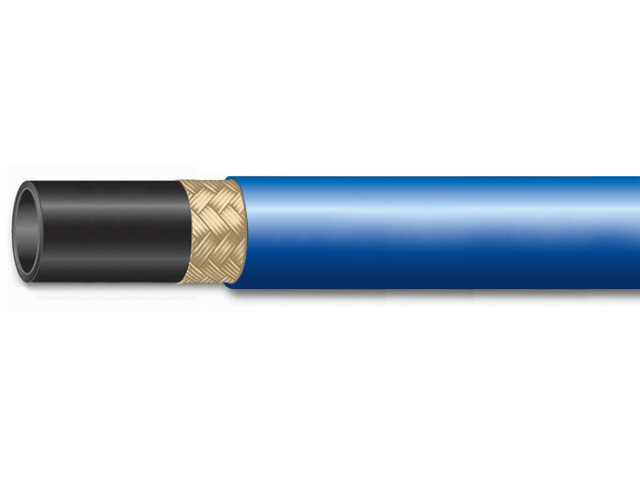

Hydraulslang HyCelsius 911-

Hydraulslang HyCelsius 911-

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Pressure max. Bend radius Temperature max.
911-06 Hydraulslang HyCelsius 3/8, 180 Bar 3/8 " 180 bar 130 mm +135 °C
911-08 Hydraulslang HyCelsius 1/2, 160 Bar 1/2 " 160 bar 180 mm +135 °C
911-10 Hydraulslang HyCelsius 5/8, 130 Bar 5/8 " 130 bar 200 mm +135 °C
911-12 Hydraulslang HyCelsius 3/4, 105 Bar 3/4 " 105 bar 240 mm +135 °C
911-16 Hydraulslang HyCelsius 1tum, 88 Bar 1 " 88 bar 300 mm +135 °C
911-20 Hydraulslang HyCelsius 1.1/4, 63 Bar 1.1/4 " 63 bar 420 mm +135 °C
911-24 Hydraulslang HyCelsius 1.1/2, 50 bar 1.1/2 " 50 bar 500 mm +135 °C
911-32 Hydraulslang HyCelsius 2tum, 40 Bar 2 " 40 bar 630 mm +135 °C
Area of use
Glykol, Luft, Olja, Smörjfett, Vatten
Brand Name
I.M.M Hydraulics
Color
Blå
Hose type
1SN
REACH compliant
Ja
RoHs compliant
Ja
Standard EN
EN 853 1SN
Standard SAE
SAE 100R1AT
Temperature intermittent max.
+140
Temperature max.
+135
Temperature min.
-40
