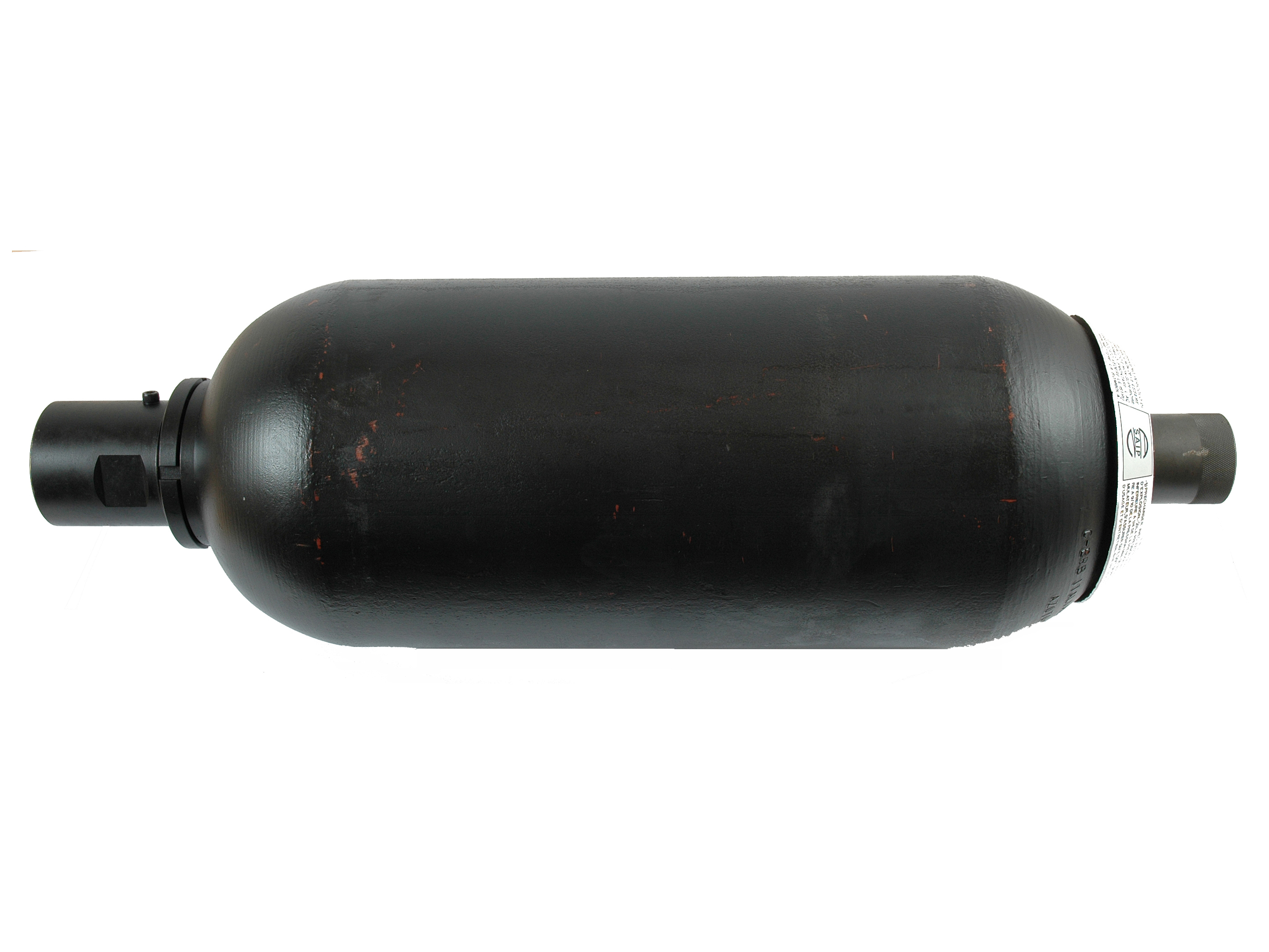

Blåsackumulator typ SI

SELECT VARIANT

	Partnumber	Description
	SI1U10	SI1U10 - Blåsackumulator 9,1 L 4:1 max 360 bar - 2" BSP
	SI1U10C7	SI1U10C7 - Blåsackumulator 10 L max 360 bar 1.1/4 BSP
	SI1U4C7	SI1U4C7 - Saip blåsackumulator 4 L max 360 bar 1.1/4 BSP
	SI1U6C7	SI1U6C7 - Blåsackumulator 6 L max 360 bar 1.1/4 BSP

Brand Name

Saip

Dimension CH1

Dimension ØF

22.5

Gas valve

5/8" UNF, Plug

Material

Kolstål med epoxibeläggning (≥75 μm)

Mount

Installera vertikalt, horisontellt eller i vinkel med gasventilen uppåt

Precharge pressure

Pressure difference ratio max.

4:1

Pressure max.

360

Separating Element

NBR (-20 °C till +100 °C)

Temperature max.

+80

Temperature min.

-15

Test Standards

PED 2014/68/EU Cat. IV, EN 14359:2017, EN13445-3:2021

Type

Blåsa
