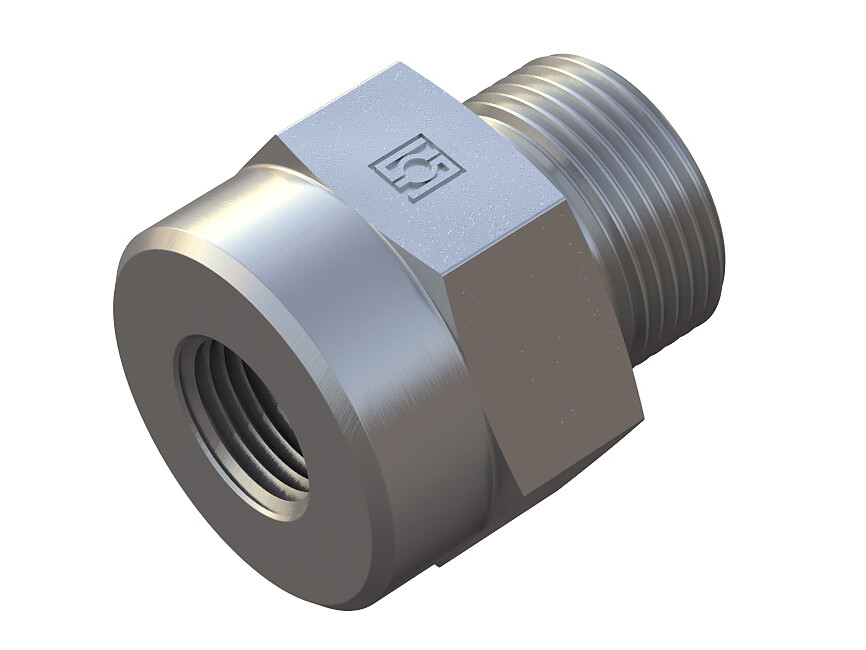

Manometeradapter Rak 06L Inv-G1/4'' DKI

Temperatur/tryckreducering:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%

Varenummer:

XMAV06LR

Pakke str.:

10 st

Min. bestillingsenhed er:

1 st

Tillbehör (2)

Skärring 6LS

Varenummer: DPR06LS

Mutter 6L (M12x1.5)

Varenummer: M06L

Specifikationer
Dimensioner og forsendelse

Diameter rör

6 mm

Dimension D2

5.5 mm

Dimension D3

4 mm

Dimension L

29 mm

Dimension L1

37 mm

Dimension L2

7.5 mm

Dimension L3

13 mm

Dimension L4

4.5 mm

Dimension S1

19 mm

Dimension S2

14 mm

Dimension d1

6 mm

Gänga inv.

G 1/4 BSP

Gänga utv. metrisk

M12x1,5

Modell kod

FI-MA-06LR-W3-DKI

Märke namn

Stauff

REACH compliant

RoHs compliant

Rostbeständighet

1200 hours salt spray DIN EN ISO 9227

Serie

Säkerhetsfaktor

Temperatur max.

+120 °C

Temperatur min.

-40 °C

Thread T

G 1/4 BSP

Tryck max.

315 bar

Vinkel

0 °

Ytskiktbehandling

Zink-Nickel

Pakke str.

10 st

Stregkode

304251

Brutto vægt

0,03 Kg

Netto vægt

0,03 Kg

Oprindelsesland

DEU

Intrastat varekode

73071110

Produkt information
Målskitse

Temperatur/tryckreducering:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%

Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
