Adapter Rak Skarv 12LL
Partnumber:
XG12LL
Package size:
1 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm

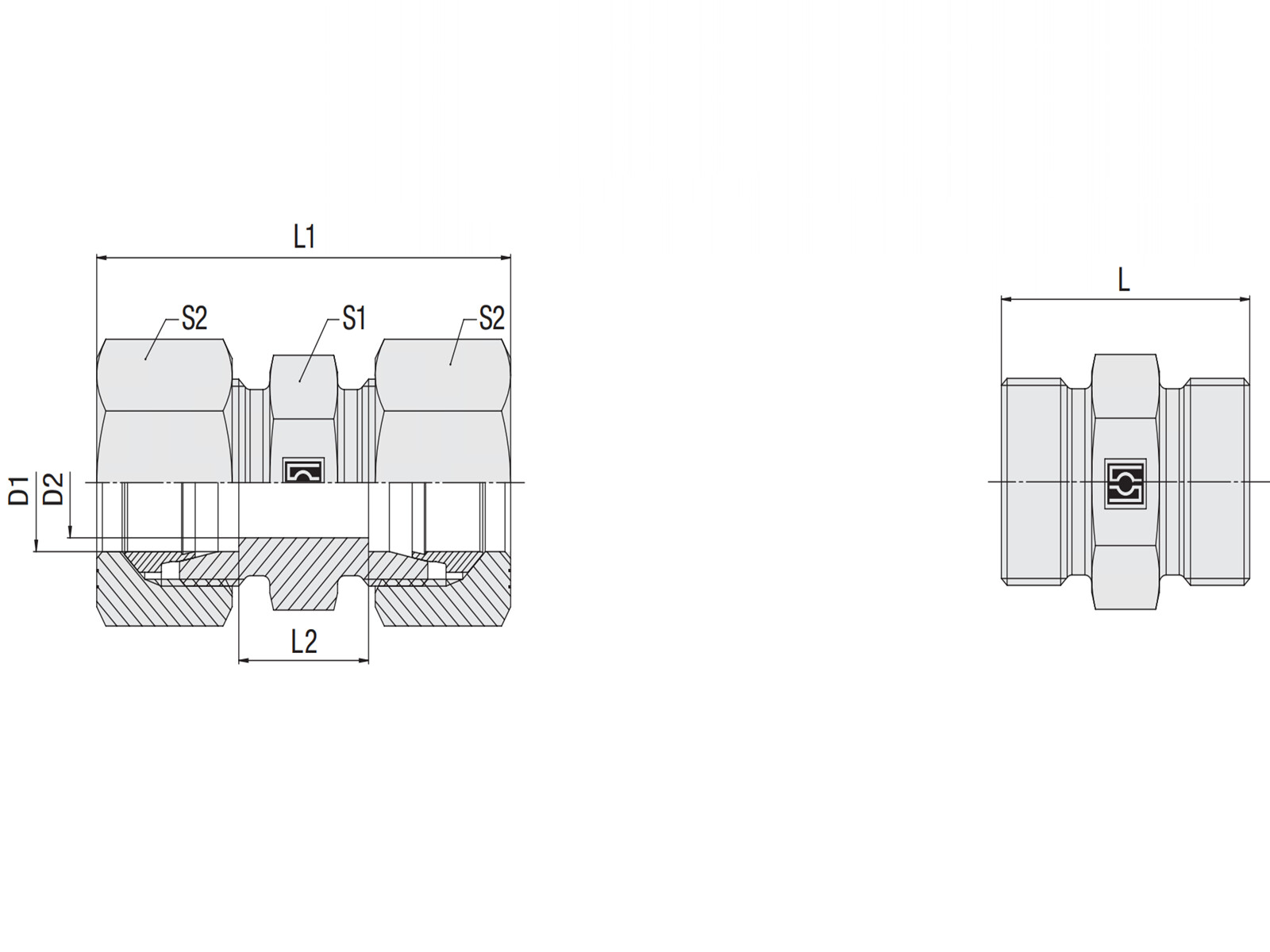

Dimension D1
12 mm
Dimension D2
10 mm
Dimension L
23 mm
Dimension L1
35 mm
Dimension L2
11 mm
Dimension S1
17 mm
Dimension S2
19 mm
Material
Stål
Pressure max.
100 bar
REACH compliant
Ja
RoHs compliant
Ja
Safety factor
4
Series
LL
Surface treatment
Zink-Nickel
Temperature max.
+120 °C
Temperature min.
-40 °C
Package size
1 st
Barcode
433589
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Note: Opening 3D files requires a program that supports the file format
