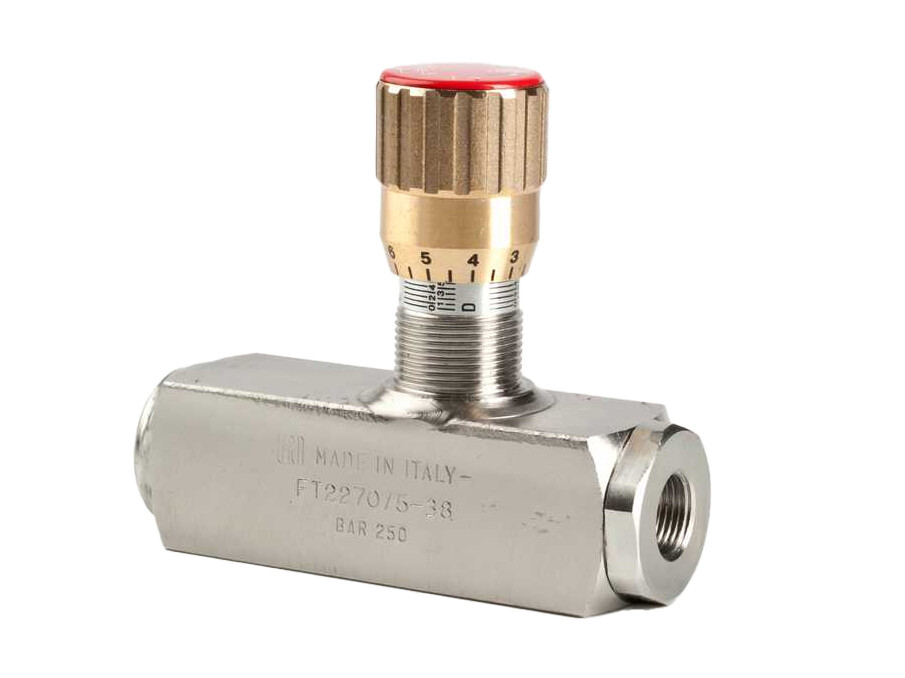

3/8 flow control valve Togn Pressure compensated, AISI316
3/8 flow control valve Togn Pressure compensated, AISI316
Partnumber:
FT2270-5-3/8-SY
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Tognella
Dimension A
G 3/8 BSP
Dimension B
13 mm
Dimension C
110.5 mm
Dimension CH
35 mm
Dimension D
94.5 mm
Dimension E
103 mm
Dimension F
33 mm
Dimension G
17 mm
Dimension H metric
M25x1,5 mm
Flow rate nominal LMin
30 lpm
Material
Rostfritt stål
Material quality
1.4404 / AISI316L
Pressure compensated
Ja
Pressure max.
250 bar
Sealing material
FKM/FPM (Viton®)
Temperature max.
+160 °C
Temperature min.
-20 °C
Thread
G 3/8 BSP
Valve type
Strypbackventil
Pakke str.
1 st
Stregkode
489044
Brutto vægt
0,97 Kg
Netto vægt
0,97 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
3/8 flow control valve Togn Pressure compensated, AISI316
