Instickskoppling 90B 40mm
Instickskoppling 90B 40mm
Partnumber:
FPUL40
Package size:
1 st
Min. order quantity is:
1 st
Angle
90 °
Area of use
Icke-aggressiva gaser, Tryckluft, Vacuum
Brand Name
Tierre
Color
Svart
Diameter pipe 1
40 mm

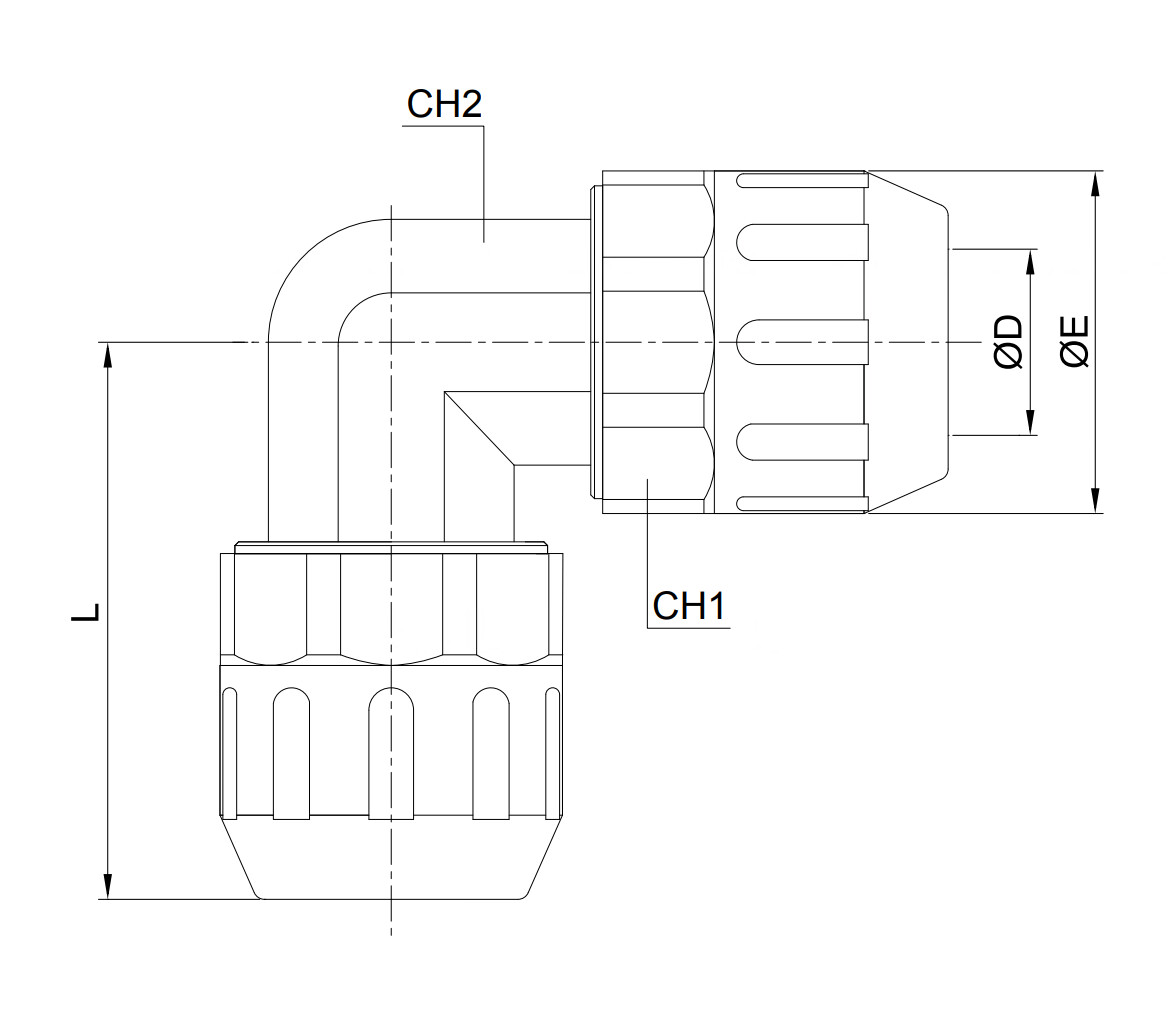

Dimension CH1
67 mm
Dimension CH2
46 mm
Dimension L
110.2 mm
Dimension ØD
40 mm
Dimension ØE
70 mm
Material
Nylon, Glasfiberarmerad
Model code
FPUL40
Pressure max.
16 bar
REACH compliant
Ja
RoHs compliant
Ja
Standard
Silicone Free
Temperature max.
+80 °C
Temperature min.
-20 °C
Package size
1 st
Barcode
370353
Gross weight
Kg
Net weight
Kg
Country of origin
ita
Instickskoppling 90B 40mm
