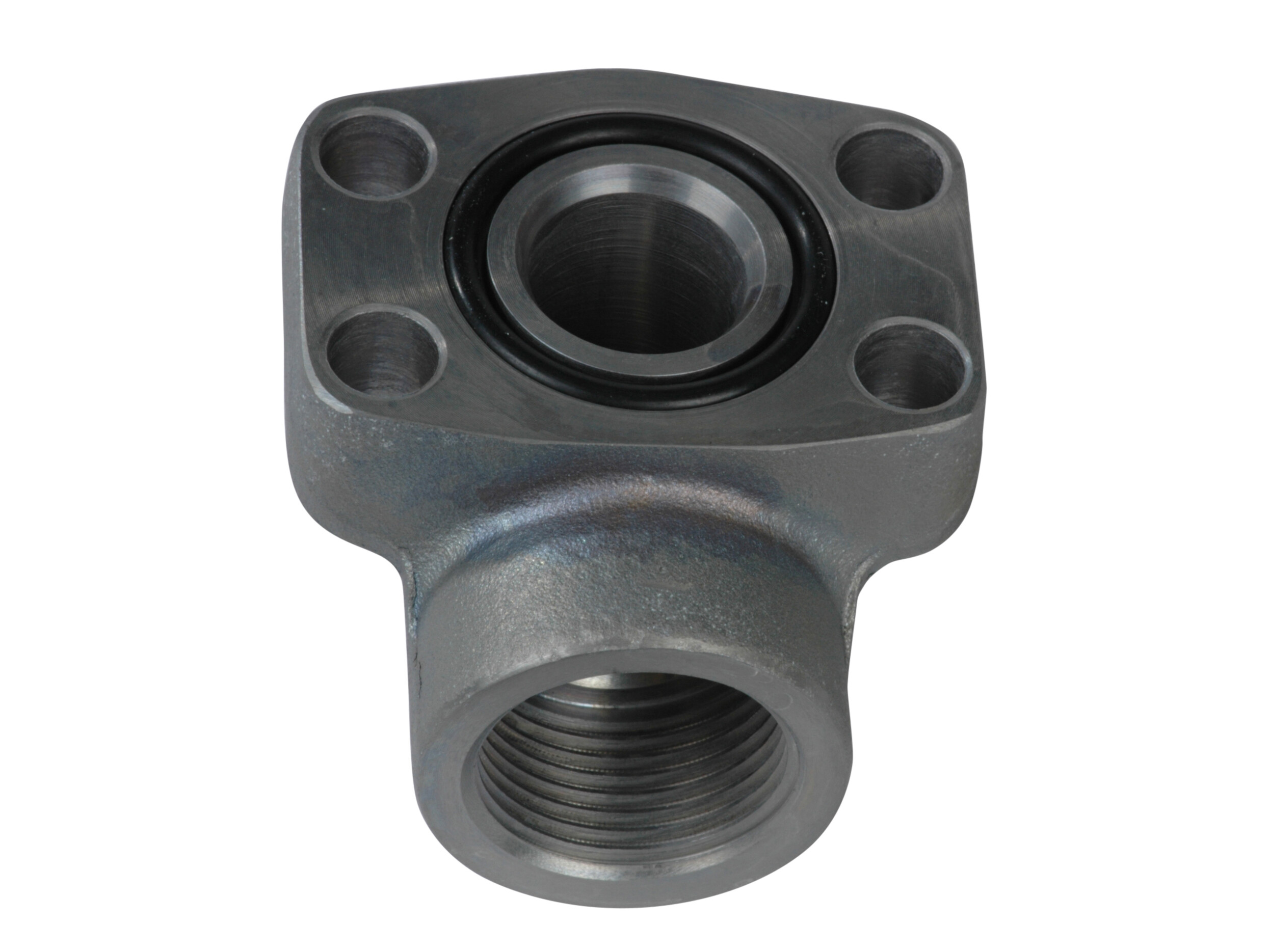

8691-24-24 - FLÄNS 90GR SAE6000 1.1/2
FLÄNS 90GR SAE6000 1.1/2
Partnumber:
8691-24-24
Package size:
1 st
Min. order quantity is:
1 st
Angle
90 °
Bolt dimension
M16x55 mm
Brand Name
Hydraspecma
C
79,3 mm
Diameter flange
63.5 mm
E
36,5 mm
Flange
1.1/2 "
Flange SAE/DIN
6000 PSI
Material
Stål
O-ring
47.22X3.53 mm
Pressure max.
414 bar
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Temperature max.
+100 °C
Temperature min.
-30 °C
Thread inner
G 1.1/2 BSP
Package size
1 st
Barcode
198959
Gross weight
Kg
Net weight
Kg
Country of origin
ita
FLÄNS 90GR SAE6000 1.1/2
