Presskoppling 90K, Inv-G3/8'', Ø3/8'', Pressad mutter

Kompressibel slangkoppling med 90° BSP invändig gänga (smidd).

_x000D_

Anslutning: BSP invändig gänga i mutter, 60° konyta.

_x000D_

Tätning: Metall till metall (kon).

Varenummer:

4051-06-06

Pakke str.:

100 st

Min. bestillingsenhed er:

1 st

Specifikationer
Dimensioner og forsendelse

Angle

90 °

Brand Name

I.M.M Hydraulics

Dimension C

23 mm

Dimension E

22 mm

Dimension E1

17 mm

Dimension H

23 mm

Dimension T

G 3/8 BSP

Hose coupling type

Till lös hylsa

Hose size

3/8 "

Material

Stål

Model code

2321-06-06

Surface treatment

El-förzinkad / vitkromaterad

Thread

G 3/8 BSP

Torque tightening

34 Nm

Pakke str.

100 st

Stregkode

142055

Brutto vægt

0,086 Kg

Netto vægt

0,086 Kg

Oprindelsesland

ita

Produkt information

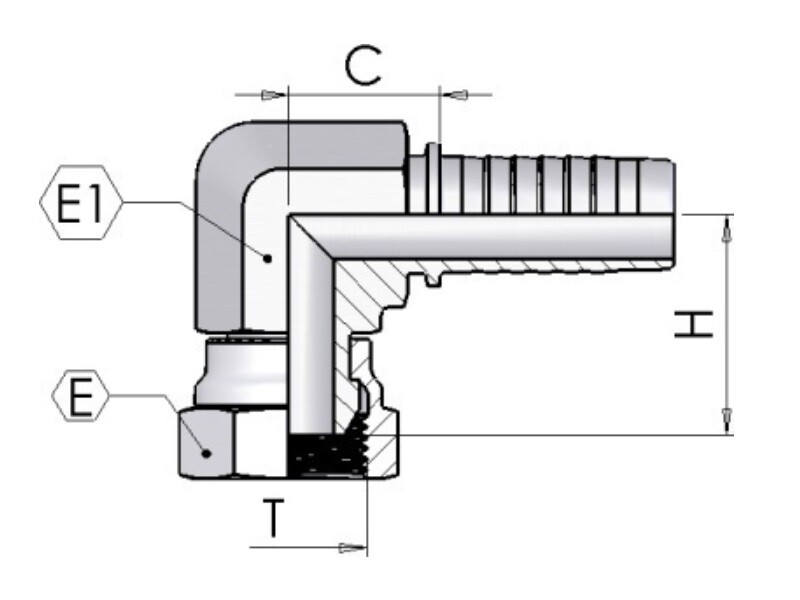

Målskitse

Kompressibel slangkoppling med 90° BSP invändig gänga (smidd).

_x000D_

Anslutning: BSP invändig gänga i mutter, 60° konyta.

_x000D_

Tätning: Metall till metall (kon).
