OMS 200cc motor axel 14T 4-bultad fläns
OMS 200 HYDRAULIC MOTOR
Artikelnummer:
151F0546
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Brand Name
White
C
G 1/4 BSP
Continuous power max.
16.5 kW
Continuous rotation max.
375 rpm
D
M10
Displacement
200 cm3
Drainport
G 1/4 BSP
E
G 1/2 BSP
Holes circle
106.4 mm
Intermittent Effect Max.
22 kW
Intermittent Rotation speed Max.
450 rpm
Intermittent Torque Max.
720 Nm
L
201 mm
L1
34.8 mm
L2
157 mm
Mounting flange
Square 82,5
Number of mounting holes
4
Number of outer grooves
14
Oil viscocity recommended
20 - 75 cSt
Port position
Sida
Power max.
16.5 kW
Pressure continous max.
140 bar
Pressure drop continuous max.
210 bar
Pressure intermittent max.
175 bar
Pressure peak max.
210 bar
Recess
82,5 mm
Rotational speed max.
375 rpm

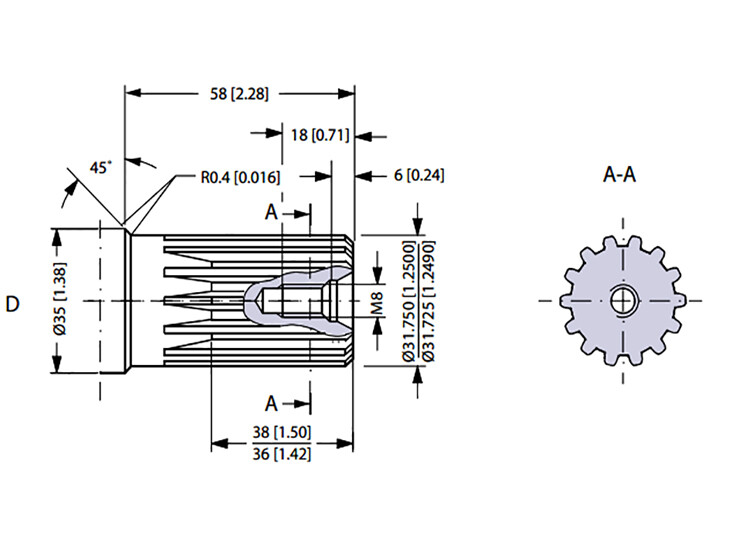

Shaft diameter
31,75 mm
Shaft spline
14T 12/24 SAE-C
Shaft type
Spline
Torque continuous max.
610 Nm
Torque output max.
720 Nm
Working ports
G 1/2 BSP
Förpackningsstorlek
1 st
Streckkod
328717
Bruttovikt
11,32 Kg
Nettovikt
11,32 Kg
Ursprungsland
swe
OMS 200 HYDRAULIC MOTOR
