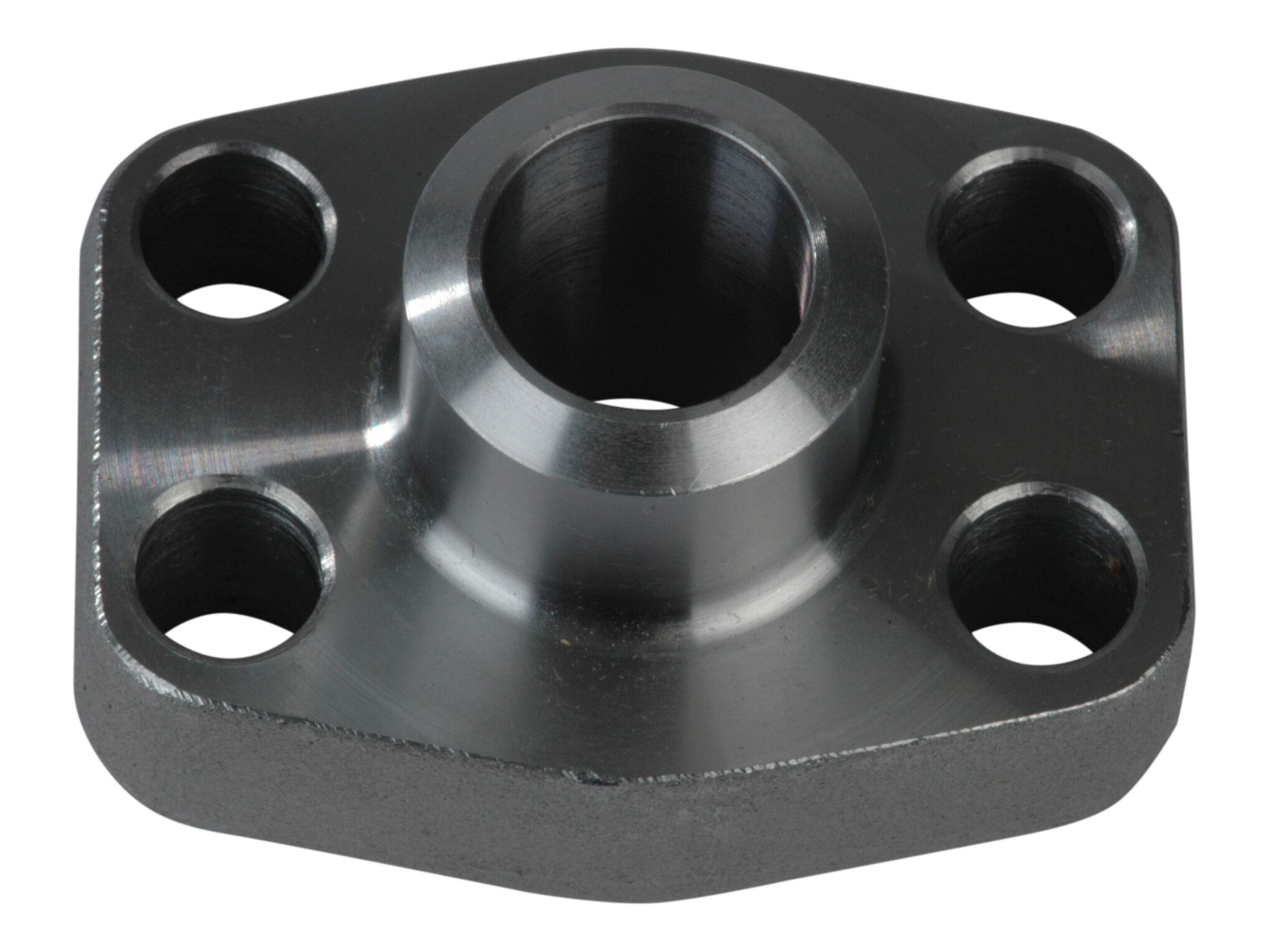

FLÄNS RAK SAE3000 3/4 SVETS UTV 28 MM, O-RINGSSPÅR

Artikelnummer:

0593-12

Förpackningsstorlek:

1 st

Minsta beställningskvantitet:

1 st

Specifications
Dimensions and shipping

Angle

0 °

Bolt dimension

M10x35 mm

Brand Name

Hydraspecma

47,6 mm

Diameter Weld butt

28 mm

Diameter flange

38.1 mm

22,3 mm

Flange

3/4 "

Flange SAE/DIN

3000 PSI

Material

Stål

Number of bolts

O-ring

24,99X3,53 mm

Pressure max.

345 bar

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperature max.

+100 °C

Temperature min.

-30 °C

Package size

1 st

Barcode

198682

Gross weight

Net weight

Country of origin

ita

Product information
Measure sketch

FLÄNS RAK SAE3000 3/4 SVETS UTV 28 MM, O-RINGSSPÅR
