Faster test quick connectors, female

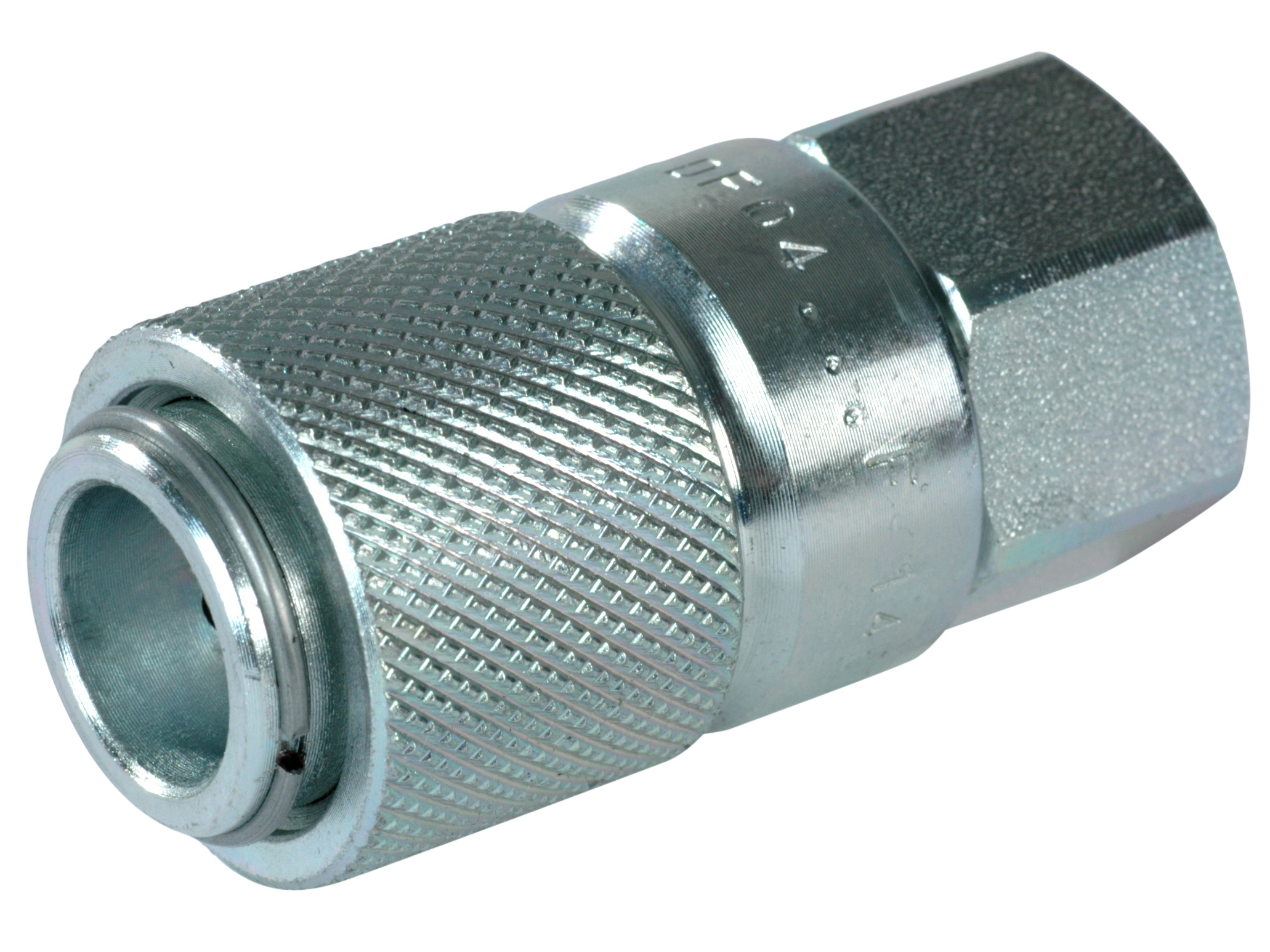

Female coupling Faster test type ISO 15171-1 female 1/4 NPT

Snabbkoppling Hona Diagnos G1/4''

Female coupling Faster test ISO 15171-1, female 1/4 NPT

Snabbkoppling Hona Diagnos NPT1/8''

Snabbkoppling Hona Diagnos UNF9/16''

Snabbkoppling Hona Diagnos DF04-M16x2

SELECT VARIANT

Partnumber	Description	Tryck max.	Flödeshastighet nominell LMin	Gänga inv.
DF04-1/14NPTF	Female coupling Faster test type ISO 15171-1 female 1/4 NPT	470 bar	2 lpm	1/4 NPT
DF04-14GASF	Snabbkoppling Hona Diagnos G1/4''	470 bar	2 lpm
DF04-14NPT-F	Female coupling Faster test ISO 15171-1, female 1/4 NPT	470 bar	2 lpm	1/4 NPT
DF04-18NPT-F	Snabbkoppling Hona Diagnos NPT1/8''	470 bar	2 lpm
DF04-9/16F	Snabbkoppling Hona Diagnos UNF9/16''	470 bar	2 lpm
DF04-M16X2	Snabbkoppling Hona Diagnos DF04-M16x2	470 bar	2 lpm

Flödeshastighet nominell LMin

Märke namn

Faster

Packningsmaterial

NBR

Sexkant

Standard ISO

ISO 15171-1

Standard SAE

SAE J1502

Storlek

1/4

Temperatur max.

+125

Temperatur min.

-25

Tillverkningsmaterial

Steel

Tryck max.

470

Tryck spräng min.

1500

Ytskiktbehandling

Zinc coating (CR III)
