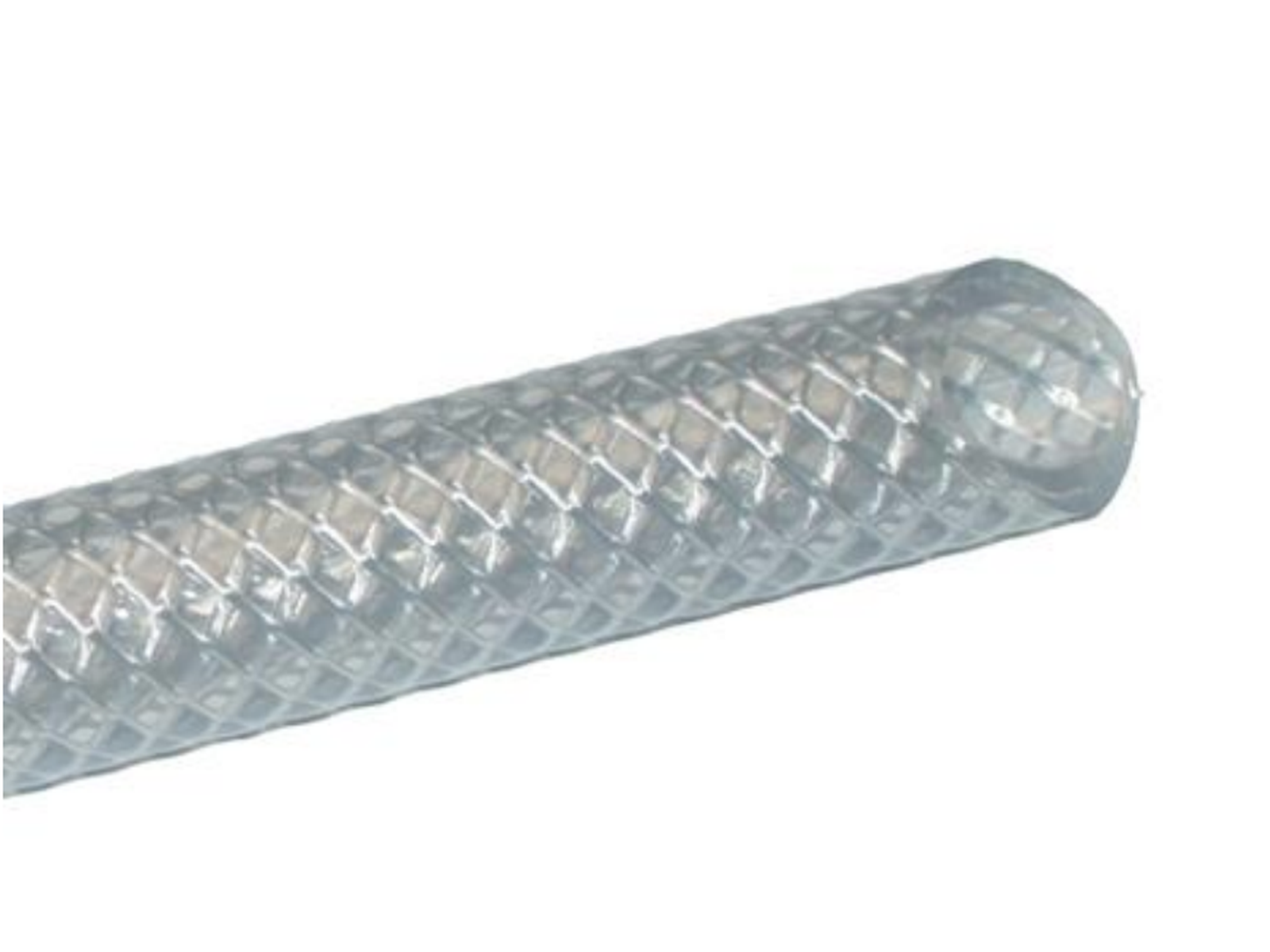

PVC hose with textile reinforcement APDatec 81

SELECT VARIANT
Partnumber Description Diameter inner Pressure max. Pressure burst min. Bend radius
PVC-05 PVC hose with with Textile reinforcement 3/16" (5x11mm)
PVC-06 PVC hose with with Textile reinforcement 1/4" (6x12mm)
PVC-08 PVC hose with with Textile reinforcement 5/16" (8x14mm) 8 mm 24 bar 72 bar 50 mm
PVC-10 PVC hose with with Textile reinforcement 3/8" (10x16mm) 10 mm 21 bar 21 bar 50 mm
PVC-16 PVC hose with with Textile reinforcement 5/8" (16x23mm) 16 mm 15 bar 45 bar 50 mm
PVC-25 PVC hose with with Textile reinforcement 1" (25x33mm) 25 mm 9 bar 27 bar 25 mm
PVC-38 PVC hose with with Textile reinforcement 1.1/2" (38x48mm) 38 mm 6 bar 18 bar 25 mm
PVC-50 PVC hose with with Textile reinforcement 2" (50x60mm) 50 mm 4 bar 12 bar 25 mm
Color
Transparent

Hoseapprovals
EU 10/2011 A, B, C.

Material
PVC

Temperature max.
+65

Temperature min.
-20
