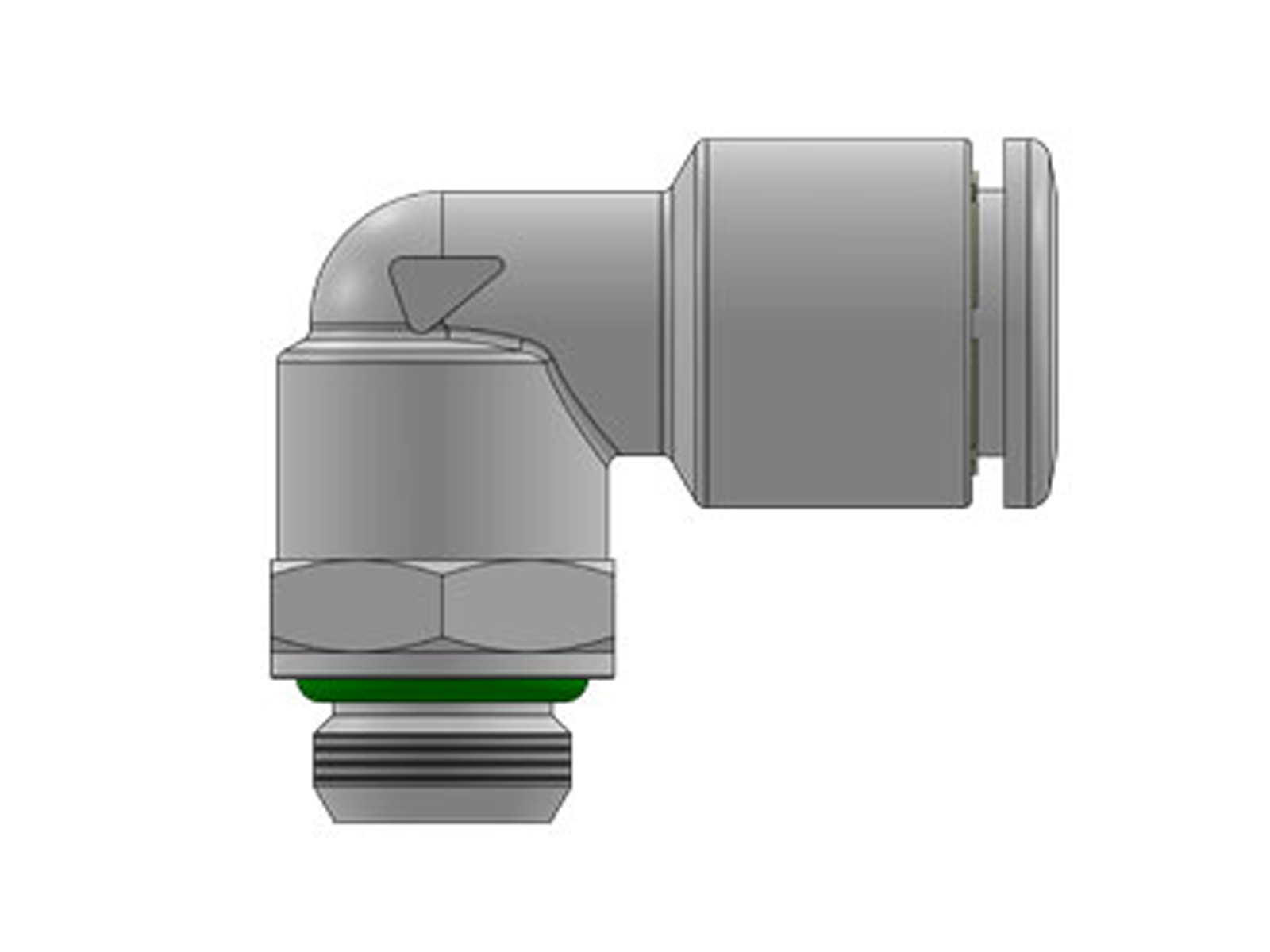

90K Push-in, 4mm rör M5, o-ring, SY

SELECT VARIANT

Partnumber	Description	Pressure max.	Vacuum max.
SXL-04G01	90K Push-in, 4mm rör G1/8, o-ring, SY	20 bar	-0.95 bar
SXL-04G02	90K Push-in, 4mm rör G1/4, o-ring, SY	20 bar	-0.95 bar
SXL-04M5	90K Push-in, 4mm rör M5, o-ring, SY	20 bar	-0.95 bar
SXL-06G01	90K Push-in, 6mm rör G1/8, o-ring, SY	20 bar	-0.95 bar
SXL-06G02	90K Push-in, 6mm rör G1/4, o-ring, SY	20 bar	-0.95 bar
SXL-06M5	90K Push-in, 6mm rör M5, o-ring, SY	20 bar	-0.95 bar
SXL-08G01	90K Push-in, 8mm rör G1/8, o-ring, SY	20 bar	-0.95 bar
SXL-08G02	90K Push-in, 8mm rör G1/4, o-ring, SY	20 bar	-0.95 bar
SXL-08G03	90K Push-in, 8mm rör G3/8, o-ring, SY	20 bar	-0.95 bar
SXL-10G02	90K Push-in, 10mm rör G1/4, o-ring, SY	20 bar	-0.95 bar
SXL-10G03	90K Push-in, 10mm rör G3/8, o-ring, SY	20 bar	-0.95 bar
SXL-12G02	90K Push-in, 12mm rör G1/4, o-ring, SY	20 bar	-0.95 bar
SXL-12G03	90K Push-in, 12mm rör G3/8, o-ring, SY	20 bar	-0.95 bar
SXL-12G04	90K Push-in, 12mm rör G1/2, o-ring, SY	20 bar	-0.95 bar

Angle

Area of use

Compressed air, Gas and liquids compatible with constituent materials, Vacuum

Brand Name

Tierre

Material

Stainless steel

Material quality

AISI 316L

Pipe Groove Dimension A

0.23

Pressure max.

REACH compliant

Yes

RoHs compliant

Yes

Sealing material

FKM/FPM (Viton®), PVDF-UHM

Standard

Silicone Free

Standard EN

DM 174/2004, EC 1935/2004, ICIM Food, ICIM Water

Standard SAE

NSF/ANSI 169

Temperature max.

+150

Temperature min.

-20

Thread ISO standard

ISO 228

Vacuum max.

-0.95
