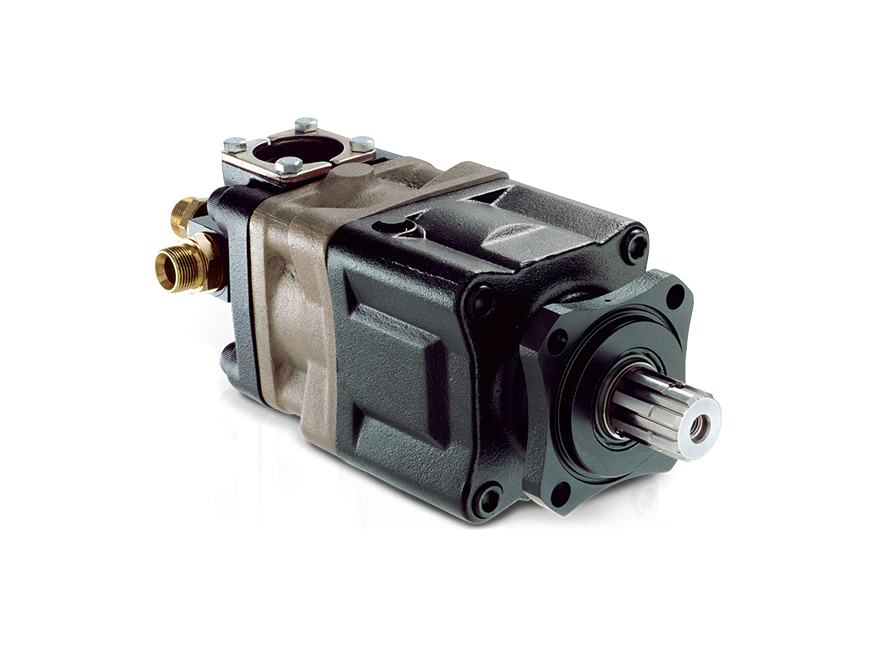

Piston pumps Sunfab - SLPD

Piston pumps Sunfab - SLPD

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Pressure continous max. Rotation direction Shaft type
SLPD-20/20W-V-DL4-L35-S4S-4 Pump Sunfab 20/20cc Savtec 20 cm3 350 bar Reversible (CW/CCW) Spline
SLPD-46/46W-V-DL4-L35-S4S-4 Pump Sunfab tvåflödes 46 cm3 330 bar Reversible (CW/CCW) Spline
SLPD-64/32W-V-DL4-L35-S4S-4 PUMP SUNFAB TVÅFLÖDES 32 cm3 350 bar Reversible (CW/CCW) Spline
Brand Name
Sunfab
Holes circle
13
Mounting flange
ISO 7653-D
Number of mounting holes
4
Outlet
G 3/4
Port inlet
Sunfab std.
Rotation direction
Reversible (CW/CCW)
Shaft spline
ISO 14 DIN 5462
Shaft type
Spline
