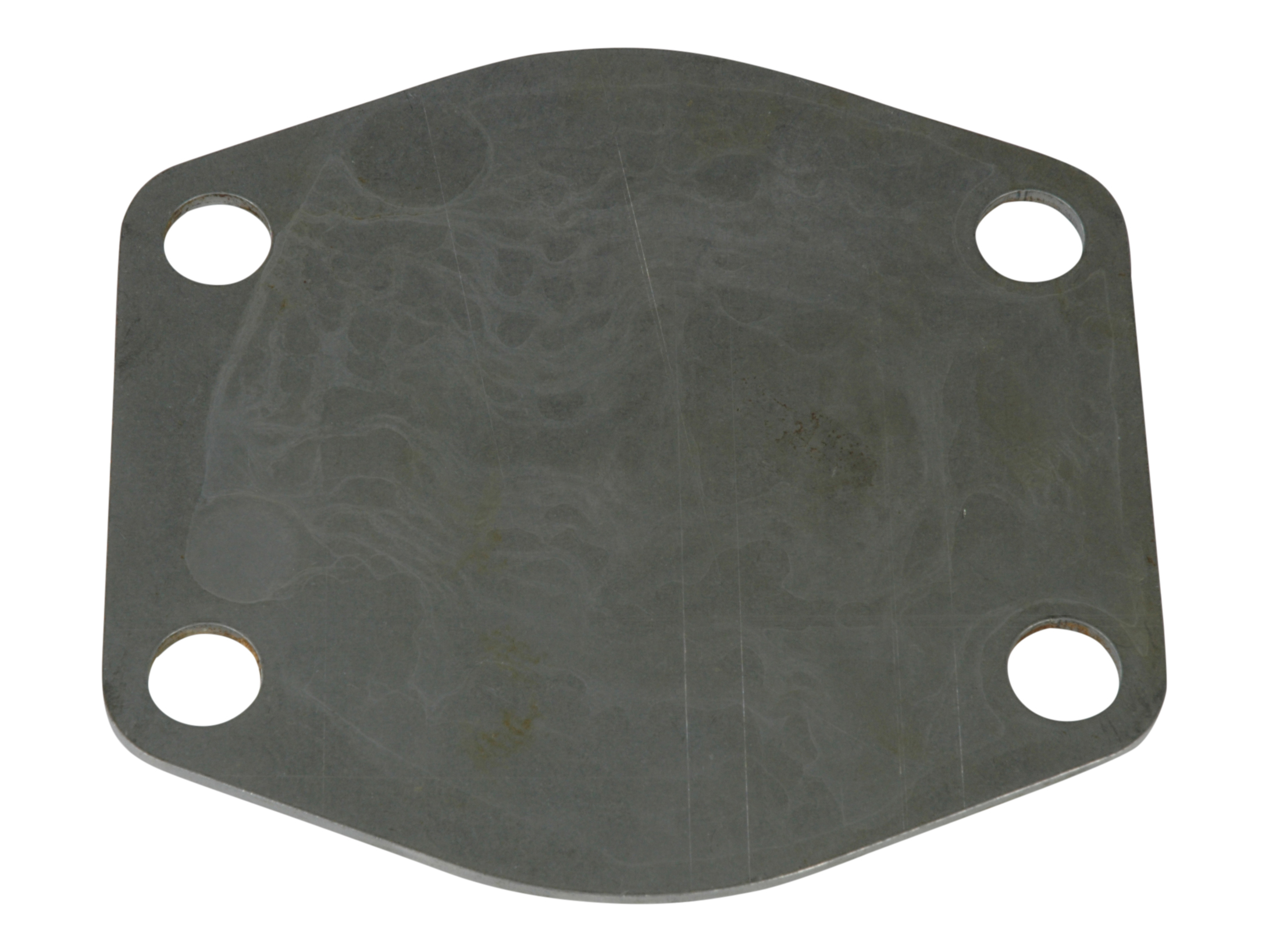

Locking sheets - SAE 6000 PSI - AP4 / CPL-6

Locking sheets - SAE 6000 PSI - AP4 / CPL-6

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange O-ring
CPL-604-M14 Täckplatta SAE6000 PSI 1.1/4 1.1/4 " 37.69X3.53 mm
CPL-605 Täckplatta SAE6000 PSI 1.1/2 1.1/2 " 47.22X3.53 mm
CPL-606 Täckplatta SAE6000 PSI 2'' 2 " 56.75X3.53 mm
Brand Name
Stauff
Flange SAE/DIN
6000 PSI
Material
Steel
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Blank (oiled)
Temperature max.
+120
Temperature min.
-40
