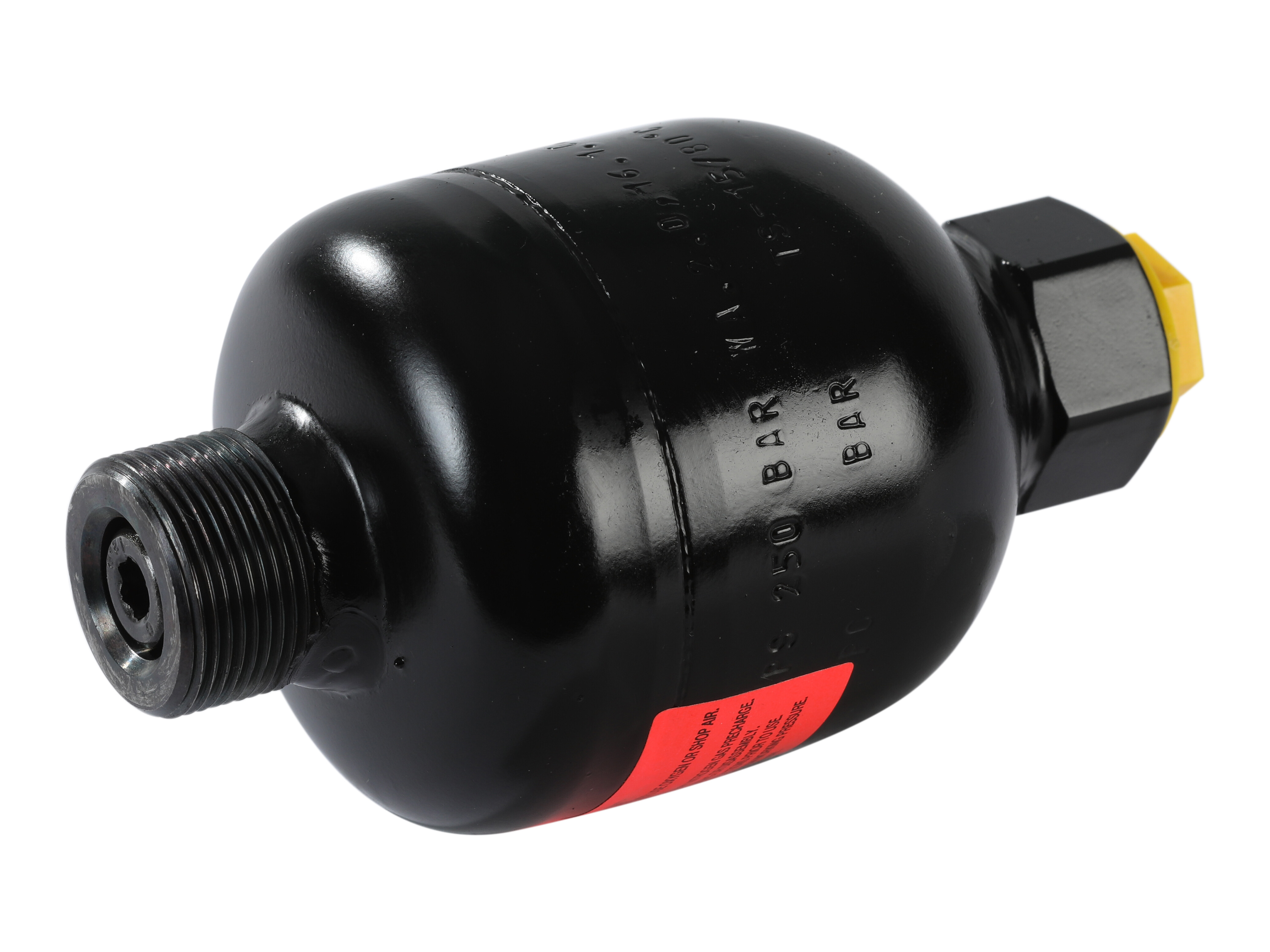

Membrane accumulator ECO 0.16 L - 1/2" Female - M28x1.5 Male

WA diaphragm accumulator (0.16 L) for 250 bar. Suitable for industrial and mobile hydraulic systems requiring energy storage, pulse damping and pressure compensation. Connection: G1/2".

Advantages

  • High energy density thanks to compact, spherical design
  • Efficient for pressure surge damping, vibration and leak compensation
  • Light weight and mountable in all positions
  • Compliant with PED 2014/68/EU and EN 14359:2017

Typical applications

  • Mobile machinery such as tractors and construction equipment
  • Suspension and emergency braking systems
  • Machine tools and automated systems
  • Hydraulic systems with pulsating flow or temperature fluctuations

Supplied without nitrogen precharge. For pre-charging we offer customized solutions - please contact sales.

Partnumber:
WA016080

Package size:
1 st

Min. order quantity is:
1 st
Anslutningsgänga
G1/2"

Diameter
69 mm

Dimension A
81.7 mm

Dimension B
69 mm

Dimension CH
30 mm

Dimension E
15 mm

Dimension d
20 mm

Flow max. rekommenderad
10 lpm

Gasventil
M28X1.5

Längd
81.7 mm

Märke namn
Saip

Separatorelement
ECO

Temperatur max.
+120 °C

Temperatur min.
-30 °C

Teststandarder
PED 2014/68/EU, EN 14359:2017, EN13445-3:2021

Tillverkningsmaterial
Carbon steel

Tryck max.
250 bar

Tryckskillnad förhållande max.
8:1

Typ
Membrane

Volym
0.16 ltr
Package size
1 st

Barcode
369207

Gross weight
Kg

Net weight
Kg

Country of origin
ITA

Intrastat code
73110091

WA diaphragm accumulator (0.16 L) for 250 bar. Suitable for industrial and mobile hydraulic systems requiring energy storage, pulse damping and pressure compensation. Connection: G1/2".

Advantages

  • High energy density thanks to compact, spherical design
  • Efficient for pressure surge damping, vibration and leak compensation
  • Light weight and mountable in all positions
  • Compliant with PED 2014/68/EU and EN 14359:2017

Typical applications

  • Mobile machinery such as tractors and construction equipment
  • Suspension and emergency braking systems
  • Machine tools and automated systems
  • Hydraulic systems with pulsating flow or temperature fluctuations

Supplied without nitrogen precharge. For pre-charging we offer customized solutions - please contact sales.
