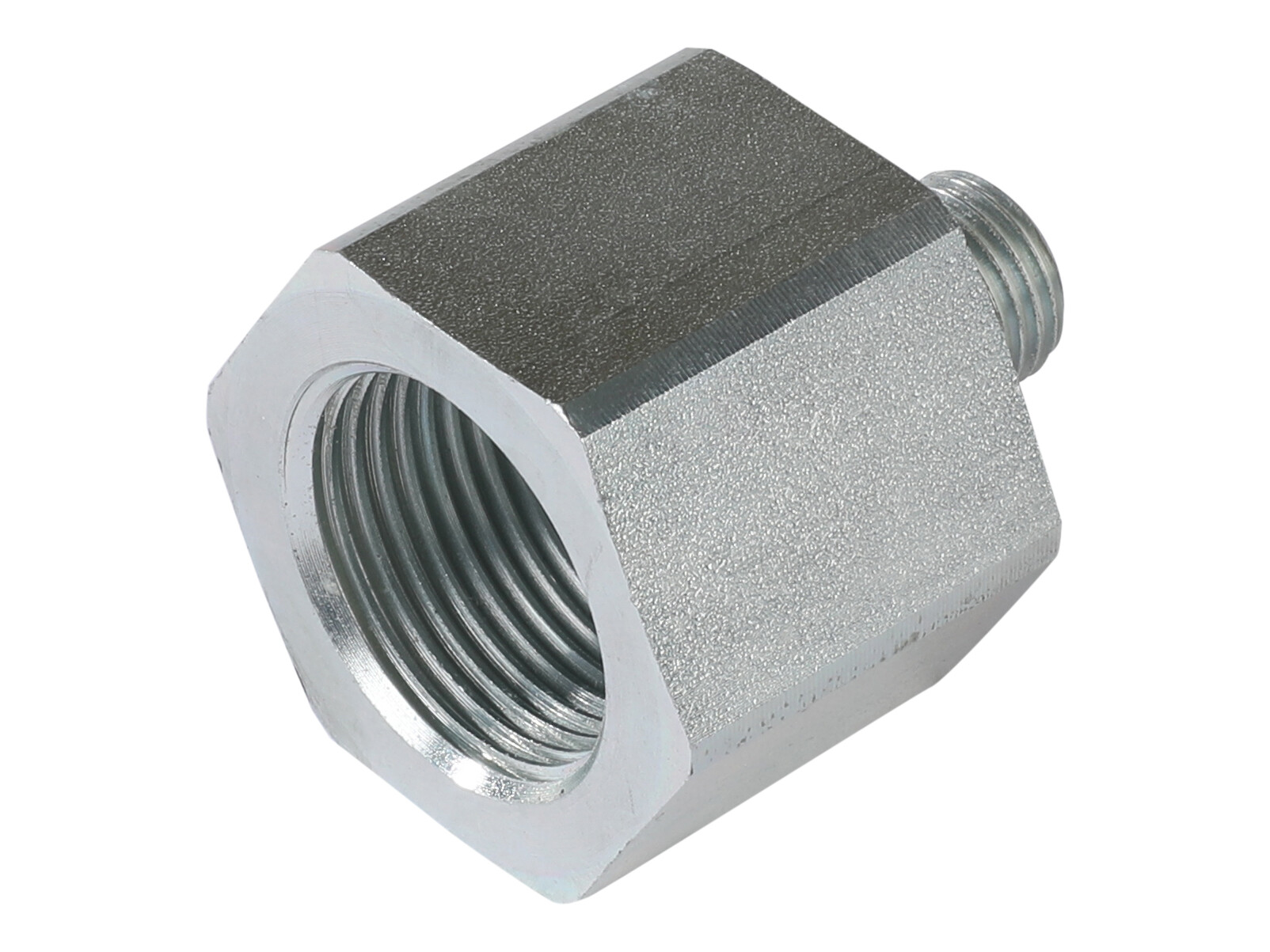

Reduction - 1/4" BSP x 3/4" BSP female - WD seal
Thread reducer for adapting between two BSPP (Whitworth parallel) thread sizes in hydraulic and fluid power lines. One side has a G 1/4 male thread and the other side a G 3/4 female thread.
Sealing is via a profile sealing ring in NBR, helping to create a sealed connection at the interface. The body is zinc-nickel plated and specified for pressures up to 630 bar within a temperature range of -35 to +100.
Typical Applications
- Adapting port and line connections where BSPP thread sizes differ
- Hydraulic manifolds, valves, cylinders, and other components using BSPP ports
Artikelnummer:
RI-14-34ED
Förpackningsstorlek:
40 pcs
Minsta beställningskvantitet:
1 pcs
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
D2
5 mm
Hexagon
36 mm
L1
43 mm
L2
22 mm
Length
43 mm
Material
Steel
Model code
FI-RED-R1/4-WD-R3/4-B-W3
Pressure max.
630 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
36 mm
Safety factor
4
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T1
G 1/4 BSP
Thread T2
G 3/4 BSP
Thread inner
G 3/4 BSP
Thread outer
G 1/4 BSP
Total length
43 mm
Type
Long
i
12 mm
Förpackningsstorlek
40 pcs
Streckkod
130501
Bruttovikt
0,17 Kg
Nettovikt
0,17 Kg
Ursprungsland
DEU
Intrastat artikelkod
73071110
Thread reducer for adapting between two BSPP (Whitworth parallel) thread sizes in hydraulic and fluid power lines. One side has a G 1/4 male thread and the other side a G 3/4 female thread.
Sealing is via a profile sealing ring in NBR, helping to create a sealed connection at the interface. The body is zinc-nickel plated and specified for pressures up to 630 bar within a temperature range of -35 to +100.
Typical Applications
- Adapting port and line connections where BSPP thread sizes differ
- Hydraulic manifolds, valves, cylinders, and other components using BSPP ports
