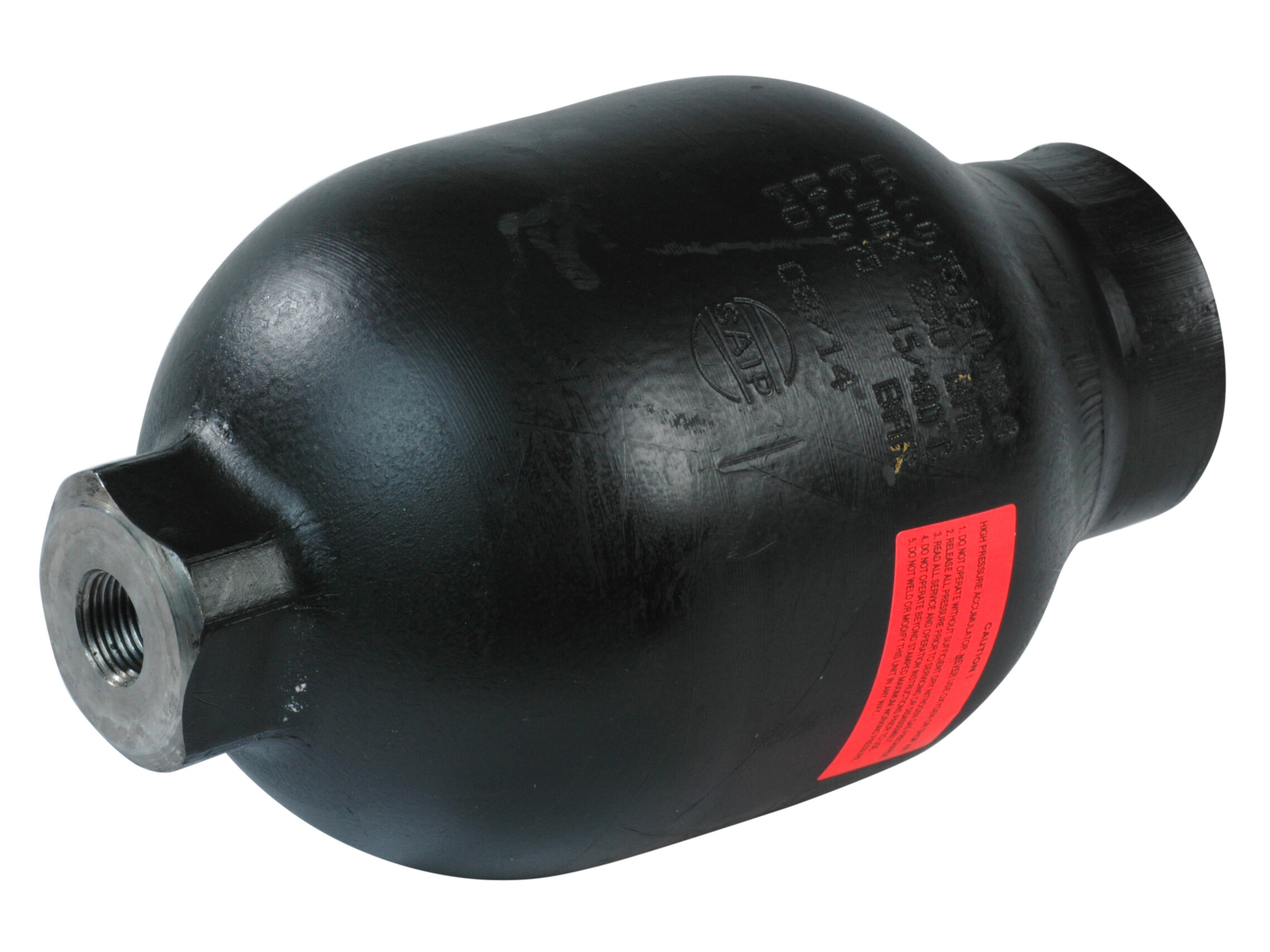

Saip bladder accumulator 0,75 L 250 bar 6:1 M18x1,5

Compact Saip bladder accumulator (0.75 L) for 250 bar with replaceable bladder. Suitable for hydraulic systems with high flow and large pressure fluctuations. Connection: M18x1.5. Gas valve: 5/8" UNF.

Advantages

  • Replaceable bladder
  • Can be mounted vertically or horizontally
  • Carbon steel shell with zinc coating
  • PED-approved
  • Suitable for pressure compensation and energy storage

Delivered without nitrogen precharge.
For precharging, we offer customized solutions – contact our sales department.

Partnumber:
LA0.75

Package size:
1 st

Min. order quantity is:
1 st
Brand Name
Saip

Connection Thread
M18x1.5

Diameter
116 mm

Dimension A
192 mm

Dimension C
41 mm

Dimension ØB
65 mm

Dimension ØD
116 mm

Gas valve
5/8" UNF, Plug

Length
192 mm

Material
Carbon steel, zinc coated 25 μm

Mount
Install horizontally or vertically with gas valve upwards

Precharge pressure
2 bar

Pressure difference ratio max.
6:1

Pressure max.
250 bar

Separating Element
NBR (-20 °C to +100 °C)

Temperature max.
+80 °C

Temperature min.
-40 °C

Test Standards
PED 2014/68/EU, Article 4.3

Type
Bladder

Volume
0.75 ltr
Package size
1 st

Barcode
442576

Gross weight
4,35 Kg

Net weight
4,35 Kg

Country of origin
ITA

Intrastat code
73110091

Compact Saip bladder accumulator (0.75 L) for 250 bar with replaceable bladder. Suitable for hydraulic systems with high flow and large pressure fluctuations. Connection: M18x1.5. Gas valve: 5/8" UNF.

Advantages

  • Replaceable bladder
  • Can be mounted vertically or horizontally
  • Carbon steel shell with zinc coating
  • PED-approved
  • Suitable for pressure compensation and energy storage

Delivered without nitrogen precharge.
For precharging, we offer customized solutions – contact our sales department.
