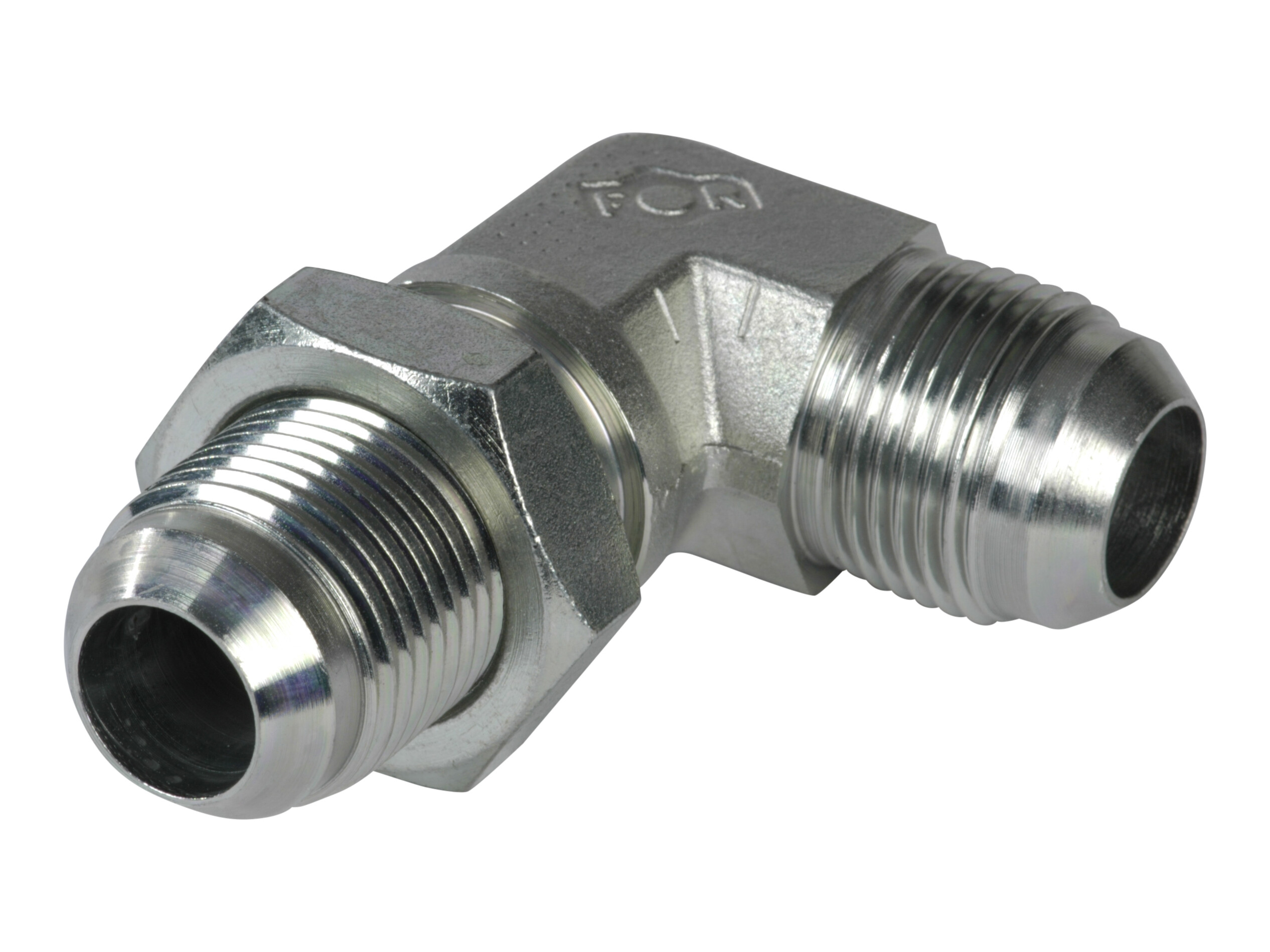

S650-20U bulkhead elbow

Artikelnummer:

JWSV-12

Förpackningsstorlek:

1 st

Minsta beställningskvantitet:

1 st

Specifications
Dimensions and shipping

Diameter rör

20 mm

Dimension B

45 mm

Dimension C

68 mm

Dimension CH

36 mm

Dimension D

42.5 mm

Dimension J

1.1/16-12 JIC

Dimension J1

1.1/16-12 JIC

Dimension T

20 mm

Dimension T1

20 mm

Gänga utv.

1.1/16-12 JIC

Märke namn

FOR

Rostbeständighet

1400 hours salt spray DIN EN ISO 9227

Tillverkningsmaterial

Steel

Tryck max.

300 bar

Vinkel

90 °

Ytskiktbehandling

Electro-galvanized / White chromatized

Package size

1 st

Barcode

144363

Gross weight

0,35 Kg

Net weight

0,35 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S650-20U bulkhead elbow

Note: Opening 3D files requires a program that supports the file format
