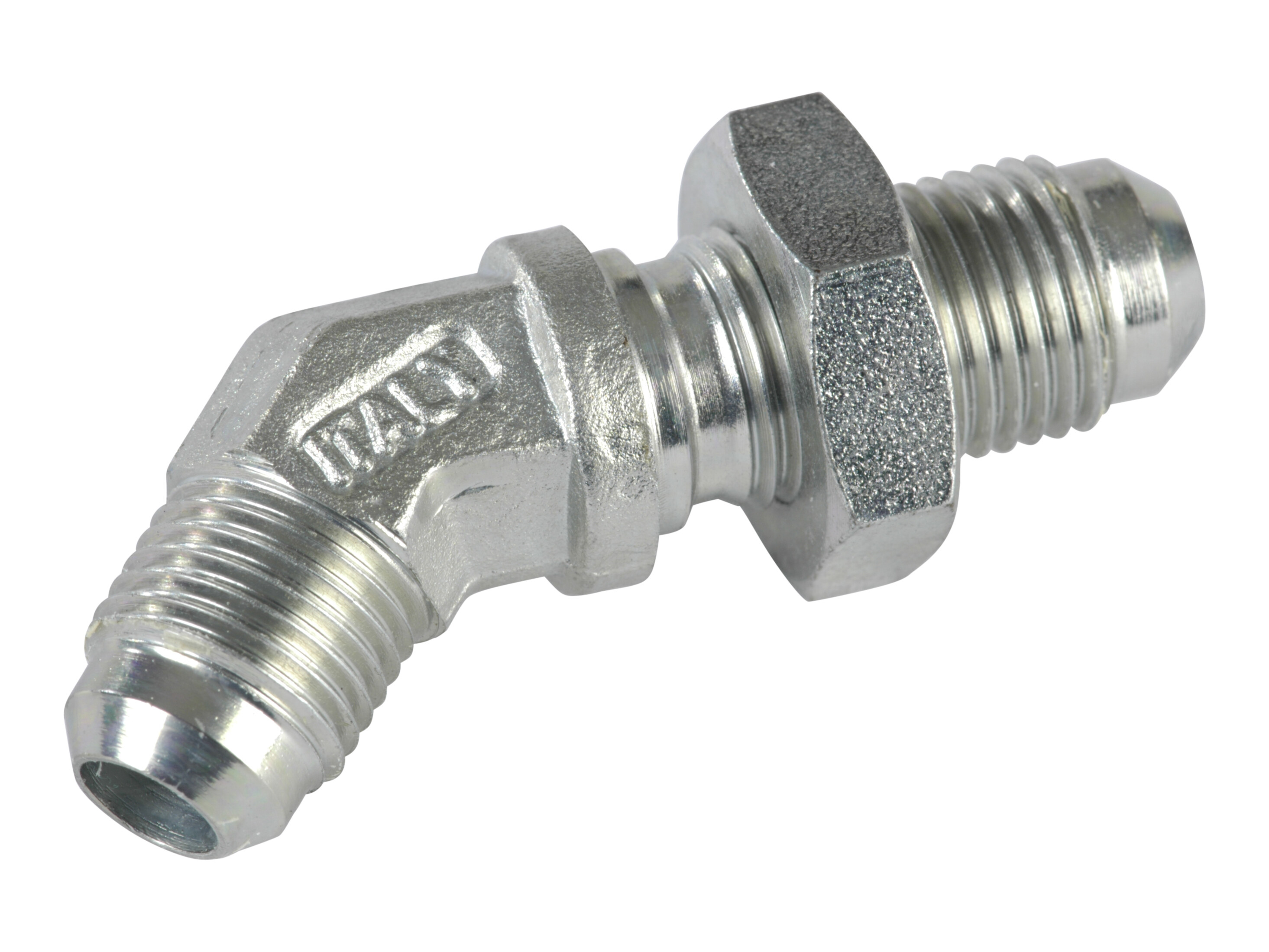

S665-10-45U bulkhead elbow
\ufeff
-
JIC 37° external thread 45° feed-through connector
- Connector includes locking nut
Partnumber:
JVSV-06
Package size:
20 st
Min. order quantity is:
1 st
Angle
45 °
B
21 mm
Brand Name
Hydraspecma
C
42,5 mm
CH
22 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
30 mm
Diameter pipe
10 mm
Dimension J1
9/16-18 JIC
J
9/16-18 JIC
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
T
10 mm
T1
10 mm
Thread outer
9/16-18 JIC
Package size
20 st
Barcode
144284
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° external thread 45° feed-through connector
- Connector includes locking nut
Note: Opening 3D files requires a program that supports the file format
