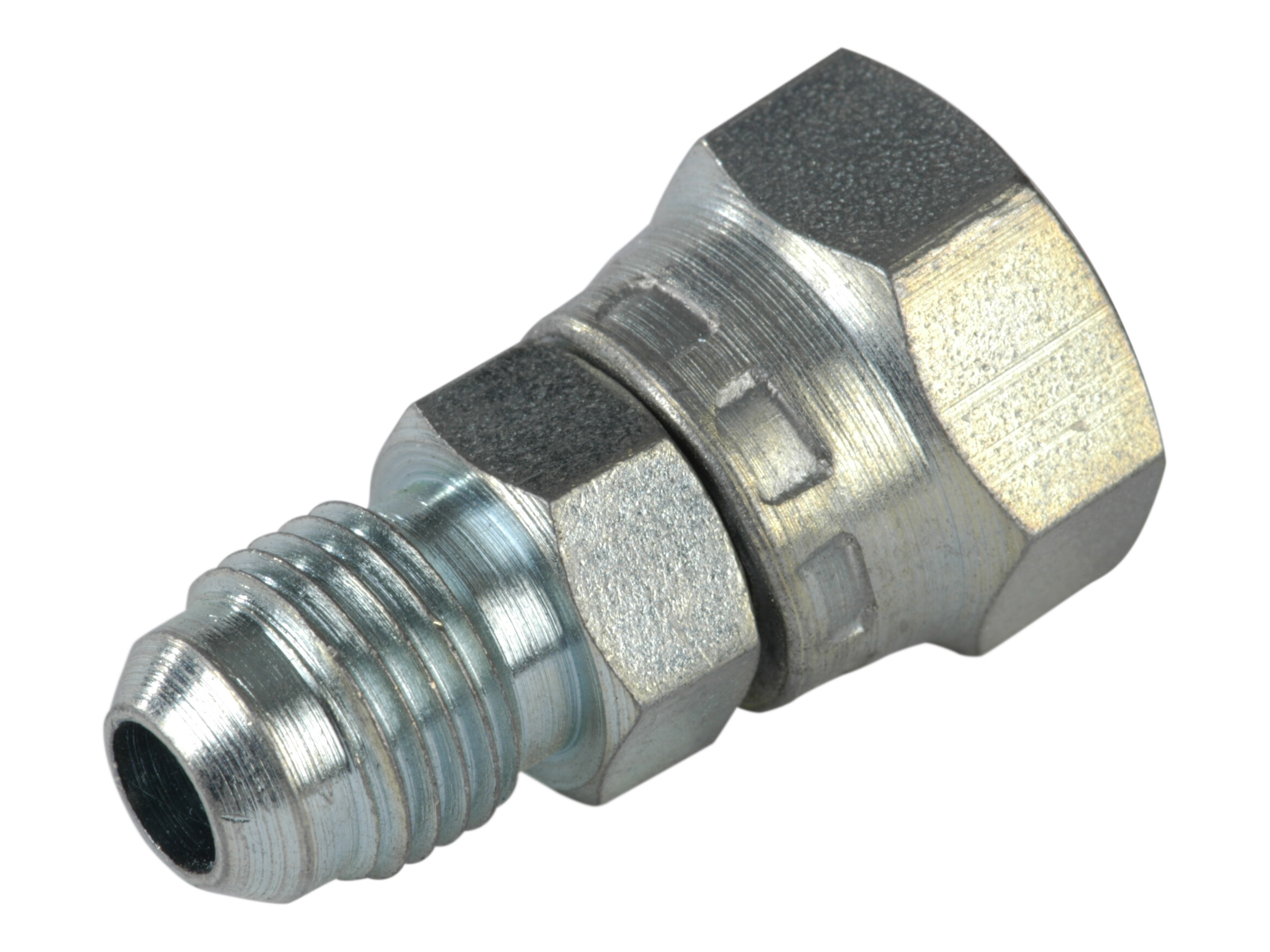

JIC 37° male straight connector
- Female solid (BSPP)
Partnumber:
JGAI-05-04
Package size:
10 st
Min. order quantity is:
1 st
A
35,5 mm
Angle
0 °
B
14 mm
Brand Name
FOR
CH
19 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
21,5 mm
Diameter pipe
8 mm
F
G 1/4 BSP
J
1/2-20 JIC
Material
Steel
Pressure max.
416 bar
Surface treatment
Electro-galvanized / White chromatized
T
8 mm
Thread inner
G 1/4 BSP
Thread outer
1/2-20 JIC
Package size
10 st
Barcode
143871
Gross weight
0,04 Kg
Net weight
0,04 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° male straight connector
- Female solid (BSPP)
