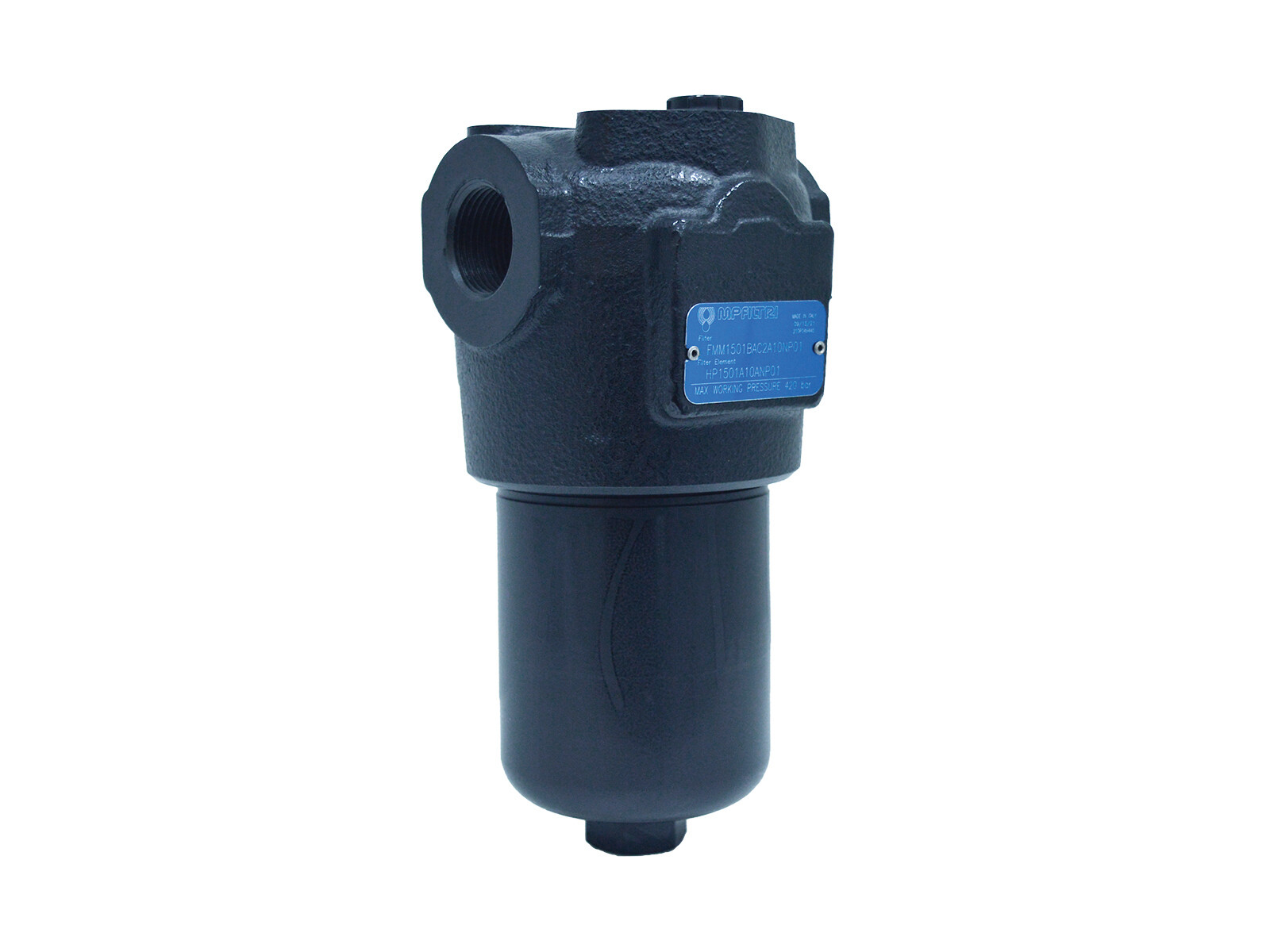

Painesuodatin A10 R1" 156l/min

FMM is a range of versatile high-pressure filter for protection of sensitive components in high pressure hydraulic systems in the mobile machines. They are directly connected to the lines of the system through the hydraulic fittings. And should be installed with a clearance under the filter allowing the filter element to be changed.

Available features:

Female threaded connections up to 1 1/4”, for a maximum flow rate of 250 l/min
Fine filtration rating, to get a good cleanliness level into the system
Bypass valve, to relieve excessive pressure drop across the filter media. And ensure flow, even if the filter element is clogged
Low collapse filter element “N”, for use with filters provided with bypass valve
Visual, electrical and electronic differential clogging indicators

Common applications:

Agricultural machines
Mobile machines

Partnumber:

FMM1501BAC2A10NP01

Package size:

1 st

Min. order quantity is:

1 st

Specifikationer
Dimensioner och frakt

Dimension H

230 mm

Filtreringsgrad

10 my

Flow Nominel

156 lpm

Gevind

G 1 BSP

Model kode

FMM1501BAC2A10NP01

Mærke navn

MP Filtri

Temperatur maks.

+110 °C

Temperatur min.

-25 °C

Totallængde

230 mm

Tryk maks.

420 bar

Förpackningsstorlek

1 st

Streckkod

396683

Bruttovikt

7,50 Kg

Nettovikt

7,50 Kg

Ursprungsland

Produktinformation
Måttskiss

Available features:

Female threaded connections up to 1 1/4”, for a maximum flow rate of 250 l/min
Fine filtration rating, to get a good cleanliness level into the system
Bypass valve, to relieve excessive pressure drop across the filter media. And ensure flow, even if the filter element is clogged
Low collapse filter element “N”, for use with filters provided with bypass valve
Visual, electrical and electronic differential clogging indicators
