Banjokoppling Ø6 1/8''
Banjokoppling Ø6 1/8''
Partnumber:
C0A510618
Package size:
10 st
Min. order quantity is:
1 st
Area of use
Compressed air, Vacuum
Brand Name
Tierre

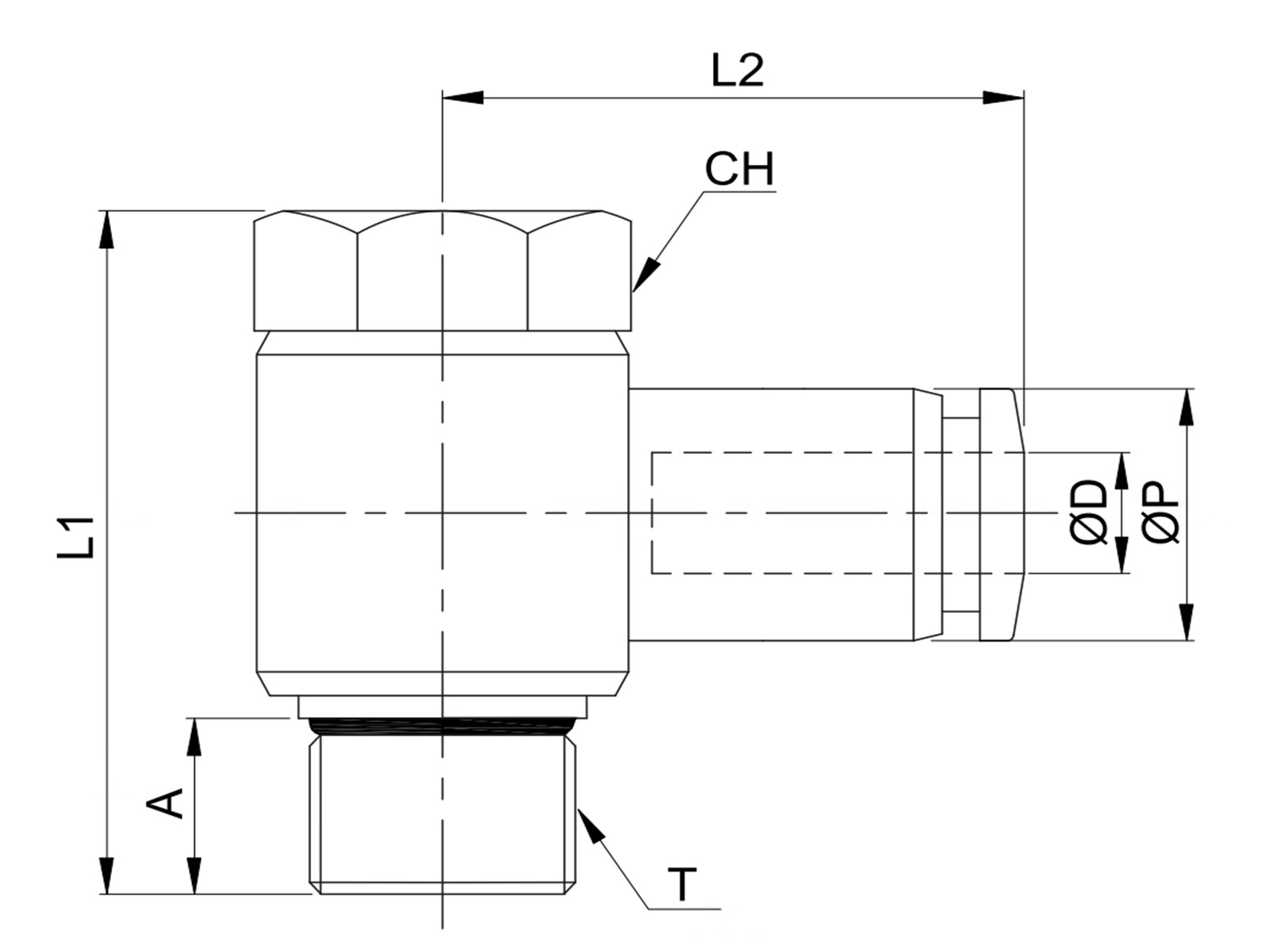

Dimension A
5 mm
Dimension CH
10 mm
Dimension L1
22.5 mm
Dimension L2
23.1 mm
Dimension T
G 1/8 BSP
Dimension ØD
6 mm
Dimension ØP
13 mm
Material
Brass, PBT-plast, POM(Acetal), Stainless steel, Zinc
Model code
WTRH06G01
Pressure max.
16 bar
Sealing material
NBR
Series
Pneufit C
Temperature max.
+80 °C
Temperature min.
-20 °C
Thread
G 1/8 BSP
Torque tightening
10 Nm
Tube Insertion Depth
16.5 mm
Tube Tollerance
± 0,1 mm
Vacuum max.
-0.9 bar
Package size
10 st
Barcode
255962
Gross weight
Kg
Net weight
Kg
Country of origin
swe
Banjokoppling Ø6 1/8''
