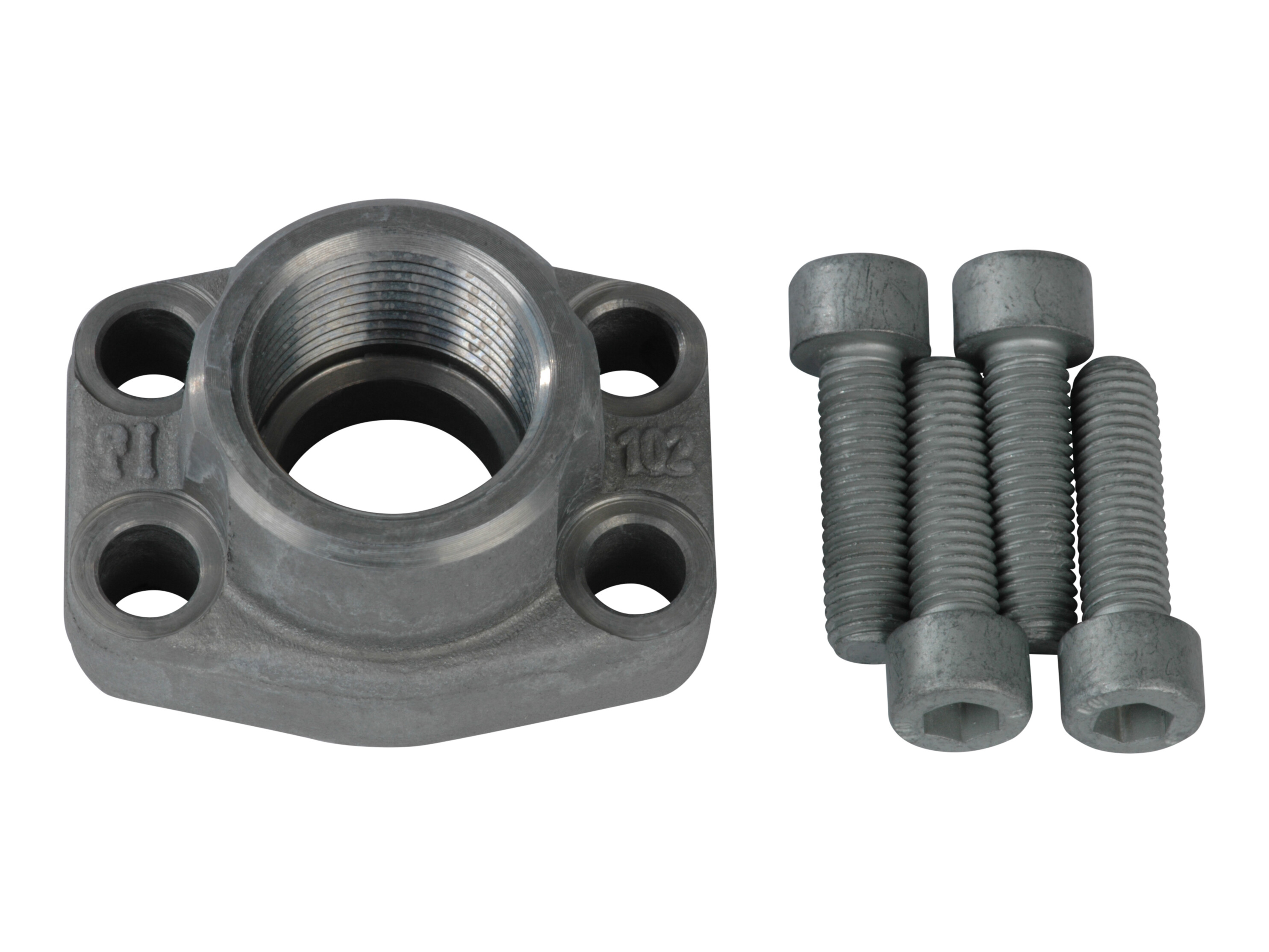

Threaded flange 1" SAE3000 x 1" BSP - complete
Threaded flange 1" SAE3000 x 1" BSP - complete
Artikelnummer:
8310-16-16-KM
Förpackningsstorlek:
1 Set
Minsta beställningskvantitet:
1 Set
A
G 1 BSP
Angle
0 °
B
25 mm
Bolt dimension
M10x35 mm
Brand Name
Havit
C
52,4 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
D
70 mm
Diameter flange
44.5 mm
E
26,2 mm
F
55 mm
Flange
1 "
Flange SAE/DIN
3000 PSI
G
38 mm
H
18 mm
I
22 mm
L
11 mm
M
M10x35
Material
Steel
Number of bolts
4
O-ring
32,93X3,53 mm
Pressure max.
320 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Förpackningsstorlek
1 Set
Streckkod
110362
Bruttovikt
0,56 Kg
Nettovikt
0,56 Kg
Ursprungsland
DEU
Intrastat artikelkod
73079100
