Pump JR-R-S45B-BS-30-20-NN-N-3-C2RF-A8N-FFF-JJJ-NNN
Pump JR-R-S45B-BS-30-20-NN-N-3-C2RF-A8N-FFF-JJJ-NNN
Artikelnummer:
83039553
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
AuxMount/EndCap code
RF
Brand Name
Danfoss
Contamination level max.
22/18/13 - ISO 4406
Continuous rotation max.
2800 rpm

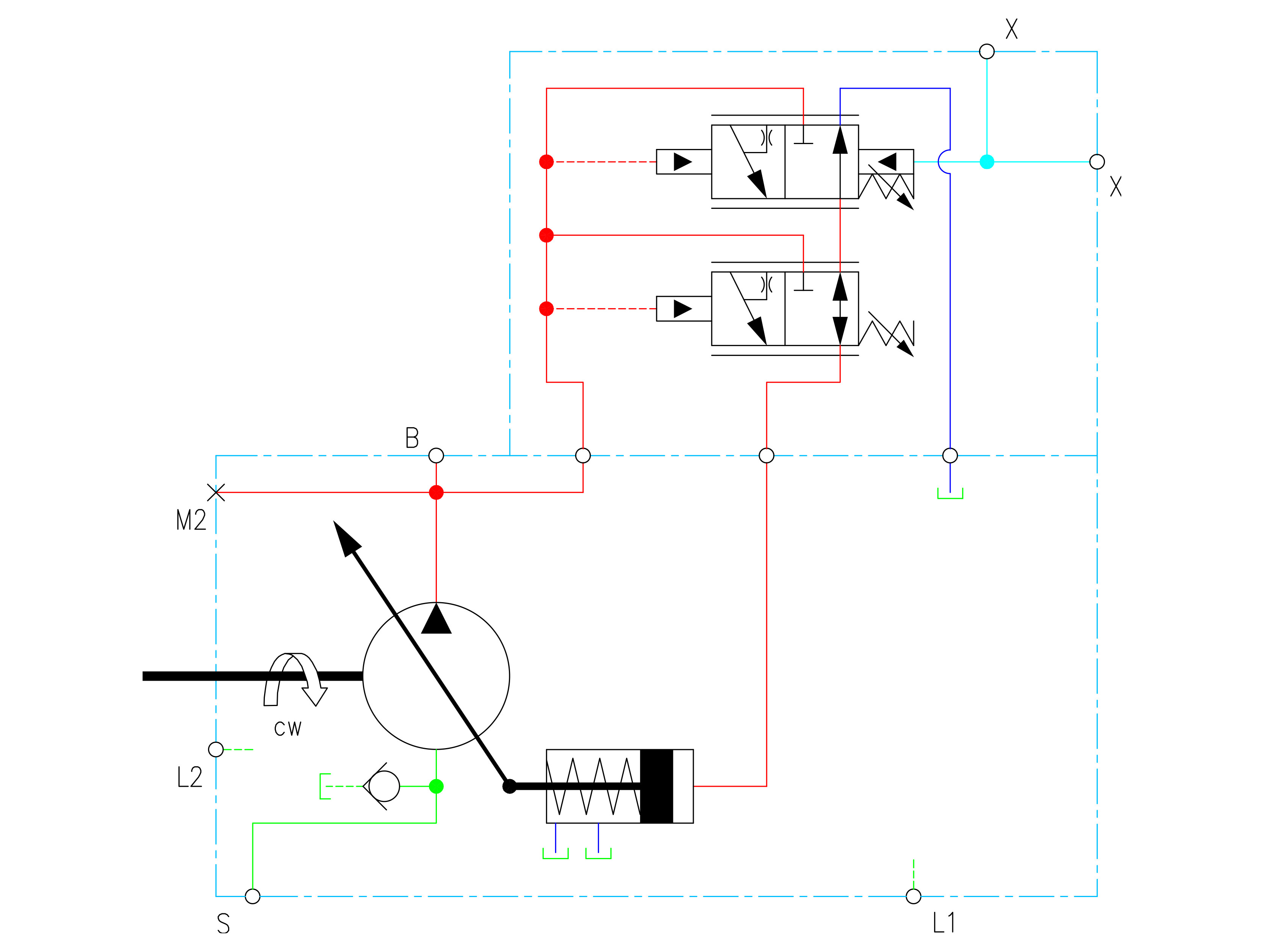

Control
Load sensing
Control type
BS
Displacement
45 cm3
Displacement limiter
Adjustable
Flange SAE/DIN
3000 PSI
Flange inlet
2 "
Flange outlet
1 "
Holes circle
146 mm
Model
Frame J
Model code
JR-R-S45B-BS-30-20-NN-N-3-C2RF-A8N-FFF-JJJ-NNN
Mounting flange
SAE-B2
Number of mounting holes
2
Number of outer grooves
13
Oil viscocity recommended
9 - 110 cSt
Port position
Side
Pressure continous max.
310 bar
Pressure max.
400 bar
Recess
101,6 mm
Rotation direction
Right (CW)
Rotation max. at max. pressure
2600 rpm
Rotational speed max.
3360 rpm
Rotational speed min.
500 rpm
Sensor type
None
Shaft code
C2
Shaft diameter
21,8 mm
Shaft seal material
FKM/FPM (Viton®)
Shaft spline
13T 16/32 SAE-B
Temperature intermittent max.
+104 °C
Temperature max.
+82 °C
Temperature min.
-40 °C
Package size
1 st
Barcode
334144
Gross weight
Kg
Net weight
Kg
Country of origin
Intrastat code
84135061
Pump JR-R-S45B-BS-30-20-NN-N-3-C2RF-A8N-FFF-JJJ-NNN
