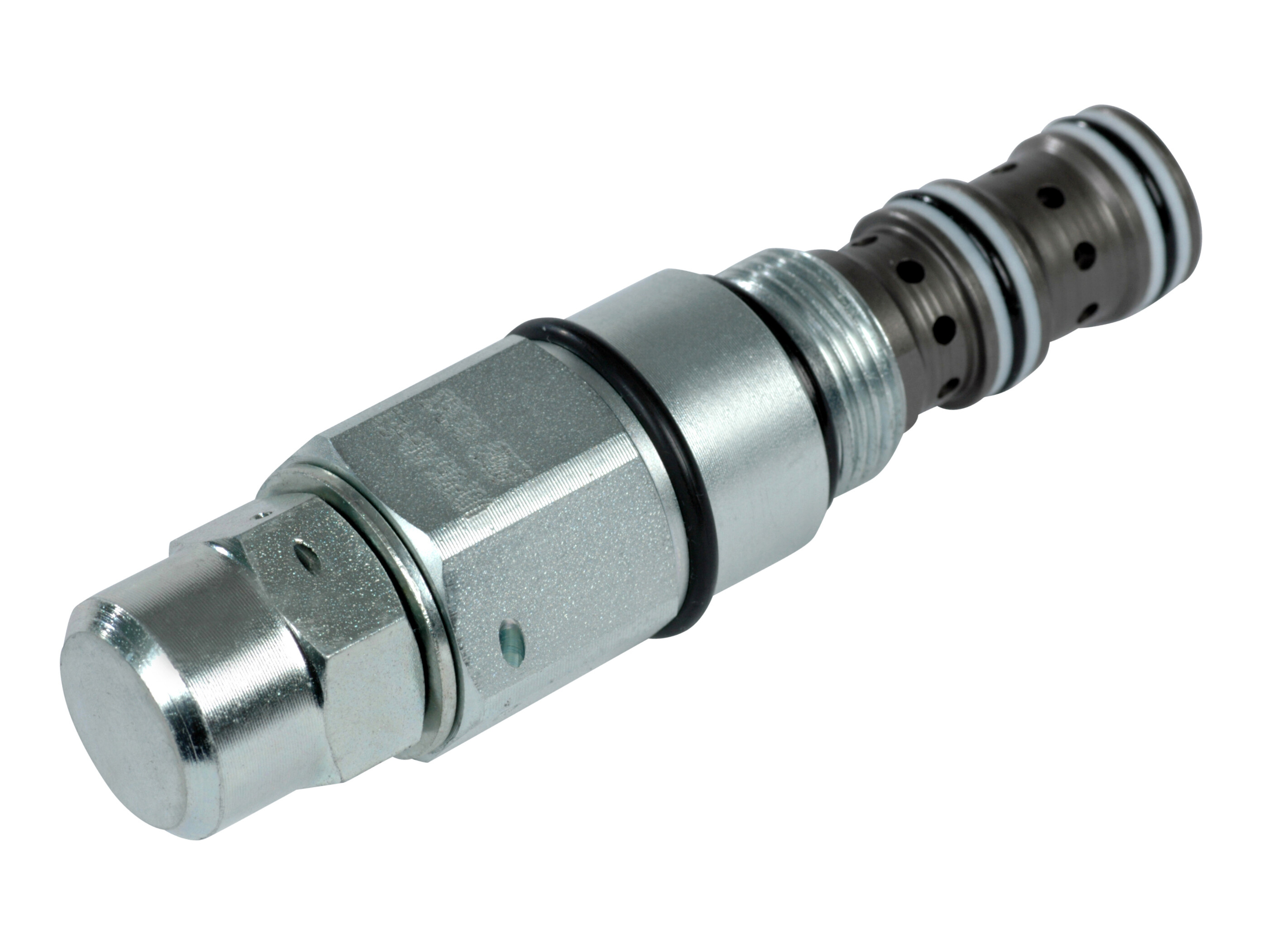

DIRECTIONAL CONTROL VALVE VDP 06/NA-E-1-00-XXX
CDP 06/NA, Sequence Valve, Normally Open, Spool Type, Hydraulic Pilot, Atmospheric Vent
This is a hydraulically pilot operated spool valve, normally open from port 2 to 3 with an atmospheric vent. When the pilot pressure on port 1 reaches the setting, the valve will begin to close port 2 to 3. This is ideal for sensing pressure in a remote area of a circuit to stall another operation.
Partnumber:
800276729
Package size:
1 st
Min. order quantity is:
1 st
Flödeshastighet nominell LMin
25 lpm
Föroreningsgrad max.
20/18/14 - ISO 4406
Kavitet
NCS06/3
Modell kod
VDP06/NA-E-1-00-XXX
Märke namn
Danfoss
Nyckelstorlek
27 mm
Oljeviskositet rekommanderad
12 - 54 cSt
Packningsmaterial
NBR
Tryck max.
315 bar
Tryckinställning max.
40 bar
Tryckinställning min.
15 bar
Åtdragning moment
45 - 50 Nm
Package size
1 st
Barcode
374699
Gross weight
0,26 Kg
Net weight
0,26 Kg
Country of origin
Intrastat code
84812010
CDP 06/NA, Sequence Valve, Normally Open, Spool Type, Hydraulic Pilot, Atmospheric Vent
This is a hydraulically pilot operated spool valve, normally open from port 2 to 3 with an atmospheric vent. When the pilot pressure on port 1 reaches the setting, the valve will begin to close port 2 to 3. This is ideal for sensing pressure in a remote area of a circuit to stall another operation.
