Insats WEO Plug-In 1/4''
WEO PLUG-IN INSATS DN06 NBR
Partnumber:
800-04-00
Package size:
88 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Cejn

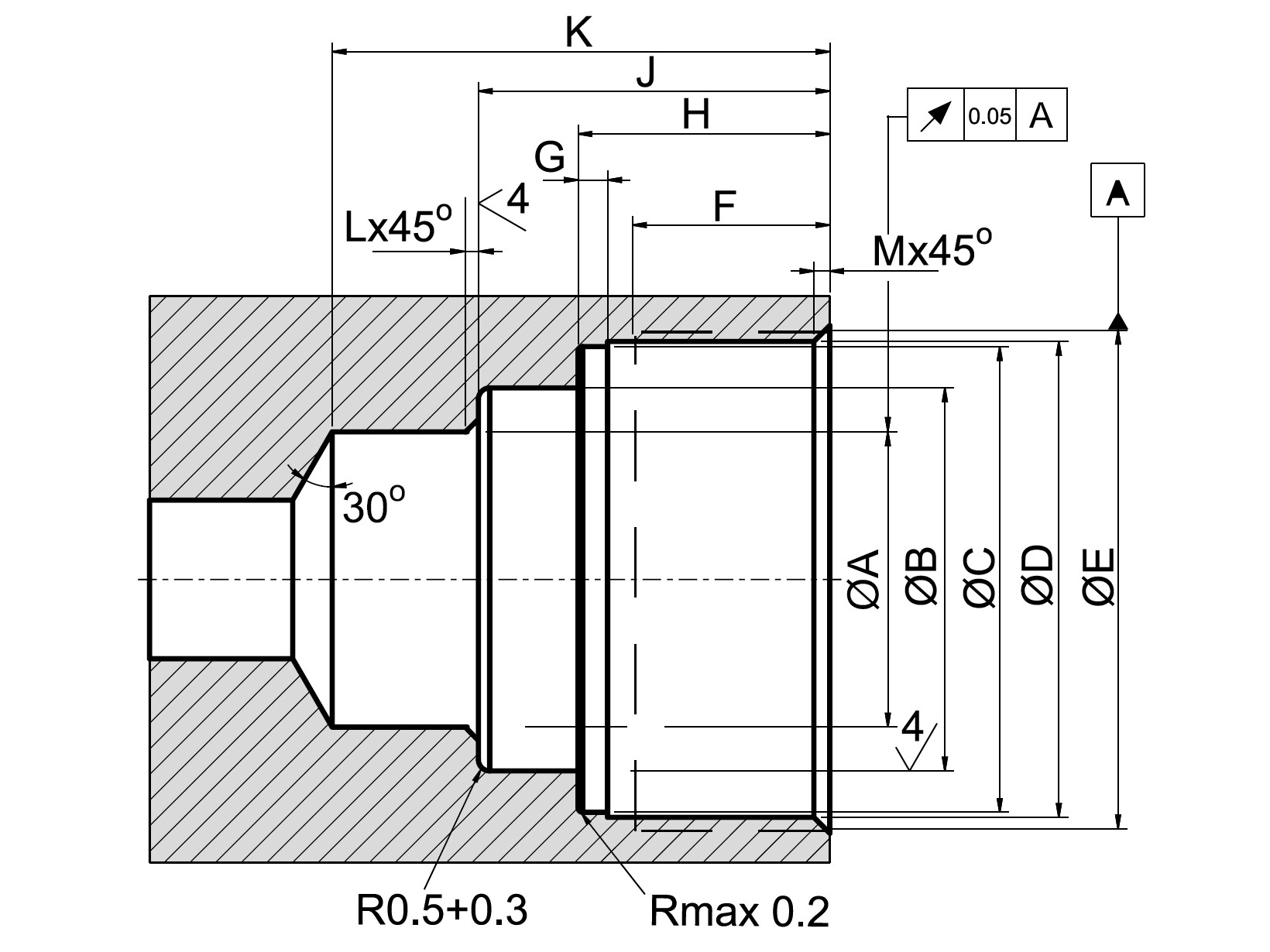

Dimension A
10.03 mm
Dimension B
12.75 mm
Dimension C
16.55 mm
Dimension D
17 mm
Dimension F
8.5 mm
Dimension G
1.1 mm
Dimension H
10.65 mm
Dimension J
14.15 mm
Dimension K
19.65 mm
Material
Steel
Pressure max.
350 bar
Safety factor
4
Sealing material
NBR
Surface treatment
Electro zinc plated
Temperature intermittent max.
+120 °C
Temperature max.
+100 °C
Temperature min.
-30 °C
WEO plug-in
1/4 "
Package size
88 st
Barcode
226331
Gross weight
Kg
Net weight
Kg
Country of origin
swe
WEO PLUG-IN INSATS DN06 NBR
