Insert 1/4" - M14x1.5 nut 08L 90°

Insert with MM female thread in nut and 24° cone face.

Connection: MM female thread and 24° cone face (DIN2353).

Sealing: Cone face against cutting ring / cone face.

Varenummer:

4793-08-04

Pakke str.:

1 st

Min. bestillingsenhed er:

1 st

Specifications
Dimensions and shipping

Diameter rør

8 mm

Dimension C

25 mm

Dimension E

17 mm

Dimension H

25 mm

Dimension T metrisk

M14x1,5

Materiale

Steel

Model kode

0135-04-14

Mærke navn

I.M.M Hydraulics

Overfladebehandling

Electro-galvanized / White chromatized

Serie

Slangekoblingstype

For separate ferrule

Slangestørrelse

1/4 "

Tilspændingsmoment

26 Nm

Vinkel

90 °

Package size

1 st

Barcode

325567

Gross weight

0,04 Kg

Net weight

0,04 Kg

Country of origin

ITA

Intrastat code

73269098

Product information

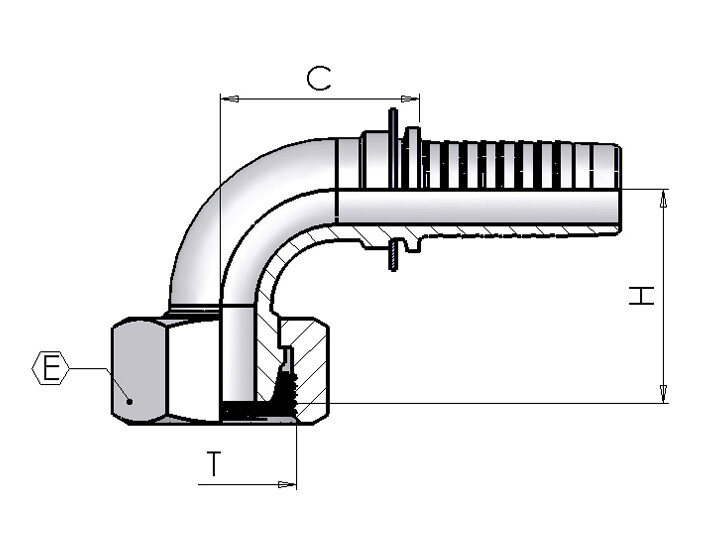

Measure sketch

Insert with MM female thread in nut and 24° cone face.

Connection: MM female thread and 24° cone face (DIN2353).

Sealing: Cone face against cutting ring / cone face.
