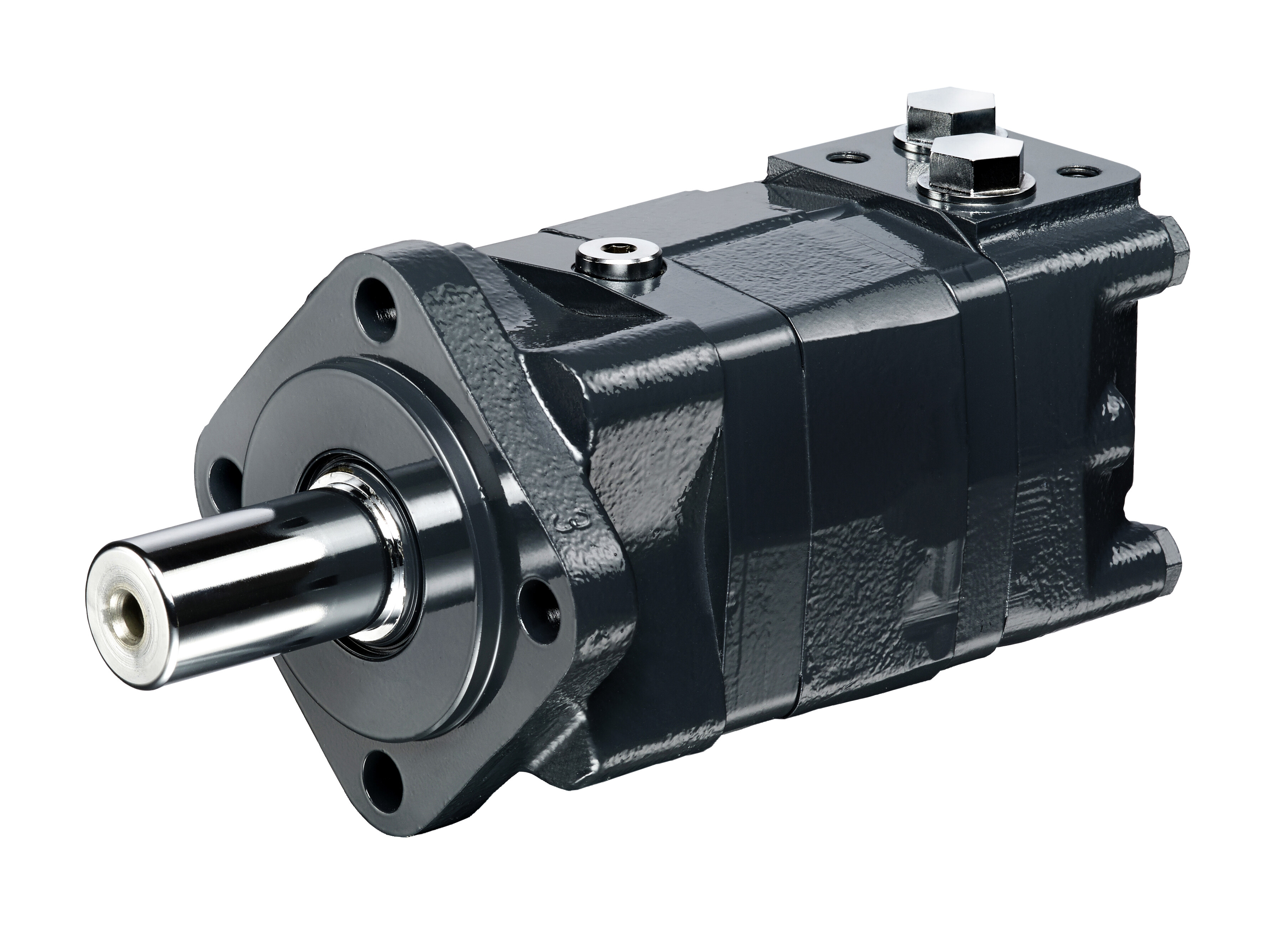

OMS 160 Orbitmotor 32mm Black - Portflange unpainted
Orbit motor for more difficult working conditions in many applications. Output shaft with tapered roller bearings provides high static and dynamic bearing capacity. Orbit set with rollers and separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressures.
Artikelnummer:
151F5103
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Brand Name
White
Continuous power max.
16.5 kW
Continuous rotation max.
470 rpm
Dimension L
181 mm
Dimension L1
27.8 mm
Dimension L2
138 mm
Dimension L3
67 mm
Displacement
159.7 cm3
Drainport
G 1/4 BSP
Holes circle
106.4 mm
Mounting flange
Square 82,5
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
210 bar
Recess
82,5 mm

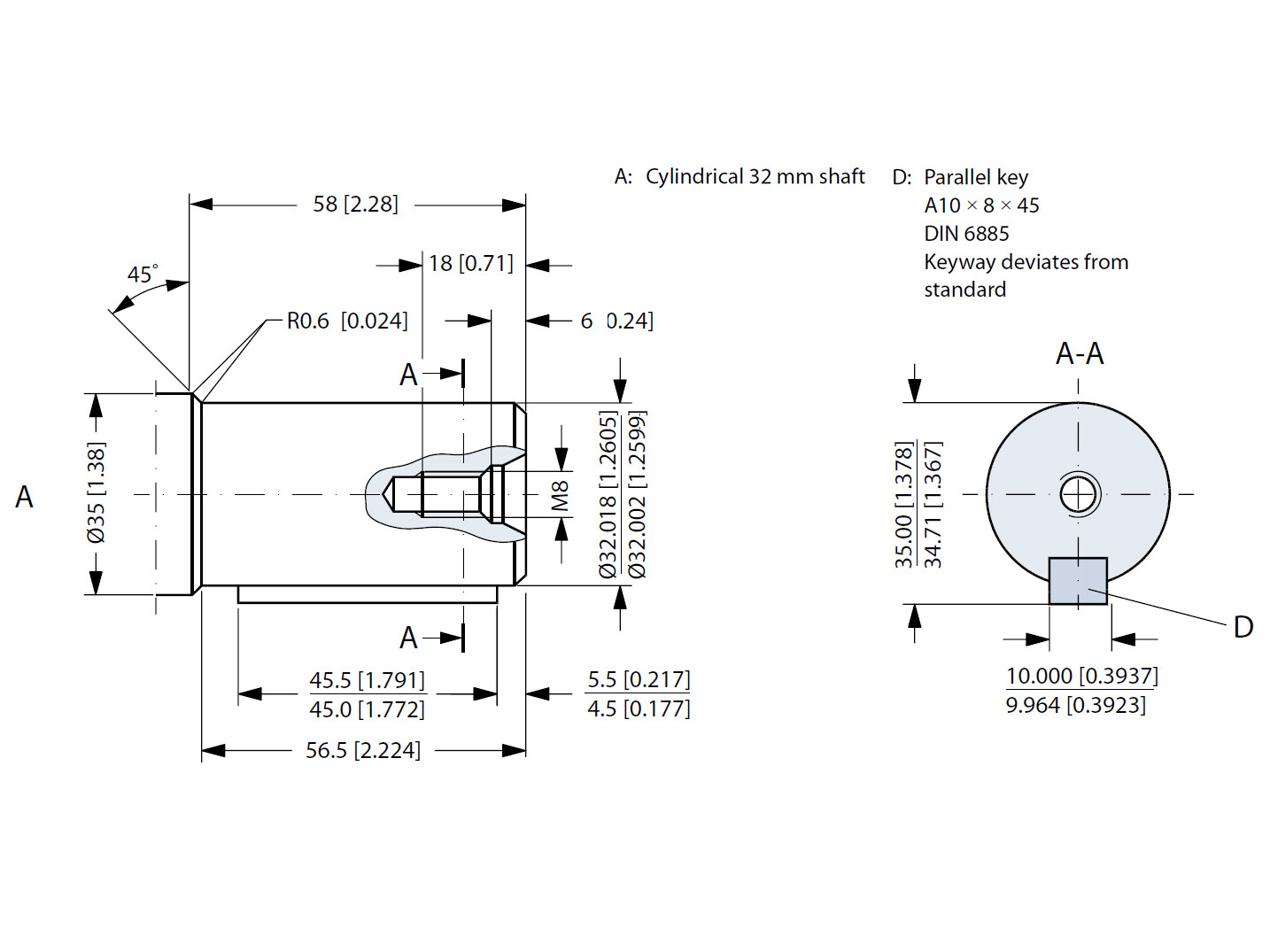

Shaft diameter
32 mm
Shaft keyway
10,0 mm
Shaft type
Cylindrical
Torque continuous max.
490 Nm
Working ports
G 1/2 BSP
Pakkauskoko
1 st
Viivakoodi
333685
Bruttopaino
11,42 Kg
Nettopaino
11,42 Kg
Alkuperämaa
Intrastat-koodi
84122981
Orbit motor for more difficult working conditions in many applications. Output shaft with tapered roller bearings provides high static and dynamic bearing capacity. Orbit set with rollers and separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressures.
