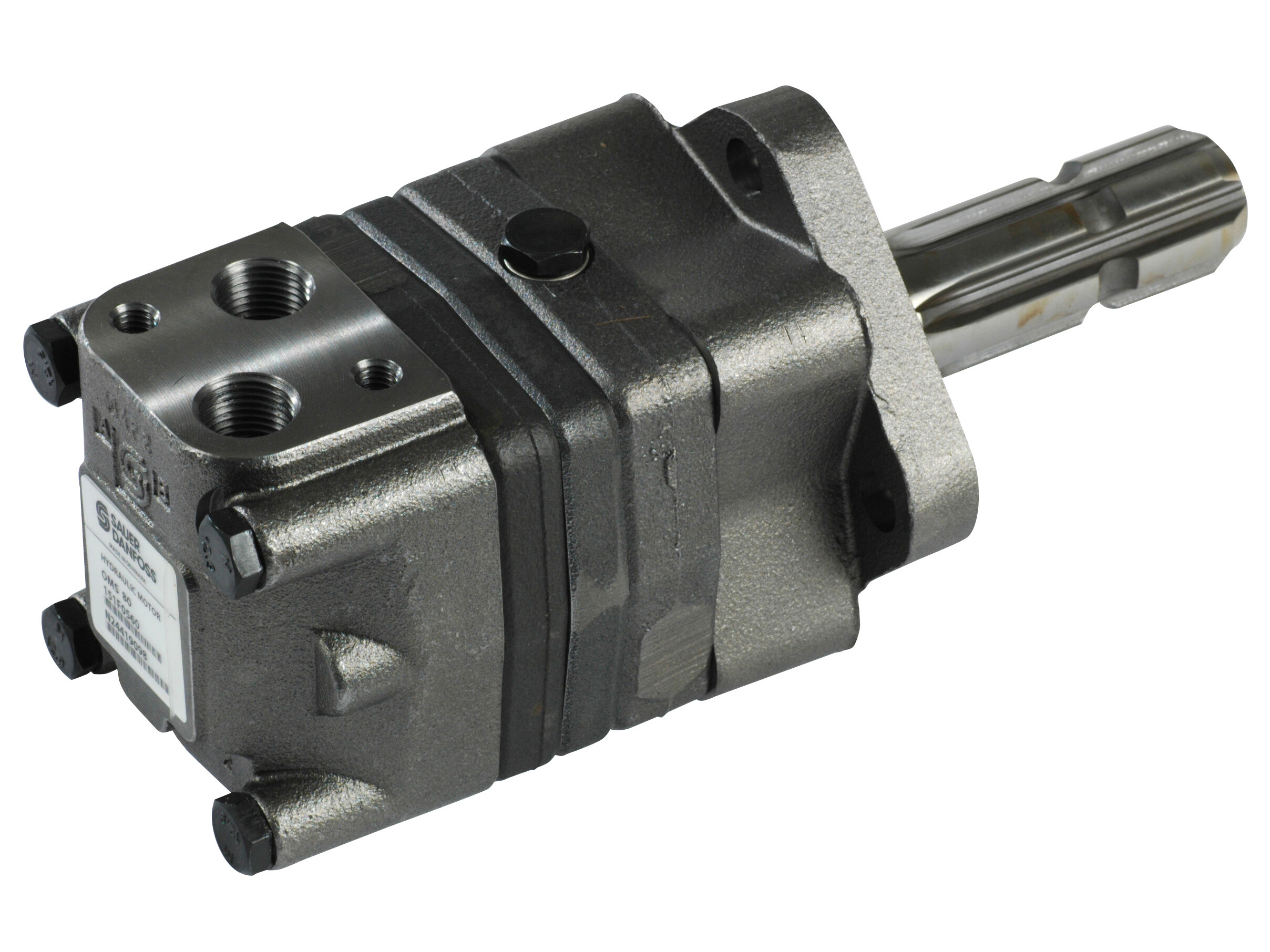

OMS 80 HYDRAULIC MOTOR Series 3
Orbital motor for more difficult working conditions in various applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit med rollers and separate integrated valve. High volumetric and mechanical motor efficiency. Long durability at high pressures.
Partnumber:
151F0560
Package size:
1 pcs
Min. order quantity is:
1 pcs
Aksel diameter
34,85 mm

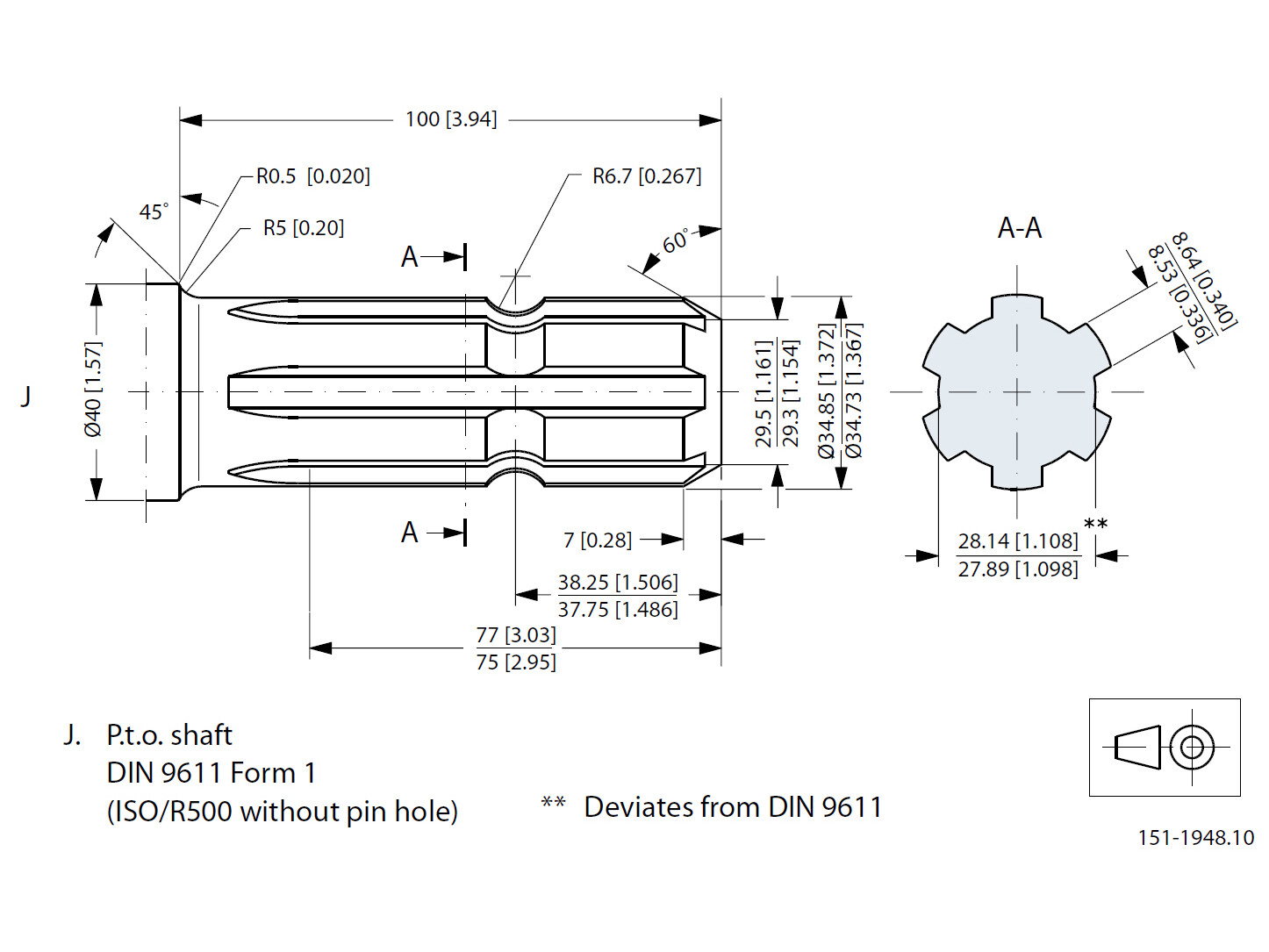

Aksel spline
1.3/8" Z6 PTO
Akseltype
PTO
Antal montage huller
4
Arbejdsporte
G 1/2 BSP
Boltcirkel
106.4 mm
C
G 1/4 BSP
D
M10
Drænport
G 1/4 BSP
E
G 1/2 BSP
Effekt maks.
15.5 kW
Fortrængning
80.5 cm3
Intermittent Effekt Maks.
19.5 kW
Intermittent Moment Maks.
310 Nm
Intermittent Rotationshastighed Maks.
1000 rpm
Kontinuerlig effekt maks.
15.5 kW
L
167 mm
L1
14 mm
L2
124 mm
L3
109 mm
Moment kontinuerlig maks.
240 Nm
Moment udgang maks.
310 Nm
Monteringsflange
Square 82,5
Mærke navn
White
Olieviskositet anbefalet
20 - 75 cSt
Portplacering
Side
Reces
82,5 mm
Rotationshastighed kontinuerligt maks.
810 rpm
Rotationshastighed maks.
810 rpm
Tryk intermitterende maks.
175 bar
Tryk kontinuerligt maks.
140 bar
Tryk spids maks.
210 bar
Trykfald kontinuerlig maks.
210 bar
Udvendigt splineantal
6
Package size
1 pcs
Barcode
333747
Gross weight
10,80 Kg
Net weight
10,80 Kg
Country of origin
Intrastat code
84122981
Orbital motor for more difficult working conditions in various applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit med rollers and separate integrated valve. High volumetric and mechanical motor efficiency. Long durability at high pressures.
