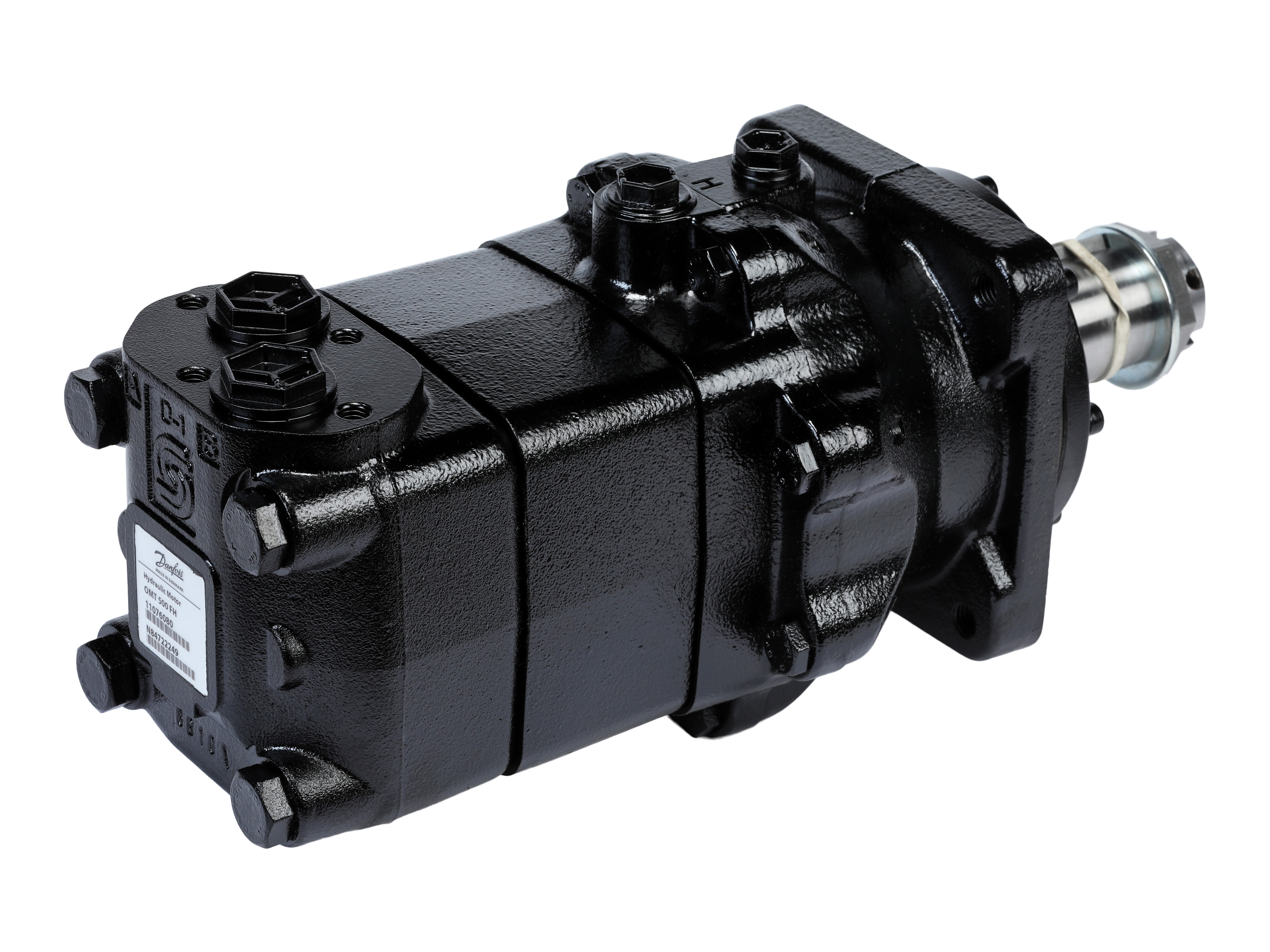

OMT 500 FH Orbitmotor Ø45mm T 1:10 Black
OMT 500 FH Orbitmotor Ø45mm T 1:10 Black
Partnumber:
11076080
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Danfoss
Contamination level max.
22/20/16 - ISO 4406
Continuous power max.
26.5 kW
Continuous rotation max.
240 rpm

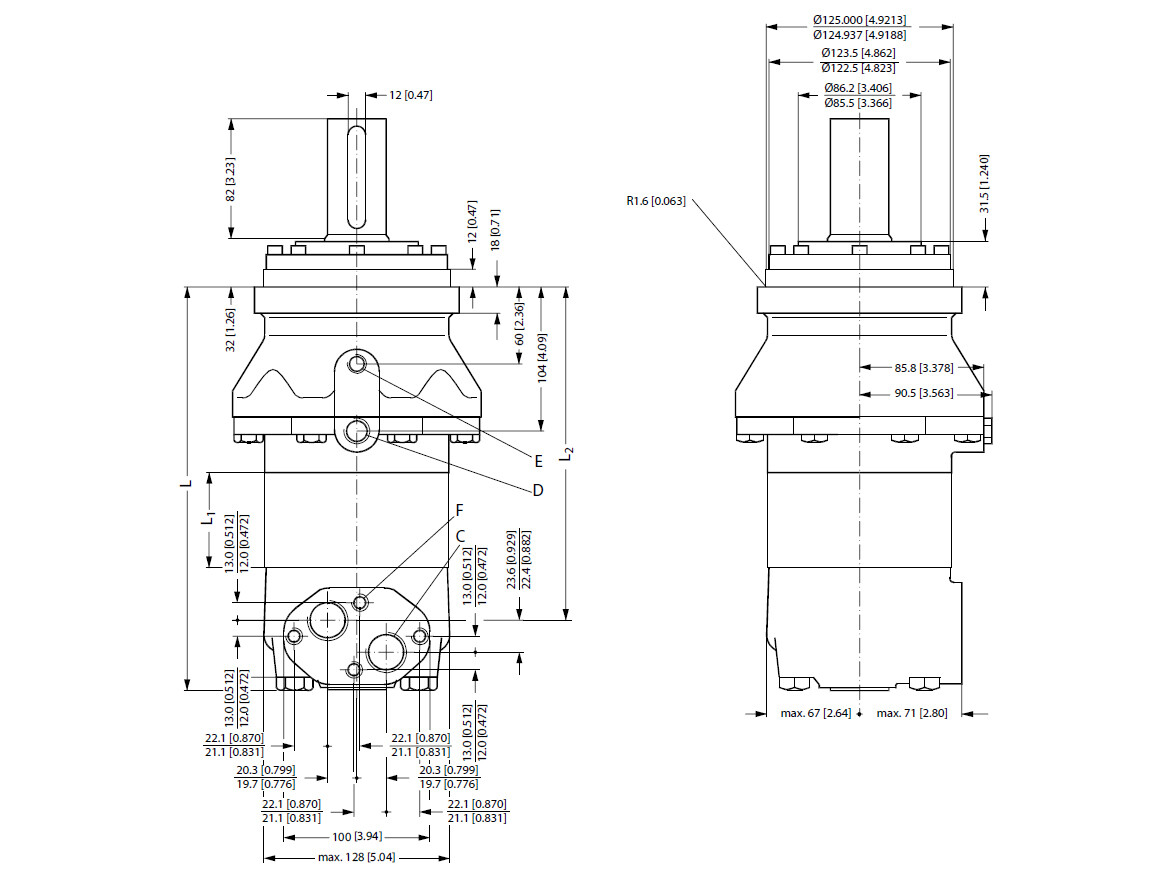

Dimension L
235 mm
Dimension L1
61.5 mm
Dimension L2
182 mm
Dimension L3
102 mm
Displacement
523.6 cm3
Drainport
G 3/8 BSP

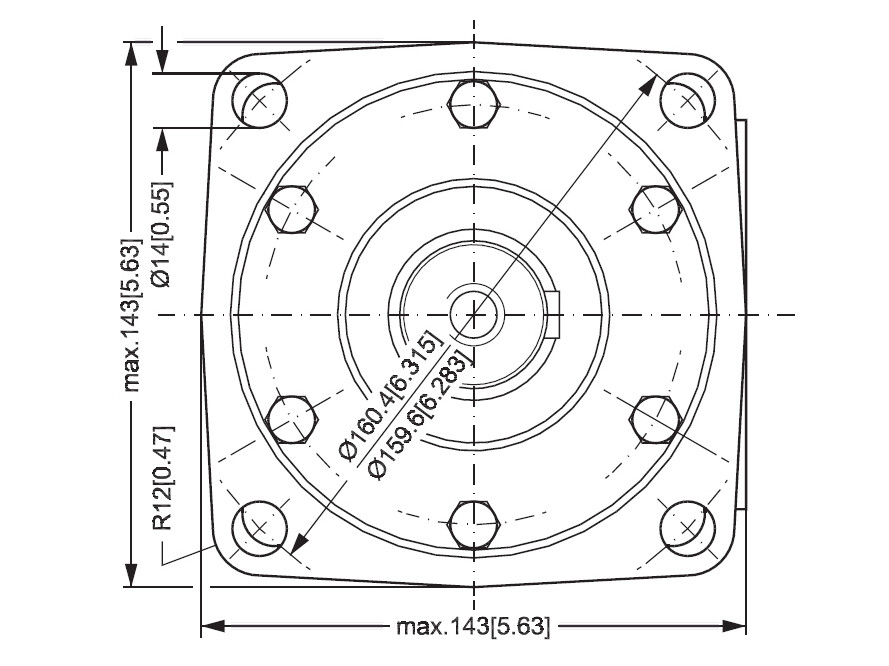

Holes circle
160 mm
Mounting flange
Square 125
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
160 bar
Recess
125,0 mm
Shaft cone
1:10
Shaft keyway
12,0 mm
Shaft type
Tapered
Temperature ambient max.
+90 °C
Temperature ambient min.
-30 °C
Torque continuous max.
1220 Nm
Working ports
G 3/4 BSP
Package size
1 st
Barcode
345891
Gross weight
37,51 Kg
Net weight
37,51 Kg
Country of origin
Intrastat code
84122981
OMT 500 FH Orbitmotor Ø45mm T 1:10 Black
