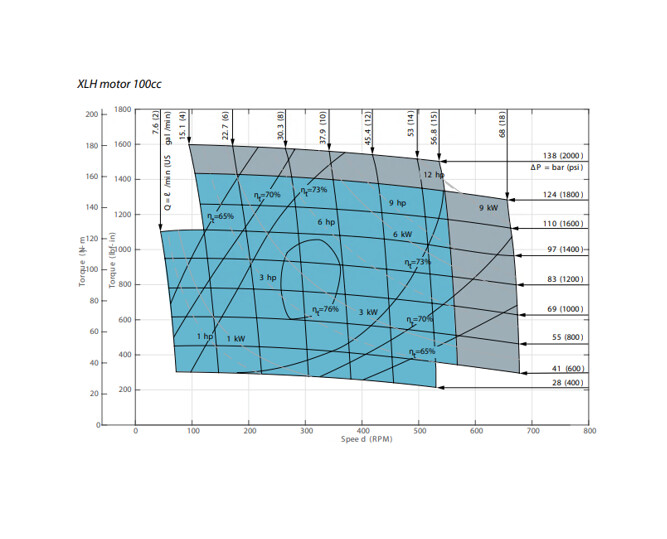

XLH 100 Ø25mm SAE-A HPS

The Danfoss XLH series is designed for medium-duty applications requiring reliable low speed and high torque. Built on the proven orbital motor principle with spool valve distribution and hydrodynamic journal bearings, these motors deliver robust performance, long service life, and a compact footprint. With SAE-A2 flange mounting, high-pressure shaft seals, and a choice of cylindrical or splined shafts, XLH motors are well suited for a wide range of mobile and industrial machinery.

Key Advantages

  • Reliable performance at low speeds
  • Compact and robust construction
  • Constant torque in both rotational directions
  • Hydrodynamic journal bearings for long life
  • High-pressure shaft seal as standard
  • Displacement range: 80 to 400 cm³
  • Max. continuous torque up to 426 Nm
  • Max. intermittent torque up to 547 Nm
  • Continuous speed capability up to 462 RPM (depending on model)

Typical Applications

  • Aerial work platforms and lifts
  • Augers, sweepers, and mixers
  • Conveyors and material handling systems
  • Agricultural machinery and implements
  • Turf care and landscaping equipment
  • Winches, auxiliary drives, and feeders

Technical Highlights

  • Inlet pressure up to 150 bar
  • Recommended oil viscosity: 20–32 cSt
  • Operating temperature: –30 to +82 °C
  • Filtration: ISO 4406: 20/18/13
  • Port threads: G 1/2 (pressure), G 1/4 (drain)
  • Mounting flange: 2-bolt oval A2 flange (Ø82.5 mm pilot, 106.4 mm bolt circle)
  • Shaft types: Cylindrical Ø25 mm (torque rating 340 Nm) or SAE 6B spline (torque rating 400 Nm)
  • Seal type: High-pressure shaft seal (HPS)

Note: For continuous or high-pressure duty, external case drain lines are recommended to ensure low case pressure and extend shaft seal life. Always verify the correct shaft and seal configuration using the full model code.

Artikelnummer:
016-0546-003

Förpackningsstorlek:
1 st

Minsta beställningskvantitet:
1 st
Aksel diameter
25 mm

Akseltype
Cyl. Ø 25 mm (10)

Akseltætningstype
High pressure packing

Antal montage huller
2

Arbejdsporte
G 1/2 BSP

Boltcirkel
106.4 mm

Dimension H
150 mm

Drænport
G 1/4 BSP

Filtreringskrav
ISO cleanliness code 4406:20/18/13

Flangens Styrediameter
82.5 mm

Fortrængning
100 cm3

Forureningsgrad maks.
20/18/13 - ISO 4406

Indgangstryk Maks.
150 bar

Integreret Kontraventil
Nej

Intermittent Flow Maks.
68

Intermittent MomentMaks.
181 Nm

Intermittent Rotationshastighed Maks.
678

Kontinuerligt Flow Maks.
68

Længde
150 mm

Maks. driftstemperatur
82 °C

Maks. moment på aksel
340 Nm

Maling
Black

Model kode
MCH100AA10AA110020A000C00C

Moment kontinuerlig maks.
162 Nm

Monteringsflange
SAE-A2

Mærke navn
Danfoss

Olieviskositet anbefalet
20 - 32 cSt

Portplacering
Side

Reces
82,55 mm

Rotationshastighed kontinuerligt maks.
568 rpm

Temperatur maks.
+180 °C

Temperatur min.
-30 °C

Tryk intermitterende maks.
138 bar

Tryk kontinuerligt maks.
124 bar
Förpackningsstorlek
1 st

Streckkod
469863

Bruttovikt
Kg

Nettovikt
Kg

Ursprungsland
CHN

Intrastat artikelkod
84122981

The Danfoss XLH series is designed for medium-duty applications requiring reliable low speed and high torque. Built on the proven orbital motor principle with spool valve distribution and hydrodynamic journal bearings, these motors deliver robust performance, long service life, and a compact footprint. With SAE-A2 flange mounting, high-pressure shaft seals, and a choice of cylindrical or splined shafts, XLH motors are well suited for a wide range of mobile and industrial machinery.

Key Advantages

  • Reliable performance at low speeds
  • Compact and robust construction
  • Constant torque in both rotational directions
  • Hydrodynamic journal bearings for long life
  • High-pressure shaft seal as standard
  • Displacement range: 80 to 400 cm³
  • Max. continuous torque up to 426 Nm
  • Max. intermittent torque up to 547 Nm
  • Continuous speed capability up to 462 RPM (depending on model)

Typical Applications

  • Aerial work platforms and lifts
  • Augers, sweepers, and mixers
  • Conveyors and material handling systems
  • Agricultural machinery and implements
  • Turf care and landscaping equipment
  • Winches, auxiliary drives, and feeders

Technical Highlights

  • Inlet pressure up to 150 bar
  • Recommended oil viscosity: 20–32 cSt
  • Operating temperature: –30 to +82 °C
  • Filtration: ISO 4406: 20/18/13
  • Port threads: G 1/2 (pressure), G 1/4 (drain)
  • Mounting flange: 2-bolt oval A2 flange (Ø82.5 mm pilot, 106.4 mm bolt circle)
  • Shaft types: Cylindrical Ø25 mm (torque rating 340 Nm) or SAE 6B spline (torque rating 400 Nm)
  • Seal type: High-pressure shaft seal (HPS)

Note: For continuous or high-pressure duty, external case drain lines are recommended to ensure low case pressure and extend shaft seal life. Always verify the correct shaft and seal configuration using the full model code.
