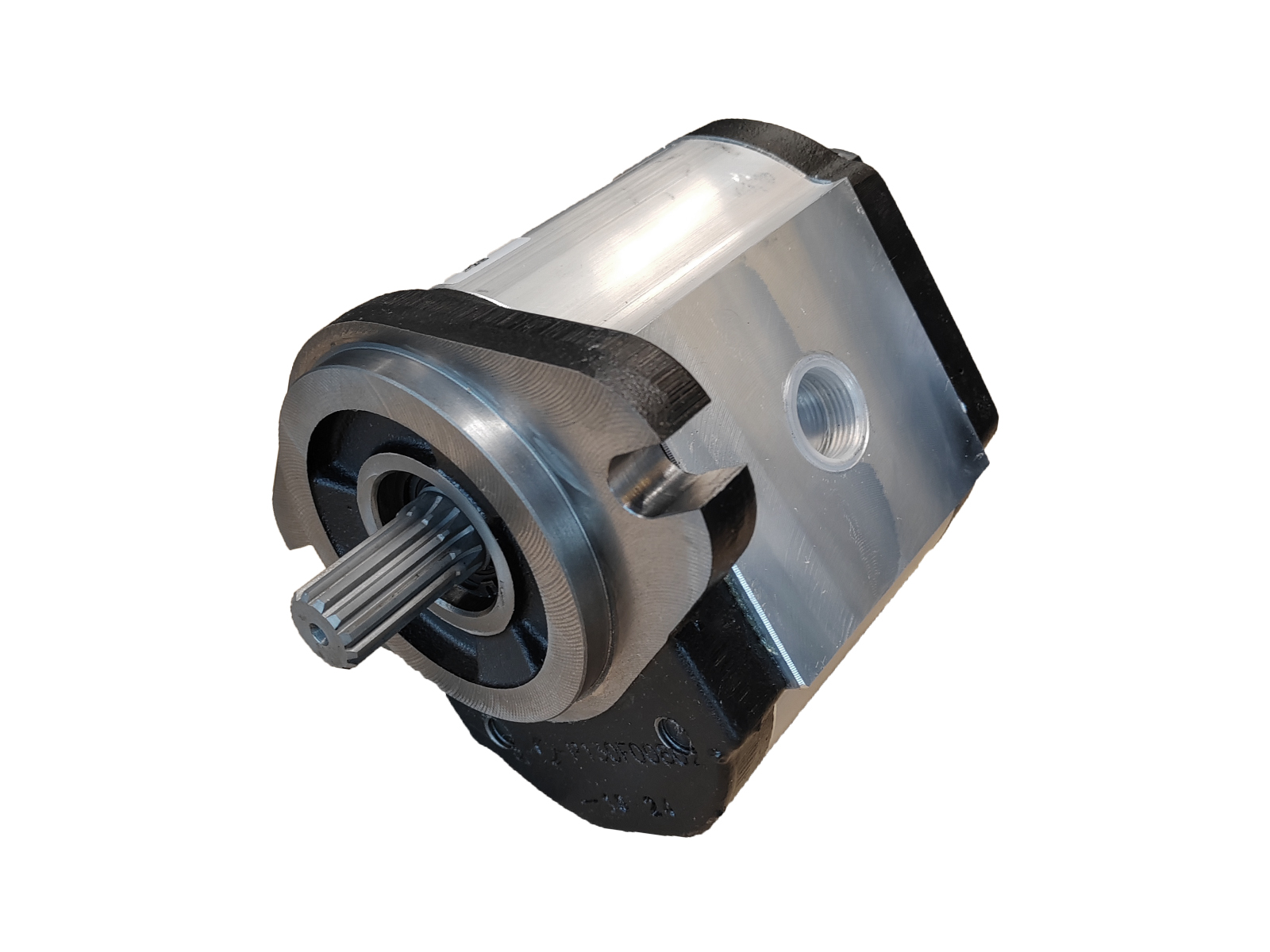

Gear pumps 3 series Hydreco SAE-B flange 13T G-thread

Gear pumps 3 series Hydreco SAE-B flange 13T G-thread

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Pressure continous max. Rotational speed max. Rotation direction
HYPA3C22B13TB4/3S1NS Gear pump Gr3 22.0 cm³/r SAE B 2 bolt 13T Ports R1”-R3/4” 22 cm3 250 bar 3000 rpm Right (CW)
HYPA3C27B13TB4/3S1NS Gear pump Gr3 27.0 cm³/r SAE B 2 bolt 13T Ports R1”-R3/4” 27 cm3 250 bar 3000 rpm Right (CW)
HYPA3C33B13TB4/3S1NS Gear pump Gr3 33.0 cm³/r SAE B 2 bolt 13T Ports R1”-R3/4” 33 cm3 240 bar 3000 rpm Right (CW)
HYPA3C39B13TB4/3S1NS Gear pump Gr3 39.0 cm³/r SAE B 2 bolt 13T Ports R1”-R3/4” 39 cm3 240 bar 3000 rpm Right (CW)
HYPA3C44B13TB4/3S1NS Gear pump Gr3 44.0 cm³/r SAE B 2 bolt 13T Ports R1”-R3/4” 44 cm3 230 bar 3000 rpm Right (CW)
HYPA3C52B13TB4/3S1NS Gear pump Gr3 52.0 cm³/r SAE B 2 bolt 13T Ports R1”-R3/4” 52 cm3 210 bar 2500 rpm Right (CW)
HYPA3C61B13TB5/4S1NS Gear pump Gr3 61.0 cm³/r SAE B 2 bolt 13T Ports R1”-R3/4” 61 cm3 190 bar 2500 rpm Right (CW)
Brand Name
Hydreco
Contamination level max.
19/17/14 - ISO 4406
Holes circle
14.5
Material
Aluminium
Mounting flange
SAE-B2
Number of mounting holes
2
Number of outer grooves
13
Oil viscocity recommended
10 - 750
Pump group
3
Recess
101,6
Rotation direction
Right (CW)
Rotational speed min.
500
Shaft diameter
21,8
Shaft spline
13T 16/32 SAE-B
Shaft type
Spline
Temperature max.
+80
Temperature min.
-25
Temperature working fluid max.
+80
