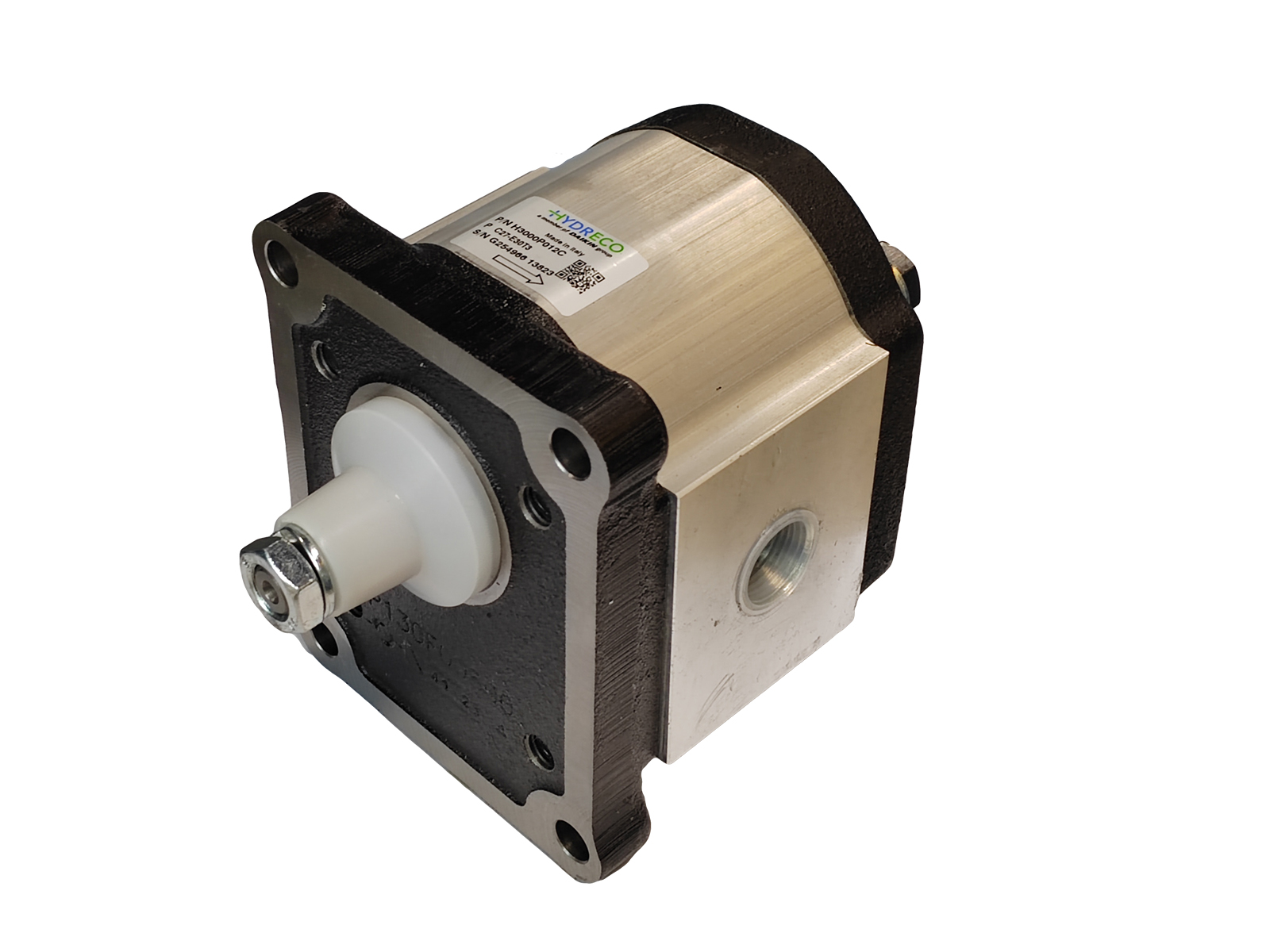

Gear pumps 3 series Hydreco EU flange 1:8 G-thread

Gear pumps 3 series Hydreco EU flange 1:8 G-thread

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Pressure continous max. Rotational speed max. Rotation direction
HYPA3C22E30T3B4/3S1NS Gear pump Grp 3/22.0 cm³/r 22 cm3 250 bar 3000 rpm Right (CW)
HYPA3C27E30T3B4/3S1NS Gear pump Grp 3/27.0 cm³/r 27 cm3 250 bar 3000 rpm Right (CW)
HYPA3C33E30T3B4/3S1NS Gear pump Grp 3/33.0 cm³/r 33 cm3 240 bar 3000 rpm Right (CW)
HYPA3C39E30T3B4/3S1NS Gear pump Grp 3/39.0 cm³/r 39 cm3 240 bar 3000 rpm Right (CW)
HYPA3C44E30T3B4/3S1NS Gear pump Grp 3/44.0 cm³/r 44 cm3 230 bar 3000 rpm Right (CW)
HYPA3C48E30T3B4/3S1NS Gear pump Grp 3/48.0 cm³/r 48 cm3 210 bar 2500 rpm Right (CW)
HYPA3C52E30T3B4/3S1NS Gear pump Grp 3/52.0 cm³/r 52 cm3 210 bar 2500 rpm Right (CW)
HYPA3C61E30T3B5/4S1NS Gear pump Grp 3/61.0 cm³/r 61 cm3 190 bar 2500 rpm Right (CW)
Brand Name
Hydreco
Contamination level max.
19/17/14 - ISO 4406
Holes circle
11
Material
Aluminium
Mounting flange
EU51 - 128x98
Number of mounting holes
4
Oil viscocity recommended
10 - 750
Pump group
3
Recess
51,0
Rotation direction
Right (CW)
Rotational speed min.
500
Shaft cone
1:8
Shaft keyway
4,0
Shaft type
Tapered
Temperature max.
+80
Temperature min.
-25
Temperature working fluid max.
+80
