NG06 pressure relief valves Atos HM

NG06 pressure relief valves Atos HM

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure setting min. Pressure setting max.
HM-011/100 Cetop3 pressure relief valve P 5-100 bar 5 bar 100 bar
HM-011/210 Cetop3 pressure relief valve P->T 5-210 bar 5 bar 210 bar
HM-011/350 Cetop3 pressure relief valve P 5-350 bar 5 bar 350 bar
HM-012/100 Cetop3 pressure relief valve A 5-100 bar 5 bar 100 bar
HM-012/210 Cetop3 pressure relief valve A 5-210 bar 5 bar 210 bar
HM-012/350 Cetop3 pressure relief valve A 5-350 bar 5 bar 350 bar
HM-013/100 Cetop3 pressure relief valve A 5-100 bar 5 bar 100 bar
HM-013/210 Cetop3 pressure relief valve A 5-210 bar 5 bar 210 bar
HM-013/350 Cetop3 pressure relief valve A 5-350 bar 5 bar 350 bar

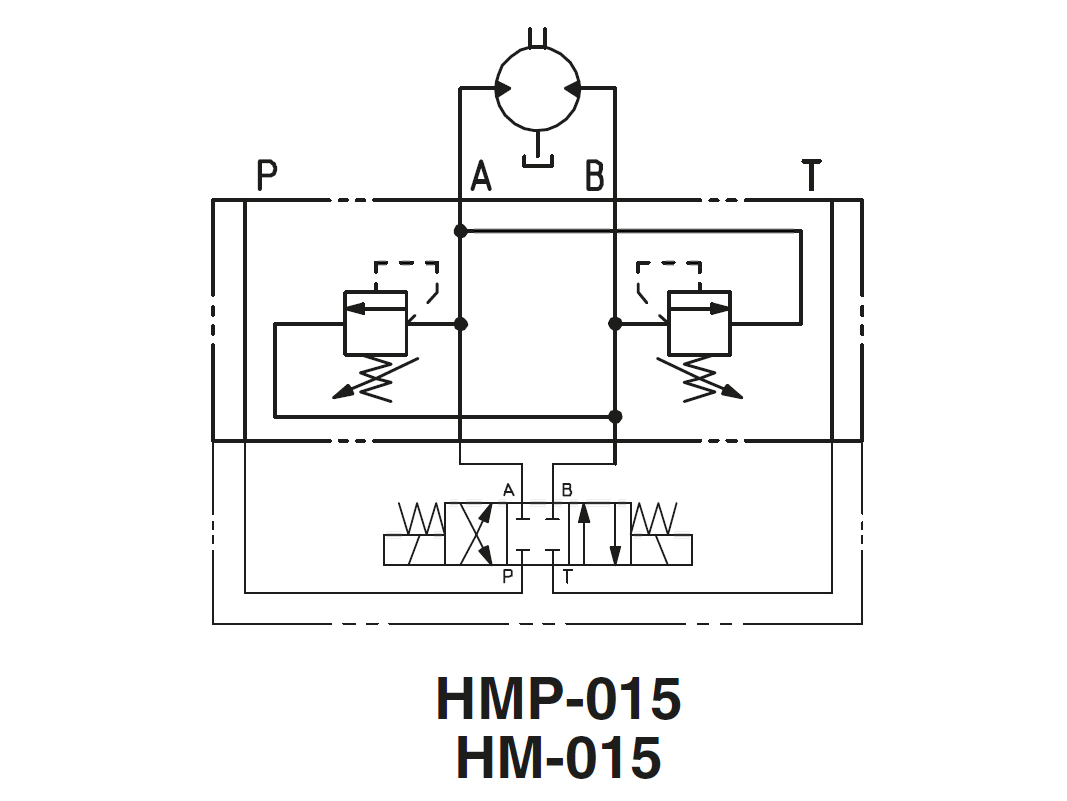

HM-015/210 Cetop3 pressure relief valve A 5-210 bar 5 bar 210 bar
Brand Name
Atos
Contamination level max.
20/18/15 - ISO 4406
Flow rate nominal LMin
60
NG ISO-size
NG06
Oil viscocity recommended
15 - 100
Pressure max.
350
Pressure setting min.
5
Standard ISO
ISO 4401
Temperature max.
+80
Temperature min.
-20
Valve type
Pressure relief valve
